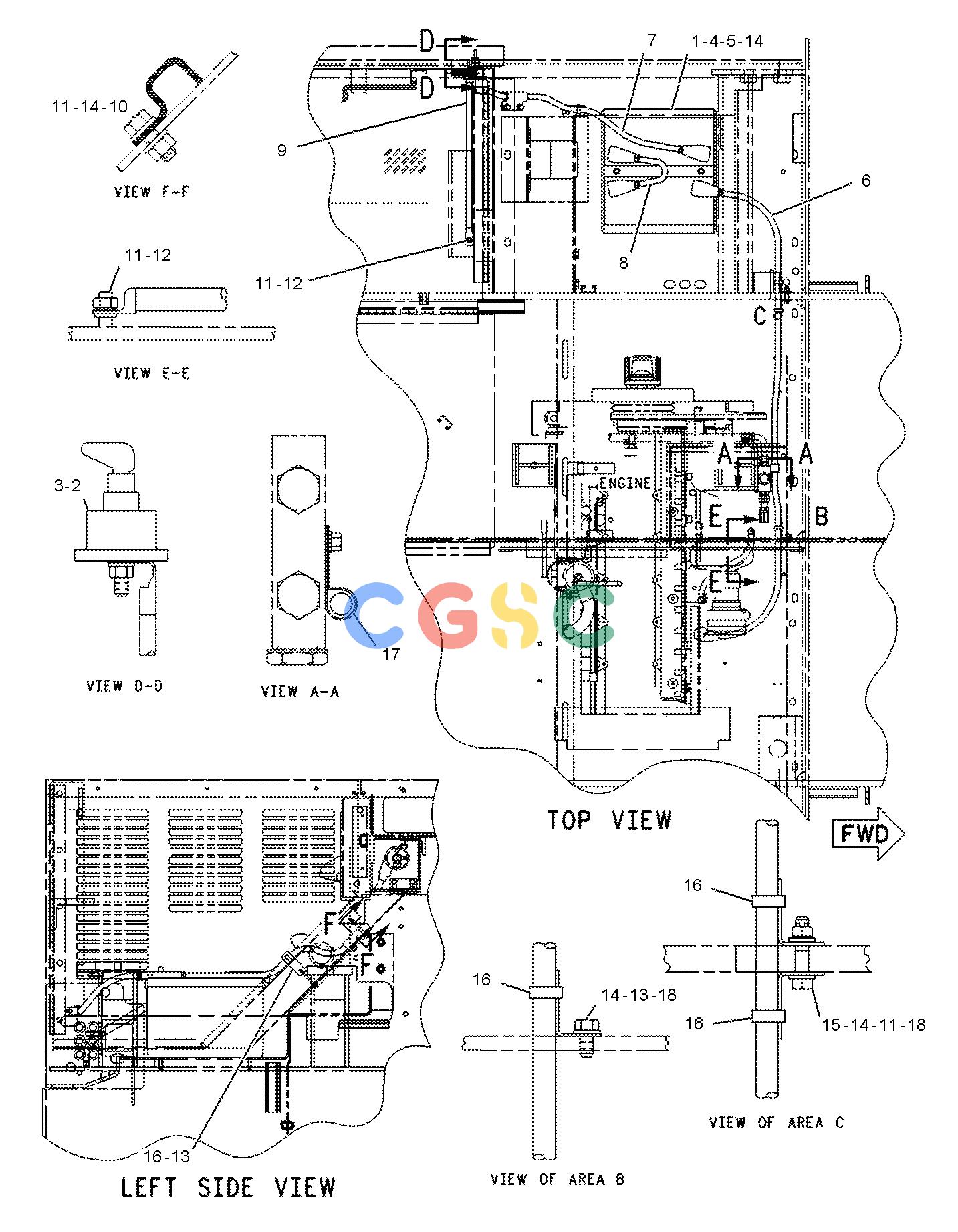

| 1. | 115-2421 | [2] | BATTERY GP(12-VOLT, MAINTENANCE FREE, DRY) | |
| 2. | 7N-0718Y | [1] | SWITCH GP-DISCONNECT(BATTERY) | |
| 3. | 3E-8320 | [1] | PLATE-INSTRUCTION(BATTERY) | |
| 4. | 108-6258 | [1] | BRACKET AS-BATTERY | |
| 5. | 7L-7524 | [2] | BOLT(3/8-16X10.25-IN) | |
| 6. | 130-9158 | [1] | CABLE AS | |
| | 1S-2244 | [2] | BOOT | |
| | 1S-4915 | [2] | LINER(CONDUIT) | |
| | 1S-7251 | [1] | TERMINAL-CABLE(00-GA, 1/2-IN SCREW) | |
| | 3S-2093 | [2] | STRAP-CABLE | |
| | 5P-0695E | | CONDUIT(155 CM) | |
| | 5P-0761E | | CABLE(00-GA, RED)(00 GA 168 CM) | |
| | 8N-0869 | [1] | COVER-TERMINAL(RED) | |
| | 8N-1725 | [1] | COVER AS-TERMINAL(RED) | |
| | 9W-3460 | [1] | TERMINAL AS-BATTERY(POSITIVE) | |
| | 1M-6119 | [1] | BOLT(5/16-18X1.375-IN) | |
| | 1M-6120 | [1] | NUT(5/16-18-THD) | |
| 7. | 130-9159 | [1] | CABLE AS | |
| | 5P-0746E | | CABLE(0-GA, BLACK)(93 CM) | |
| | 7N-5274 | [1] | COVER AS-TERMINAL(BLACK) | |
| | 9G-8909 | [1] | COVER-TERMINAL(BLACK) | |
| | 9W-3962 | [1] | TERMINAL AS(NEGATIVE) | |
| | 1M-6119 | [1] | BOLT(5/16-18X1.375-IN) | |
| | 1M-6119 | [1] | BOLT(5/16-18X1.375-IN) | |
| | 1M-6120 | [1] | NUT(5/16-18-THD) | |
| | 1M-6120 | [1] | NUT(5/16-18-THD) | |
| | 030-1707 | [1] | TERMINAL-RING(0-GA, 3/8-IN SCREW) | |
| 8. | 117-1838 | [1] | CABLE AS | |
| | 5P-0760E | | CABLE(0-GA, RED)(20 CM) | |
| | 7N-5274 | [1] | COVER AS-TERMINAL(BLACK) | |
| | 8N-1725 | [1] | COVER AS-TERMINAL(RED) | |
| | 9W-3961 | [1] | TERMINAL AS(POS) | |
| | 1M-6119 | [1] | BOLT(5/16-18X1.375-IN) | |
| | 1M-6120 | [1] | NUT(5/16-18-THD) | |
| | 9W-3962 | [1] | TERMINAL AS(NEGATIVE) | |
| 9. | 114-6437 | [1] | CABLE AS | |
| | 5P-0746E | | CABLE(0-GA, BLACK)(19 CM) | |
| | 9X-0195 | [1] | TERMINAL-RING(0-GA, 3/8-IN SCREW) | |
| | 030-1707 | [1] | TERMINAL-RING(0-GA, 3/8-IN SCREW) | |
| 10. | 4L-6454 | [2] | BOLT(3/8-16X1-IN) | |
| 11. | 6V-8801 | [5] | NUT(3/8-16-THD) | |
| 12. | 4D-1326 | [2] | LOCKWASHER(EXTERNAL TOOTH) | |
| 13. | 5M-3062 | [1] | BOLT(3/8-16X0.75-IN) | |
| 14. | 8T-4896 | [9] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 15. | 5S-7383 | [1] | BOLT(3/8-16X1.75-IN) | |
| 16. | 7K-1181 | [4] | STRAP-CABLE | |
| 17. | 8S-0948 | [1] | CLIP | |
| 18. | 132-5789 | [3] | CLIP | |
| | E | | ORDER BY THE CENTIMETER |
| | Y | | SEPARATE ILLUSTRATION |
