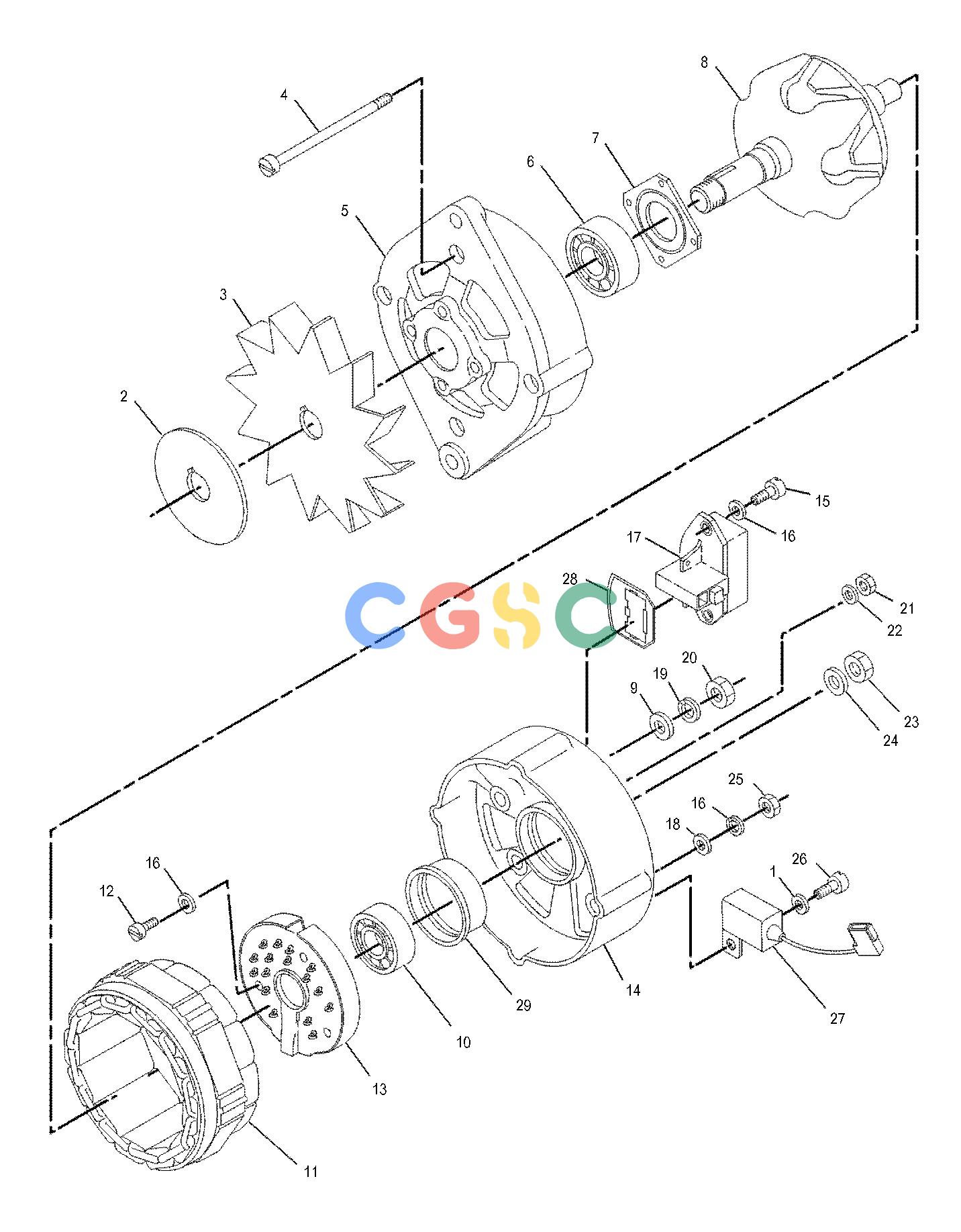

| 1. | 8F-1434 | [2] | LOCKWASHER | |
| 2. | 8C-6141 | [1] | PLATE-SUPPORT | |
| 3. | 9W-1904 | [1] | FAN(12-BLADE) | |
| 4. | 9W-1901M | [4] | SCREW(M5X0.8X96-MM) | |
| 5. | 8C-6149 | [1] | FRAME AS | |
| 6. | 2P-8099 | [1] | BALL BEARING | |
| 7. | 9W-1794 | [1] | COVER | |
| 8. | 8C-6146 | [1] | ROTOR | |
| 9. | 1H-3244 | [1] | LOCKWASHER | |
| 10. | 9W-1793 | [1] | BEARING | |
| 11. | 8C-6147 | [1] | STATOR | |
| 12. | 6V-9492M | [2] | SCREW-MACHINE(M4X0.7X25-MM) | |
| 13. | 8C-6144 | [1] | RECTIFIER | |
| 14. | 8C-6148 | [1] | FRAME AS | |
| 15. | 6V-5210M | [2] | SCREW-MACHINE(M4X0.7X10-MM) | |
| 16. | 096-6166 | [5] | WASHER-HARD(4.5X9X1-MM THK) | |
| 17. | 105-2063 | [1] | REGULATOR AS-ALTERNATOR(24-VOLT) | |
| 18. | 9B-7233 | [1] | LOCKWASHER | |
| 19. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 20. | 5C-2890M | [2] | NUT(M6X1-THD) | |
| 21. | 5C-2874M | [1] | NUT(M5X0.8-THD) | |
| 22. | 8T-0328 | [1] | WASHER-HARD(5.5X10X1-MM THK) | |
| 23. | 5C-7261M | [1] | NUT(M8X1.25-THD) | |
| 24. | 8T-4224 | [1] | WASHER-HARD(8.8X16X2-MM THK) | |
| 25. | 5C-8312M | [1] | NUT(M4X0.7-THD) | |
| 26. | 6V-9673M | [1] | SCREW-MACHINE(M5X0.8X12-MM) | |
| 27. | 9W-1900 | [1] | CAPACITOR | |
| 28. | 8C-6143 | [1] | GASKET | |
| 29. | 8C-6142 | [1] | RING-FITTING | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 9W-1912 | [1] | KIT-HARDWARE(ALTERNATOR AIR) | |
| | | | (INCLUDES SPACERS, LOCKWASHERS, NUTS, SCREWS & KEY) |
| | 8C-6150 | [1] | KIT-TERMINAL(ALTERNATOR AIR) | |
| | | | (INCLUDES NUTS, WASHERS, INSULATORS, BUSHING, STUD & CAP) |
| | M | | METRIC PART |
