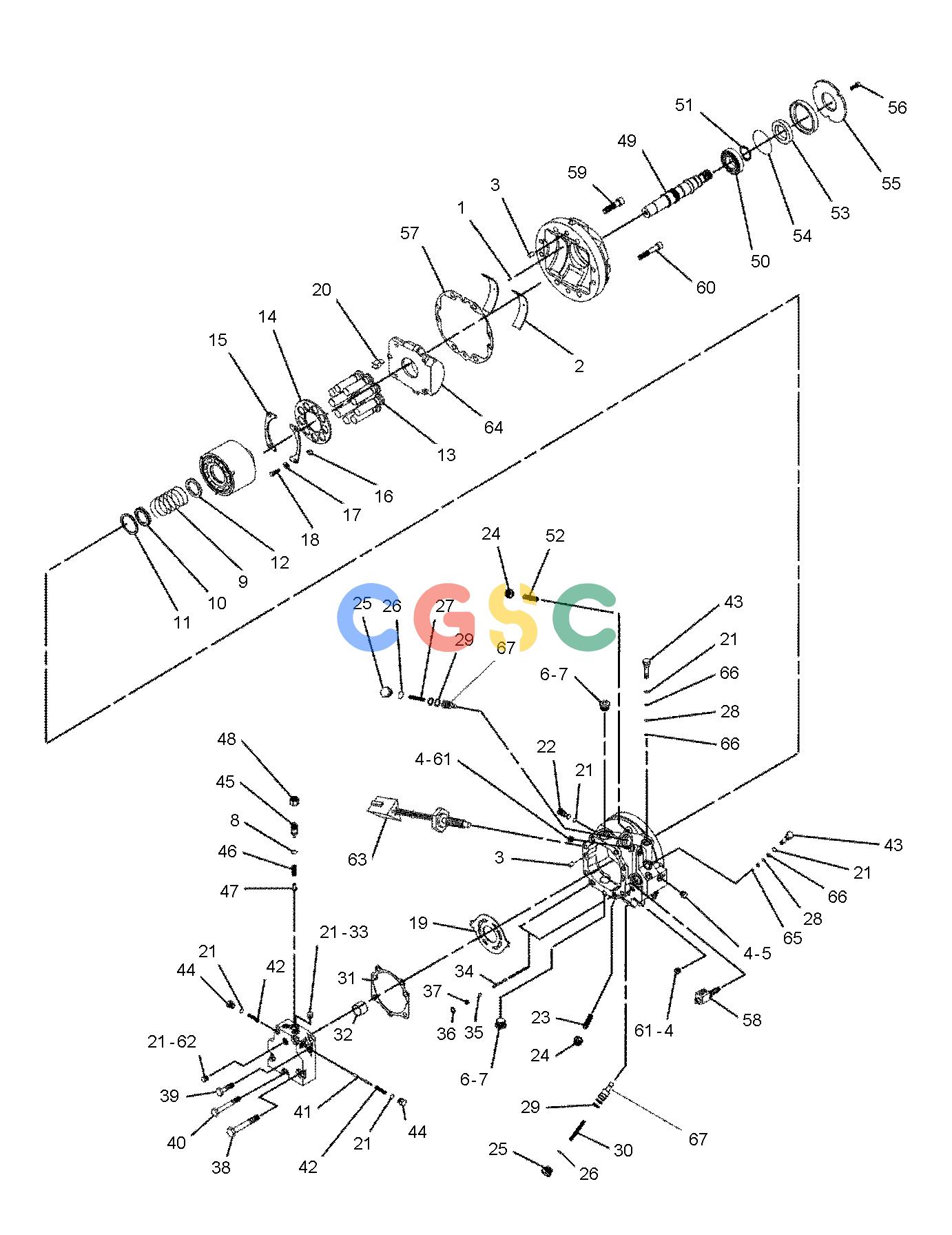

| 1. | 1G-8425 | [2] | PIN | |
| 2. | 109-7783 | [2] | BEARING | |
| 3. | 077-8353 | [4] | PIN(SPRING) | |
| 4. | 3J-7354 | [7] | SEAL-O-RING | |
| 5. | 9S-4182 | [5] | PLUG(7/16-20-THD) | |
| 6. | 2M-9780 | [2] | SEAL-O-RING | |
| 7. | 9S-8006 | [2] | PLUG(7/8-14-THD) | |
| 8. | 033-6027 | [1] | SEAL-O-RING | |
| 9. | 5E-8704H | [1] | SPRING | |
| 10. | 5E-8713H | [1] | RETAINER | |
| 11. | 5E-8778H | [1] | RING | |
| 12. | 5E-8703H | [1] | SPRING-SEAT | |
| 13. | 109-7784 | [9] | PISTON | |
| 14. | 5E-8702 | [1] | GUIDE | |
| 15. | 7R-4227 | [2] | GUIDE-BEARING | |
| 16. | 109-7785 | [4] | SPACER | |
| 17. | 1G-8427 | [4] | WASHER | |
| 18. | 5E-8784M | [4] | BOLT(M6X1X20-MM) | |
| 19. | 109-7786 | [1] | PLATE-MOTOR VALVE | |
| 20. | 1G-8428 | [1] | ARM-HOLD-DOWN | |
| 21. | 3J-1907 | [8] | SEAL-O-RING | |
| 22. | 1G-8429 | [1] | PIN-HOLD-DOWN | |
| 23. | 1G-8432 | [1] | SETSCREW | |
| 24. | 3E-9851M | [2] | NUT-SEALING(M12X1.75-THD) | |
| 25. | 1G-8433 | [2] | PLUG | |
| 26. | 9X-7712 | [2] | SEAL-O-RING | |
| 27. | 1G-8434 | [1] | SPRING | |
| 28. | 6V-5586 | [2] | SEAL-O-RING | |
| 29. | 1G-8436J | [4] | RING-PISTON SEAL | |
| 30. | 1G-8437 | [1] | SPRING | |
| 31. | 109-7788 | [1] | GASKET | |
| 32. | 5E-8744 | [1] | BEARING | |
| 33. | 9S-4191 | [2] | PLUG(9/16-18-THD) | |
| 34. | 1G-8439 | [2] | PIN-SPRING | |
| 35. | 1G-8440 | [2] | BALL | |
| 36. | 121-2548 | [2] | RING | |
| 37. | 1G-8442 | [2] | ORIFICE | |
| 38. | 8T-4648M | [4] | BOLT(M12X1.75X70-MM) | |
| 39. | 8T-4956M | [2] | BOLT(M12X1.75X35-MM) | |
| 40. | 8T-6870M | [1] | BOLT(M8X1.25X70-MM) | |
| 41. | 1G-5735 | [1] | SPOOL | |
| 42. | 211-4401 | [2] | SEAT | |
| 43. | 1G-8448 | [2] | PLUG-ORIFICE | |
| 44. | 161-6563 | [2] | PLUG-SPECIAL | |
| 45. | 161-6565 | [1] | PLUG | |
| 46. | 161-6567 | [1] | SPRING | |
| 47. | 6R-1703 | [1] | POPPET | |
| 48. | 6R-1702 | [1] | NUT-SPECIAL(7/8-14-THD) | |
| 49. | 109-8828 | [1] | SHAFT | |
| 50. | 161-6566 | [1] | BEARING-ROLLER | |
| 51. | 1J-6474 | [1] | RING-RETAINING(EXTERNAL) | |
| 52. | 8T-5395M | [1] | SETSCREW | |
| 53. | 5E-8789L | [1] | SEAL-LIP TYPE | |
| 54. | 5E-8770L | [1] | SEAL-O-RING | |
| 55. | 5E-8731 | [1] | PLATE | |
| 56. | 8T-0269M | [4] | BOLT-SOCKET HEAD(M6X1X20-MM) | |
| 57. | 109-7790 | [1] | GASKET | |
| 58. | 109-7791 | [1] | CONTROL-HYDRAULIC | |
| | | [1] | KIT-SEAL(PROPEL PISTON MOTOR) |
| 59. | 8T-2223M | [4] | BOLT-SOCKET HEAD(M10X1.5X45-MM) | |
| 60. | 8T-1160M | [4] | BOLT-SOCKET HEAD(M10X1.5X50-MM) | |
| 61. | 9S-8002 | [2] | PLUG(7/16-20-THD) | |
| 62. | 9S-8004 | [1] | PLUG(9/16-18-THD) | |
| 63. | 118-6240Y | [1] | SENSOR GP-SPEED(PROPEL) | |
| 64. | 124-7132 | [1] | SWASHPLATE | |
| 65. | 1G-8446 | [1] | SCREW-FILTER | |
| 66. | 030-6120 | [4] | RING | |
| 67. | JZ | [2] | PISTON |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 121-2514H | [1] | KIT-CYLINDER BLOCK(PROPEL PISTON MOTOR) | |
| | 1G-8435J | [2] | KIT-SERVO PISTON(PROPEL PISTON MOTOR) | |
| | 156-9684L | [1] | KIT-SHAFT SEAL(PROPEL PISTON MOTOR) | |
| | | [1] | KIT-SEAL(PROPEL PISTON MOTOR) |
| | H | | KIT MARKED H SERVICES PART(S) MARKED H |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | L | | KIT MARKED L SERVICES PART(S) MARKED L |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
| | Z | | NOT SERVICED SEPARATELY |
