Pos.	Part No	Qty	Parts name
1.	145-6122I	[1]	HOSE AS
2.	155-3624	[1]	PLUG AS
	3J-7354	[1]	SEAL-O-RING
	9S-4182	[1]	PLUG(7/16-20-THD)
3.	110-1976I	[1]	HOSE AS
4.	117-5981I	[1]	HOSE AS
5.	130-5824I	[1]	HOSE AS
6.	105-7908I	[1]	HOSE AS
7.	6V-0852	[1]	CAP-DUST
8.	6V-3965	[1]	FITTING(QUICK DISCONNECT)
9.	164-4180	[1]	PLUG AS
	7M-8485	[1]	SEAL-O-RING
	9S-4181	[1]	PLUG(1-5/16-12-THD)
10.	148-8415	[1]	REDUCER AS
	6V-8397	[1]	SEAL-O-RING
	6V-8936	[1]	REDUCER
11.	148-8324	[1]	CONNECTOR AS
	3K-0360	[1]	SEAL-O-RING
	6V-9746	[1]	SEAL-O-RING
	6V-9874	[1]	CONNECTOR(STRAIGHT)
12.	137-5939	[1]	KINGPIN
13.	148-8381	[1]	ELBOW AS
	3D-2824	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	8T-5429	[1]	ELBOW
14.	105-9058	[8]	SHIM(1.5-MM THK)
15.	034-3101	[4]	SCREW(5/16-18X1.56-IN)
16.	5P-5297	[2]	RING-RETAINING(EXTERNAL)
17.	148-8364	[1]	ELBOW AS
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8625	[1]	ELBOW
18.	9B-7237	[3]	BOLT(3/8-16X1.25-IN)
19.	148-8428	[2]	TEE AS
			(EACH INCLUDES)
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[2]	SEAL-O-RING
	6V-8782	[1]	TEE
20.	105-9066	[6]	WASHER-HARD(128.25X165X6.35-MM THK)
21.	130-5825I	[1]	HOSE AS
22.	5M-3062	[2]	BOLT(3/8-16X0.75-IN)
23.	130-5823I	[1]	HOSE AS
24.	105-9059B	[8]	SHIM(0.51-MM THK)
25.	8X-6172I	[1]	HOSE AS
26.	148-8375	[6]	ELBOW AS
			(EACH INCLUDES)
	6V-8398	[2]	SEAL-O-RING
	6V-8981	[1]	ELBOW
27.	196-2036	[1]	TEE AS
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	9X-2492	[1]	TEE-O-RING
28.	6V-9169	[12]	NUT(13/16-16-THD)
29.	137-5943	[2]	TUBE AS
30.	137-5942	[2]	TUBE AS
31.	137-5941	[2]	TUBE AS
32.	4P-7581	[1]	CLIP(LADDER)
33.	154-7279I	[4]	HOSE AS
34.	148-8340	[7]	CONNECTOR AS
			(EACH INCLUDES)
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8639	[1]	CONNECTOR
35.	121-2738	[1]	SHAFT-SENSOR
36.	121-2740	[1]	PLATE AS
37.	121-2736	[1]	GUARD-SENSOR
38.	3B-8489	[10]	FITTING-GREASE(1/8-27 PTF)
39.	157-1442M	[12]	BOLT(M18X1.5X33-MM)
40.	099-7241	[12]	WASHER-HARD(19X34X3-MM THK)
41.	148-8380	[6]	ELBOW AS
			(EACH INCLUDES)
	6V-8398	[2]	SEAL-O-RING
	6V-8988	[1]	ELBOW
42.	121-2735	[1]	PLATE-LOCK
43.	104-7684	[1]	BOLT AS(1-14X6.5-IN)
44.	104-7685	[5]	BOLT AS-SPECIAL(1-14X5-IN)
45.	8T-5361	[13]	WASHER-HARD(28X49X5-MM THK)
46.	1B-4443	[6]	NUT-SLOTTED(1-14-THD)
47.	3B-4619	[6]	PIN-COTTER
48.	8I-0795	[3]	BEARING
49.	061-6915	[3]	NUT(1-1/4-12-THD)
50.	1A-4168	[4]	NUT(1-1/4-12-THD)
51.	8T-4401	[3]	BEARING
52.	5E-9375	[3]	CLAMP
53.	121-2731	[1]	SPINDLE AS
	7T-1099	[1]	LINK
54.	105-9068	[6]	CLIP-SPRING
55.	146-3290	[2]	FRAME AS-BOGIE
			(EACH INCLUDES)
	8C-3920	[2]	BEARING
56.	193-1008Y	[1]	MOTOR GP-PISTON(PROPEL, RH)
57.	1G-8307	[1]	PIN
58.	4B-4285	[1]	WASHER(27X51X3.5-MM THK)
59.	7M-5130	[2]	PIN-SPRING
60.	8I-0873	[2]	ROD
61.	8C-1457	[1]	BEARING
62.	193-1007Y	[1]	MOTOR GP-PISTON(PROPEL, LH)
63.	132-3540	[1]	SPINDLE AS
64.	119-8101	[2]	WHEEL & TIRE GP
			(EACH INCLUDES)
	119-8103	[1]	RIM AS
	129-9911	[2]	TIRE-SOLID
65.	4D-3882	[4]	CONE-BEARING
66.	006-7231	[4]	CUP-BEARING
67.	233-9842	[2]	CAP-HUB
68.	5H-6734	[2]	SEAL-O-RING
69.	006-8943	[2]	NUT
70.	1G-8306	[1]	BAR
71.	8T-4896	[5]	WASHER-HARD(10.2X18.5X2.5-MM THK)
72.	2D-4534	[1]	BOLT-SOCKET HEAD(3/8-16X1-IN)
73.	3B-4647	[2]	PIN-COTTER
74.	8C-7225	[2]	WASHER(51.7X100.5X6.3-MM THK)
75.	6R-1554	[8]	BEARING AS
76.	4D-0012	[1]	GROMMET
77.	6H-0463	[4]	WASHER(1.813X2.625X0.135-IN)
78.	3J-1907	[1]	SEAL-O-RING
79.	8T-4224	[4]	WASHER-HARD(8.8X16X2-MM THK)
80.	8T-8919	[8]	BOLT(1/2-13X1.75-IN)
81.	8T-7984	[2]	SEAL
82.	219-2386Y	[1]	SENSOR GP-POSITION(ARTICULATION ANGLE)
83.	9R-1058I	[2]	HOSE AS
84.	1K-7019B	[16]	SHIM(0.02-IN THK)
85.	160-2251BG		SLEEVE-ABRASION
86.	7K-1181	[7]	STRAP-CABLE
87.	5E-9885	[4]	PIN-RETAINING
88.	7X-0276	[2]	BOLT(5/16-18X3.5-IN)
89.	121-2734	[1]	ADJUSTER-IDLER
90.	148-8370	[6]	ELBOW AS
			(EACH INCLUDES)
	6V-8398	[1]	SEAL-O-RING
	6V-9851	[1]	ELBOW
91.	221-3422	[1]	PLUG AS-CODE
	155-2274	[1]	KIT-CONNECTING PLUG(6-PIN)
			(INCLUDES PLUG AS, WEDGE & INTERFACE SEAL)
92.	6V-8189	[2]	NUT(5/16-18-THD)
93.	8T-4223	[8]	WASHER-HARD(13.5X25.5X3-MM THK)
95.	185-1510	[1]	PLATE
96.	153-6259	[1]	TEE AS
	3D-2824	[1]	SEAL-O-RING
	6V-8777	[1]	TEE-FACE SEAL
	6V-9746	[2]	SEAL-O-RING
97.	148-8328	[1]	CONNECTOR AS
	3D-2824	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8633	[1]	CONNECTOR
98.	8I-0913	[3]	PIN
99.	150-4037	[1]	TEE AS
	6V-8398	[2]	SEAL-O-RING
	6V-9844	[1]	TEE-SWIVEL
100.	119-8107Y	[2]	WHEEL & TIRE GP
101.	189-0714	[1]	ROD
102.	087-0078	[3]	ADJUSTER AS-BEARING
103.	128-4090Y	[1]	MANIFOLD GP-FRONT WHEEL DRIVE
104.	087-0077	[3]	PLATE-LOCK
105.	5H-3182	[6]	PIN-SPRING
	B		USE AS REQUIRED
	G		ORDER BY THE INCH
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION

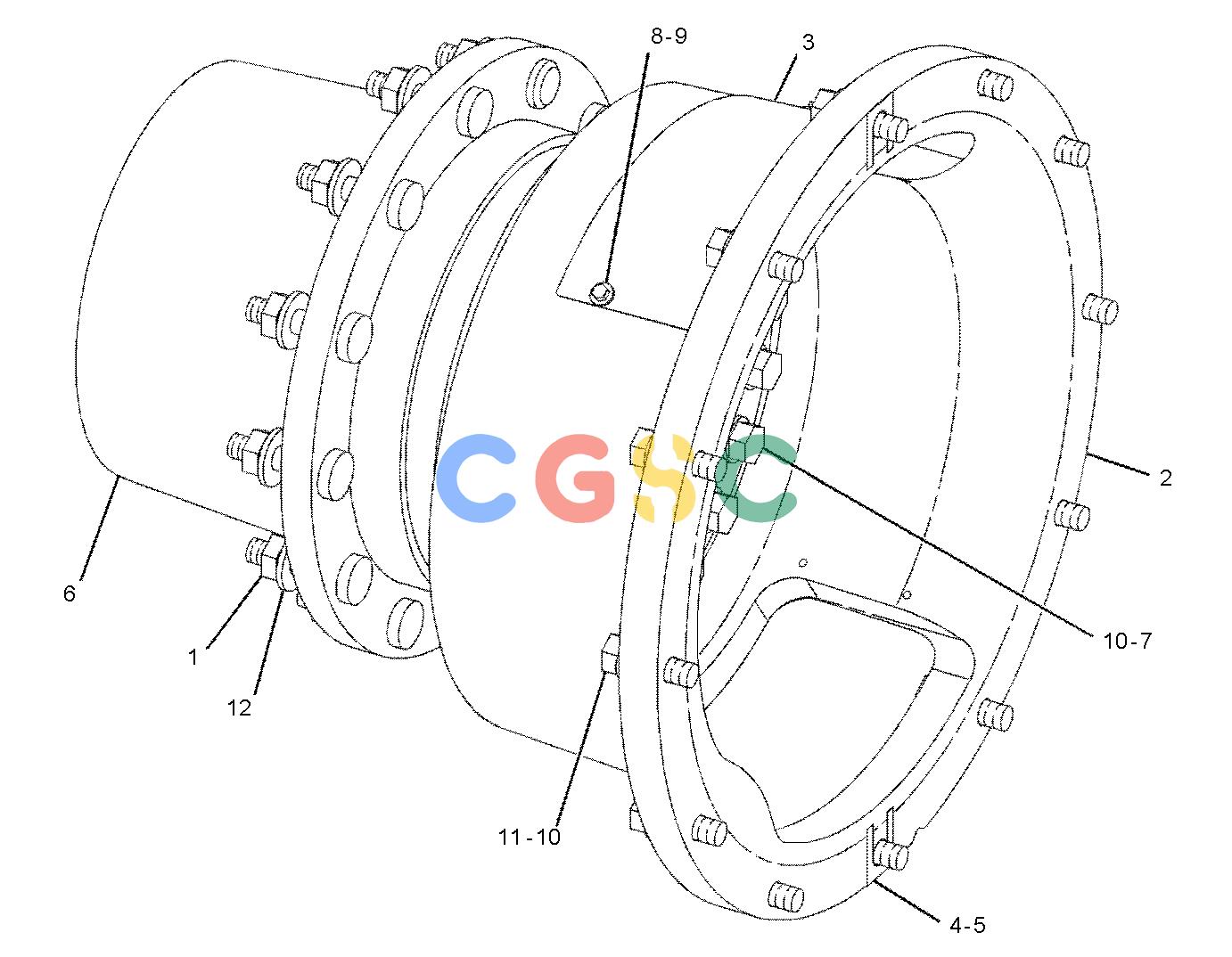

卡特零件查询（AP-1000B） 212-8843: ASSIST GP-FRONT WHEEL
