Pos.	Part No	Qty	Parts name
1.	148-8340	[1]	CONNECTOR AS
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8639	[1]	CONNECTOR
2.	148-8336	[4]	CONNECTOR AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8636	[1]	CONNECTOR
3.	6W-0210	[6]	BOLT(5/16-18X1.5-IN)
4.	7R-7964	[6]	PLATE
5.	148-8378	[1]	ELBOW AS
	3J-1907	[1]	SEAL-O-RING
	6V-0839	[1]	HEAD-STEM
	6V-8724	[1]	ELBOW
6.	148-8368	[4]	ELBOW AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	4J-5477	[1]	SEAL-O-RING
	6V-8627	[1]	ELBOW
7.	148-8374	[5]	ELBOW AS
			(EACH INCLUDES)
	3K-0360	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8723	[1]	ELBOW
8.	148-8366	[2]	ELBOW AS
			(EACH INCLUDES)
	6V-8397	[2]	SEAL-O-RING
	6V-8987	[1]	ELBOW
9.	6V-9168	[2]	NUT(11/16-16-THD)
10.	148-8433	[2]	TEE AS
			(EACH INCLUDES)
	6V-8397	[2]	SEAL-O-RING
11.	148-8411	[1]	PLUG AS
	3K-0360	[1]	SEAL-O-RING
	9S-4185	[1]	PLUG(3/4-16-THD)
12.	148-8434	[1]	TEE AS
	6V-8397	[2]	SEAL-O-RING
	6V-9843	[1]	TEE
13.	148-8318	[3]	CONNECTOR AS
			(EACH INCLUDES)
	3K-0360	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8634	[1]	CONNECTOR
14.	148-8415	[1]	REDUCER AS
	6V-8397	[1]	SEAL-O-RING
	6V-8936	[1]	REDUCER
15.	148-8328	[1]	CONNECTOR AS
	3D-2824	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8633	[1]	CONNECTOR
16.	6V-4144	[1]	COUPLER AS-QUICK CONNECT(FLUID SAMPLING)
17.	150-4043	[1]	CONNECTOR AS
	3J-1907	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-9873	[1]	CONNECTOR
18.	5E-8837	[2]	ADAPTER
19.	5R-6867	[1]	COUPLER AS-QUICK DISCONNECT(MALE)
20.	5R-5677	[1]	CAP-DUST(DUST)
21.	5R-5676	[1]	PLUG-DUST
22.	5R-6868	[1]	COUPLER AS-QUICK DISCONNECT(FEMALE)
25.	3J-1907	[2]	SEAL-O-RING
30.	203-4273Y	[2]	CYLINDER GP-HYDRAULIC(SCREED HOIST)
31.	106-1879	[4]	PIN
32.	3B-4629	[8]	PIN-COTTER
33.	6W-2463	[16]	CLAMP
34.	6V-3966	[1]	FITTING AS
35.	8T-0855	[1]	GAUGE GP-PRESSURE(SCREED COUNTERBALANCE)
36.	134-4720Y	[1]	VALVE GP-BANK(AUGER HOIST, SCREED HOIST)
37.	9B-7237	[6]	BOLT(3/8-16X1.25-IN)
38.	6V-8801	[6]	NUT(3/8-16-THD)
39.	8T-4896	[14]	WASHER-HARD(10.2X18.5X2.5-MM THK)
40.	111-7379	[1]	PLATE
41.	169-0166Y	[1]	VALVE GP-COUNTERBALANCE(SCREED)
42.	7X-0264	[2]	BOLT(1/4-20X2.5-IN)
43.	148-8435	[1]	TEE AS
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[2]	SEAL-O-RING
	6V-8781	[1]	TEE
44.	8T-4205	[2]	WASHER-HARD(7.2X14.5X2-MM THK)
45.	8R-6709I	[1]	HOSE AS
46.	154-2821I	[1]	HOSE AS
47.	111-4455I	[1]	HOSE AS
48.	5S-7379	[2]	BOLT(3/8-16X0.875-IN)
49.	128-2748I	[3]	HOSE AS
50.	179-1972I	[4]	HOSE AS
51.	7J-8611	[1]	ELBOW-PIPE
52.	179-1969I	[1]	HOSE AS
53.	154-2835I	[4]	HOSE AS
54.	125-0690I	[1]	HOSE AS
55.	9R-7367I	[1]	HOSE AS
56.	6V-0852	[1]	CAP-DUST
57.	148-8361	[1]	ELBOW AS(90-DEG)
	3J-7354	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-9200	[1]	ELBOW
58.	241-1020C	[1]	CYLINDER GP-HYDRAULIC
59.	241-1022C	[1]	CYLINDER GP-HYDRAULIC
60.	154-1425	[1]	ISOLATOR-GAUGE
61.	1G-9959	[2]	CLAMP
62.	4M-5282	[2]	BOLT(1/4-20X1.5-IN)
63.	7V-5628	[1]	PLATE
64.	150-4037	[1]	TEE AS
	6V-8398	[2]	SEAL-O-RING
	6V-9844	[1]	TEE-SWIVEL
65.	3S-2093	[6]	STRAP-CABLE
66.	205-7202	[2]	ELBOW AS
			(EACH INCLUDES)
	3K-0360	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	168-4988	[1]	ELBOW
67.	6R-3341	[24]	CLAMP
68.	3V-0046	[12]	PLATE
69.	8C-6561C	[12]	BOLT(5/16-18X1.375-IN)
70.	164-5597	[2]	CONNECTOR AS
	6V-8397	[1]	SEAL-O-RING
	8C-6868	[1]	CONNECTOR
71.	148-8367	[2]	ELBOW AS
			(EACH INCLUDES)
	6V-8397	[14]	SEAL-O-RING
	6V-9850	[1]	ELBOW
72.	154-1420BE	[12]	SLEEVE
73.	4P-7581	[1]	CLIP(LADDER)
74.	7K-1181	[1]	STRAP-CABLE
75.	8T-4224	[1]	WASHER-HARD(8.8X16X2-MM THK)
76.	148-8413	[2]	REDUCER AS
			(EACH INCLUDES)
	4J-5477	[1]	SEAL-O-RING
	6V-8934	[1]	ADAPTER
77.	150-3067	[1]	UNION AS
	4J-5477	[2]	SEAL-O-RING
	6V-8729	[1]	UNION
78.	8C-3121C	[2]	BOLT(5/16-18X1.5-IN)
	B		USE AS REQUIRED
	C		CHANGE FROM PREVIOUS TYPE
	E		ORDER BY THE CENTIMETER
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	Y		SEPARATE ILLUSTRATION

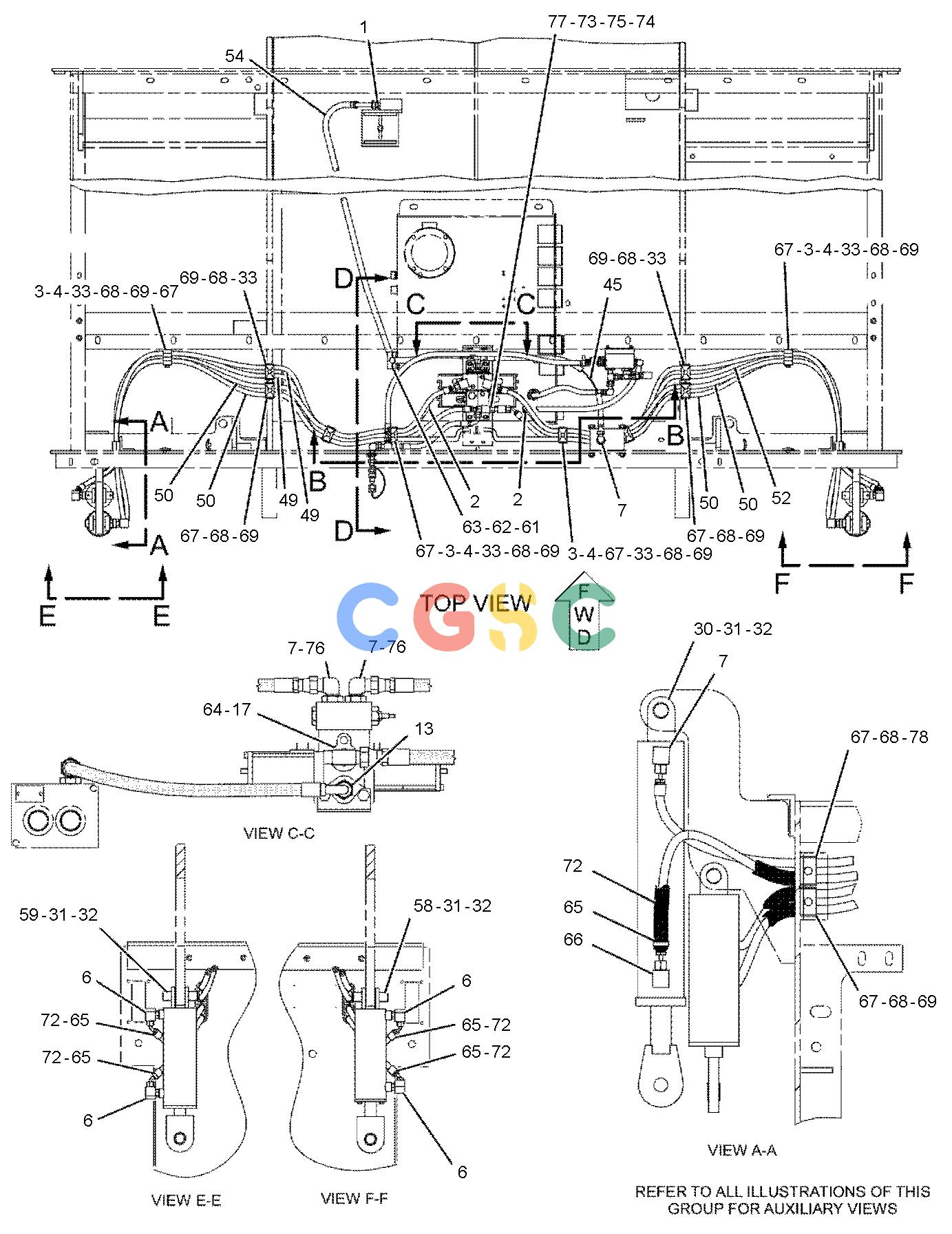

卡特零件查询（AP-1000B） 121-1268: LINES GP-SCREED ELEVATION
