Pos.	Part No	Qty	Parts name
1.	135-0220Y	[2]	CYLINDER GP-HYDRAULIC(HOPPER)
2.	103-1501	[2]	PIN AS
3.	110-4555	[2]	TUBE AS
4.	7V-5626	[2]	CLAMP
5.	7V-5628	[1]	PLATE
6.	4M-5282	[2]	BOLT(1/4-20X1.5-IN)
7.	5S-7379	[2]	BOLT(3/8-16X0.875-IN)
8.	8T-4896	[2]	WASHER-HARD(10.2X18.5X2.5-MM THK)
9.	091-9956I	[1]	HOSE AS
10.	154-2839I	[1]	HOSE AS
11.	8T-4205	[2]	WASHER-HARD(7.2X14.5X2-MM THK)
12.	110-7751	[1]	TUBE AS
13.	148-8366	[2]	ELBOW AS
			(EACH INCLUDES)
	6V-8397	[2]	SEAL-O-RING
	6V-8987	[1]	ELBOW
14.	149-5452	[6]	UNION AS(STRAIGHT)
			(EACH INCLUDES)
	6V-8397	[2]	SEAL-O-RING
	6V-8994	[1]	UNION(STRAIGHT)
15.	6V-9168	[8]	NUT(11/16-16-THD)
17.	7R-9144	[1]	MANIFOLD-RETURN
18.	5P-2675	[2]	BOLT(1/4-20X1.75-IN)
19.	3B-8489	[4]	FITTING-GREASE(1/8-27 PTF)
20.	148-8433	[1]	TEE AS
	6V-8397	[2]	SEAL-O-RING
	6V-9836	[1]	TEE-SWIVEL
21.	4V-0612	[7]	PLATE
22.	4V-0611	[14]	CLAMP
23.	7X-0440	[7]	BOLT(5/16-18X1.75-IN)
24.	148-8318	[5]	CONNECTOR AS
			(EACH INCLUDES)
	3K-0360	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8634	[1]	CONNECTOR
25.	148-8363	[1]	ELBOW AS
	3K-0360	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-9876	[1]	ELBOW
29.	148-8374	[1]	ELBOW AS
	3K-0360	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8723	[1]	ELBOW
30.	204-9815	[1]	ELBOW AS
	6K-6307	[1]	SEAL-O-RING
	8T-0315	[1]	SEAL-O-RING
	8T-1682	[1]	ELBOW
31.	7R-7891I	[2]	HOSE AS
35.	148-8345	[1]	CONNECTOR AS
	2M-9780	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8638	[1]	CONNECTOR
36.	148-8347	[1]	ELBOW AS
	3D-2824	[1]	SEAL-O-RING
	6V-9007	[1]	ELBOW
	6V-9746	[1]	SEAL-O-RING
37.	8M-3267	[2]	SCREW-HEX SOCKET(3/8-16X0.75-IN)
41.	231-1324I	[1]	HOSE AS
42.	148-8360	[1]	ELBOW AS
	6V-9182	[1]	ELBOW
	6V-9746	[1]	SEAL-O-RING
	7M-8485	[1]	SEAL-O-RING
43.	7R-7940	[2]	CLAMP
44.	7R-7951	[1]	PLATE
45.	7X-0264	[2]	BOLT(1/4-20X2.5-IN)
46.	2T-1398	[6]	CLAMP
47.	086-8656	[9]	NUT
48.	2T-1394	[3]	PLATE-COVER
49.	7X-2501	[3]	BOLT(1/4-20X1.25-IN)
50.	111-7380	[1]	BRACKET AS
51.	101-7641I	[2]	HOSE AS
52.	111-4661I	[1]	HOSE AS
54.	8I-0836Y	[1]	PUMP GP-PISTON(AUXILIARY)
55.	8T-4223	[2]	WASHER-HARD(13.5X25.5X3-MM THK)
56.	5P-2566	[2]	BOLT(1/2-13X1.5-IN)
57.	9S-4191	[2]	PLUG(9/16-18-THD)
58.	205-7200	[2]	ELBOW AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	108-2144	[1]	ELBOW
59.	148-8353	[1]	ELBOW AS
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-9001	[1]	ELBOW
60.	148-8336	[1]	CONNECTOR AS
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8636	[1]	CONNECTOR
61.	148-8435	[2]	TEE AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[2]	SEAL-O-RING
	6V-8781	[1]	TEE
62.	231-1325I	[1]	HOSE AS
63.	148-6982I	[1]	HOSE AS
64.	148-8428	[1]	TEE AS
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[2]	SEAL-O-RING
	6V-8782	[1]	TEE
69.	077-8184	[1]	CLAMP
70.	9N-9949	[1]	CLAMP
71.	196-3060	[1]	PLATE AS
72.	115-7183Y	[1]	VALVE GP-CONTROL(RIGHT GRADE, HOPPER)
72A.	115-7183Y	[1]	VALVE GP-CONTROL(LEFT GRADE, TRUCK HITCH)
73.	9S-7382	[8]	BOLT-SOCKET HEAD(5/16-18X3.5-IN)
74.	8T-4122	[1]	WASHER-HARD(17X32X3.5-MM THK)
76.	100-2790I	[1]	HOSE AS
77.	111-6918I	[1]	HOSE AS
78.	117-3247I	[1]	HOSE AS
79.	137-4610I	[2]	HOSE AS
81.	164-5567	[1]	COUPLER AS-QUICK DISCONNECT(MALE)
	3J-1907	[1]	SEAL-O-RING
	6V-3965	[1]	FITTING(QUICK DISCONNECT)
82.	6V-0852	[1]	CAP-DUST
83.	7X-0343	[1]	BOLT(5/8-11X1.25-IN)
84.	130-0082	[1]	BRACKET AS
86.	6V-1320	[1]	SEAL-O-RING
87.	6R-3744	[1]	CLAMP AS
88.	146-9042I	[1]	HOSE AS
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	R		REMANUFACTURED PART MAY BE AVAILABLE
	Y		SEPARATE ILLUSTRATION

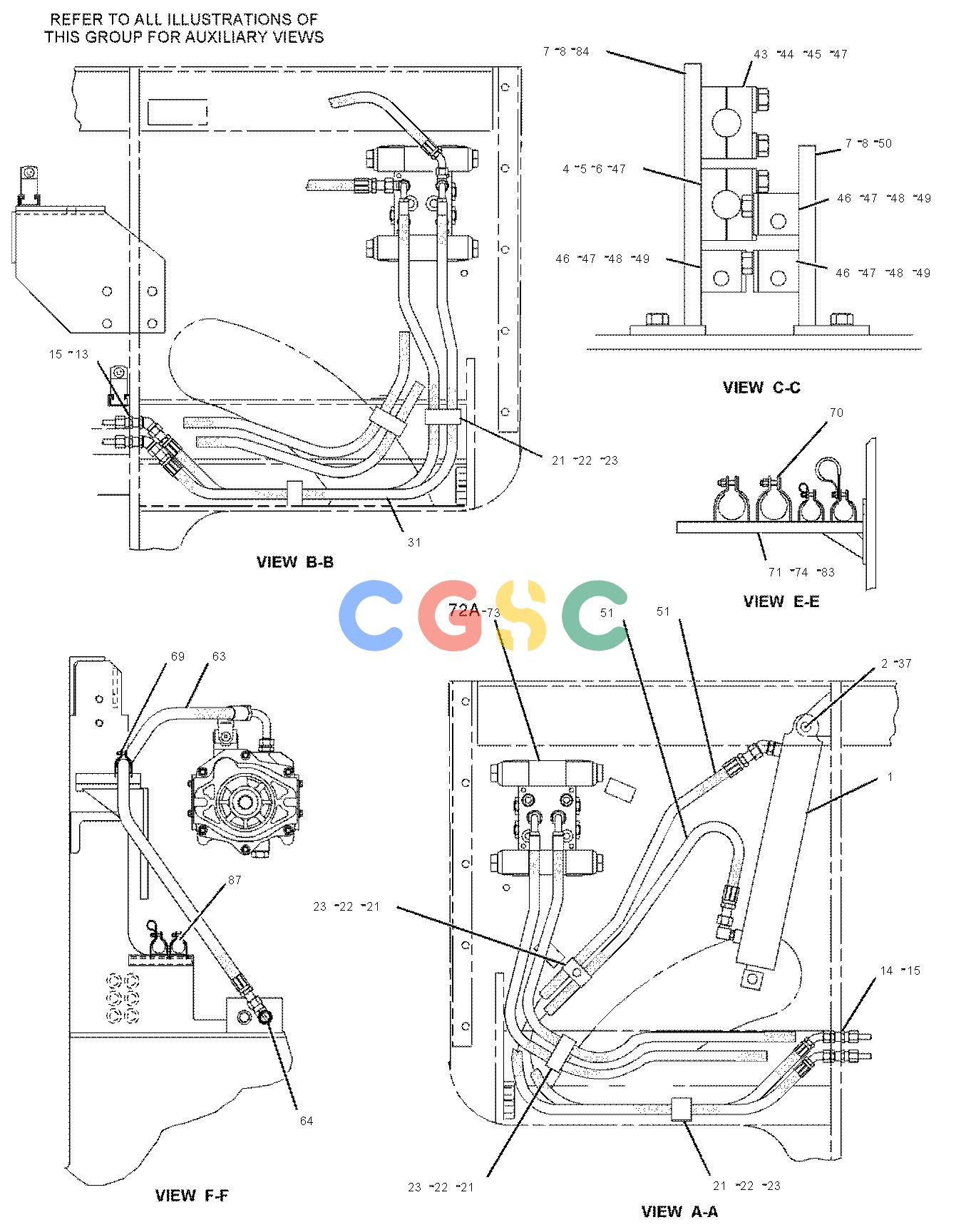

卡特零件查询（AP-1000B） 231-1323: LINES GP-HOPPER
