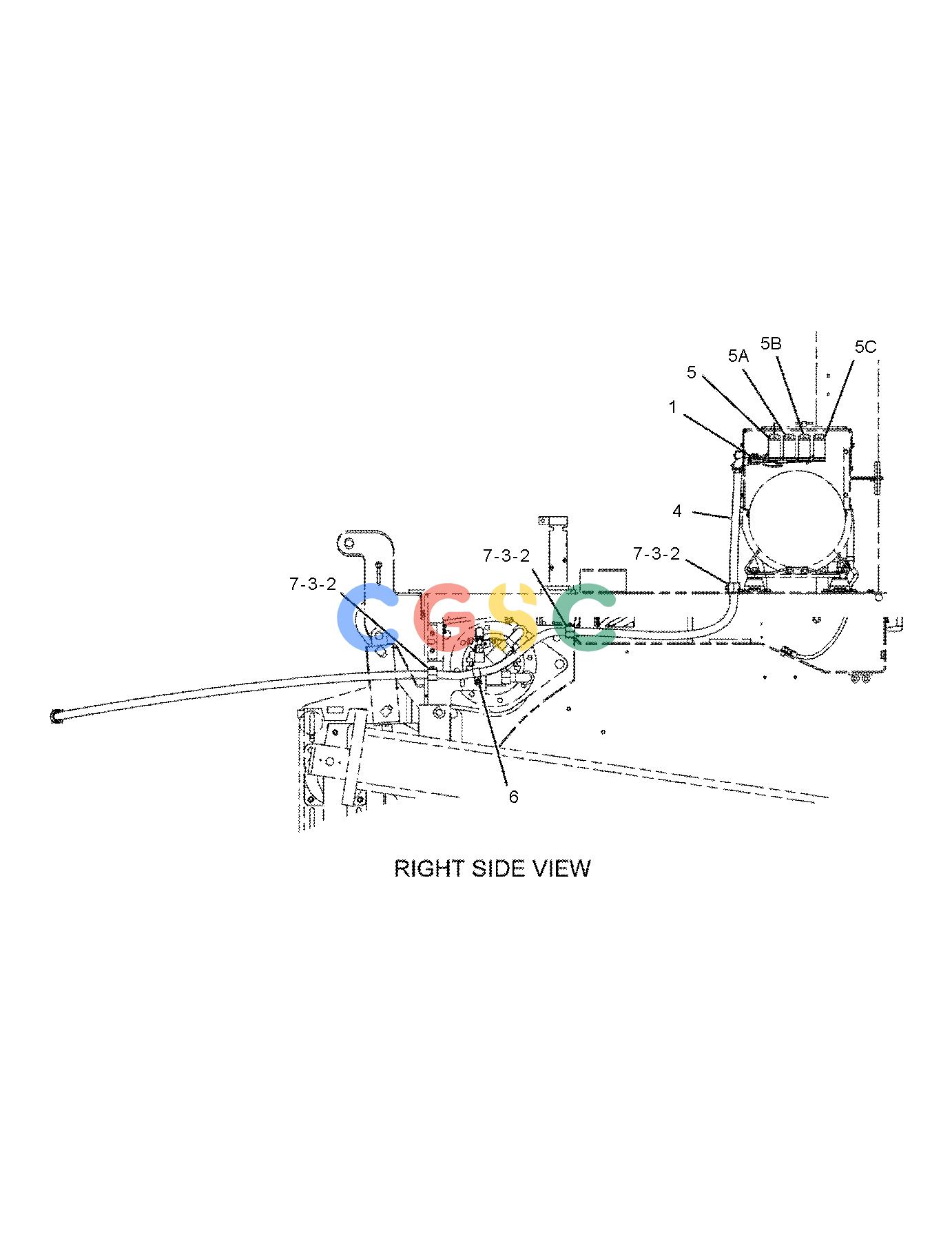

| 1. | 3S-2093 | [4] | STRAP-CABLE | |
| 2. | 7V-5628 | [3] | PLATE | |
| 3. | 7V-6089 | [6] | CLAMP | |
| 4. | 229-3163 | [1] | HARNESS AS-SCREED(ELECTRIC HEAT) | |
| | 3B-4501 | [2] | LOCKWASHER | |
| | 6V-7697 | [2] | SCREW-MACHINE(8-32X1.25-IN) | |
| | 234-7551 | [11] | COVER-PROTECTIVE | |
| 5. | 254-5092 | [1] | CIRCUIT BREAKER AS(25-AMPERE)(EXTENDER HEATER, LH) | |
| 5A. | 254-5092 | [1] | CIRCUIT BREAKER AS(25-AMPERE)(MAIN HEATER, LH) | |
| 5B. | 254-5092 | [1] | CIRCUIT BREAKER AS(25-AMPERE)(MAIN HEATER, RH) | |
| 5C. | 254-5092 | [1] | CIRCUIT BREAKER AS(25-AMPERE)(EXTENDER HEATER, RH) | |
| | | | (EACH CIRCUIT BREAKER INCLUDES) |
| | 2L-8069 | [2] | TERMINAL-RING(2-GA TO 10-GA, 3/8-IN SCREW) | |
| | 125-7875BE | | TUBE-HEAT SHRINK(7.44-MM DIA) | |
| 6. | 5P-9297 | [1] | CLIP | |
| 7. | 8C-8451M | [6] | BOLT(M6X1X40-MM) | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
