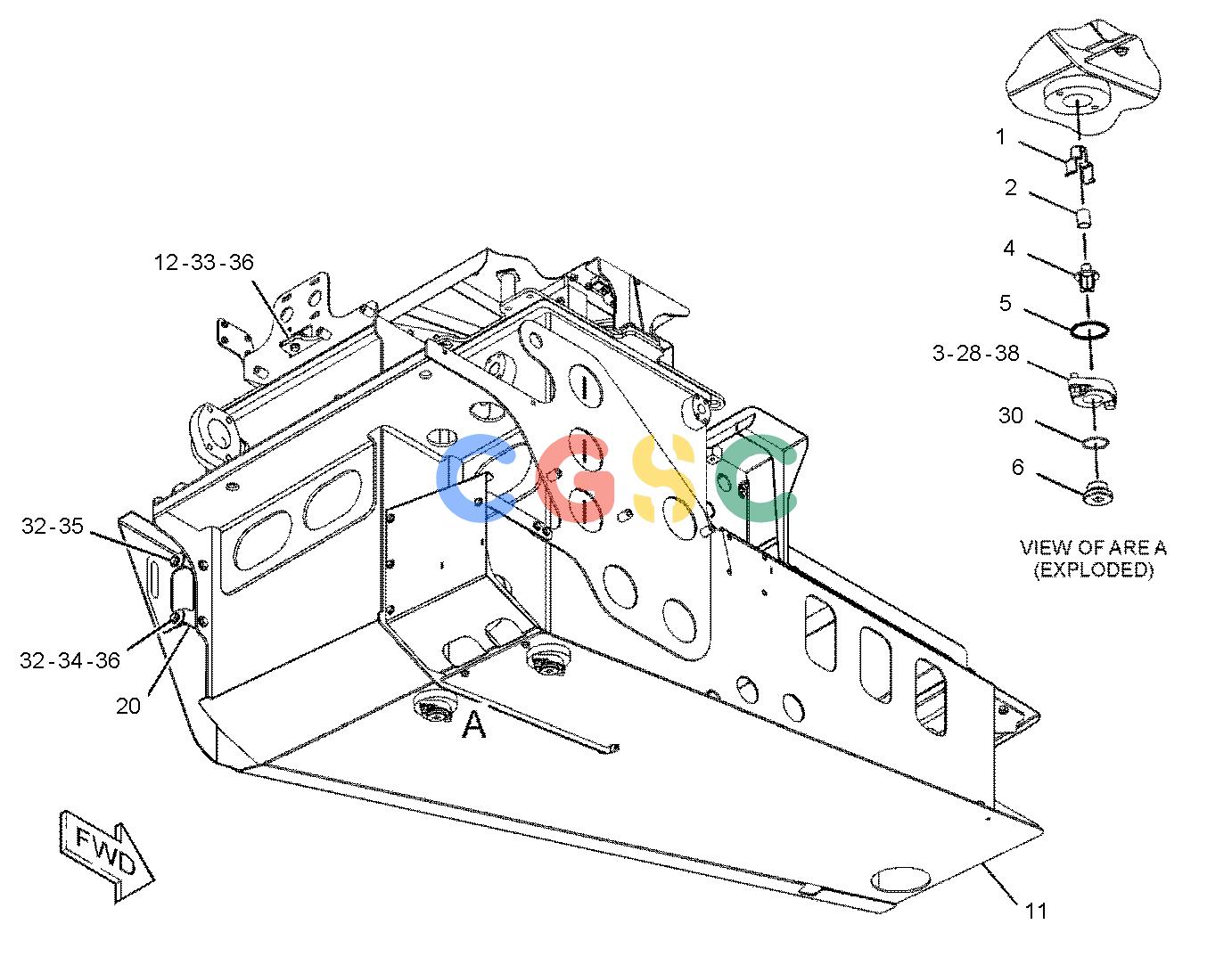

| 1. | 1U-2827 | [2] | GUIDE-VALVE | |
| 2. | 7Y-4716 | [2] | SPRING | |
| 3. | 8J-8782 | [2] | BODY-DRAIN VALVE | |
| 4. | 8J-8783 | [2] | VALVE-DRAIN(HYDRAULIC TANK) | |
| 5. | 8T-3298 | [2] | SEAL-RECTANGULAR | |
| 6. | 9J-7031 | [2] | PLUG-DRAIN(HYDRAULIC TANK) | |
| 7. | I | [1] | HOSE AS |
| 8. | 148-8336 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 9. | 232-4903I | [1] | HOSE AS | |
| 10. | 312-5789I | [1] | HOSE AS | |
| 11. | 332-6456 | [1] | TANK AS-HYDRAULIC | |
| 12. | 332-6483 | [1] | BRACKET AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| | 6V-9632M | [4] | NUT-WELD(M6X1-THD) | |
| | 7T-1099 | [1] | LINK | |
| 13. | 332-6490 | [1] | GAUGE AS-OIL LEVEL(HYDRAULIC TANK) | |
| 14. | 332-6518Y | [1] | GUARD GP-HYDRAULIC TANK | |
| 15. | 332-6519 | [1] | GASKET | |
| 16. | 332-6520 | [1] | GASKET | |
| 17. | 332-6525Y | [1] | COVER GP-HYDRAULIC TANK(STEERING) | |
| 18. | 332-6529 | [1] | COVER AS(LH) | |
| | 183-7602M | [3] | BOSS-THREADED(M10X1.5-THD) | |
| | 332-6486 | [1] | BRACKET | |
| | 332-6488 | [1] | BRACKET | |
| | 332-6531 | [1] | BRACKET-MOUNTING | |
| 19. | 333-7974 | [1] | BRACKET AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| | | [1] | BRACKET |
| 20. | 334-4889 | [1] | BRACKET AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 21. | 374-6128 | [1] | GAUGE-OIL LEVEL(HYDRAULIC TANK) | |
| | 359-1295 | [2] | ADAPTER | |
| | 374-6130 | [1] | PLATE | |
| 22. | 339-6360Y | [1] | COVER GP-HYDRAULIC TANK(HOIST) | |
| 23. | 369-8736 | [1] | BRACKET | |
| 24. | 148-8326 | [1] | CONNECTOR AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9872 | [1] | CONNECTOR | |
| 25. | 148-8361 | [1] | ELBOW AS(90-DEG) | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9200 | [1] | ELBOW | |
| 26. | 148-8378 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8724 | [1] | ELBOW | |
| 28. | 4L-6454 | [4] | BOLT(3/8-16X1-IN) | |
| 29. | 4P-7581 | [1] | CLIP(LADDER) | |
| 30. | 5M-2057 | [2] | SEAL-O-RING | |
| 31. | 5P-1076 | [2] | WASHER-HARD(13.5X30X4-MM THK) | |
| 32. | 7X-7729 | [11] | WASHER(11X25X3-MM THK) | |
| 33. | 8T-4121 | [45] | WASHER-HARD(11X21X2.5-MM THK) | |
| 34. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 35. | 8T-4136M | [44] | BOLT(M10X1.5X25-MM) | |
| 36. | 8T-4195M | [8] | BOLT(M10X1.5X30-MM) | |
| 37. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 38. | 8T-4896 | [4] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 39. | 8T-4956M | [1] | BOLT(M12X1.75X35-MM) | |
| 40. | 374-6131 | [1] | BRACKET-GUARD | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
