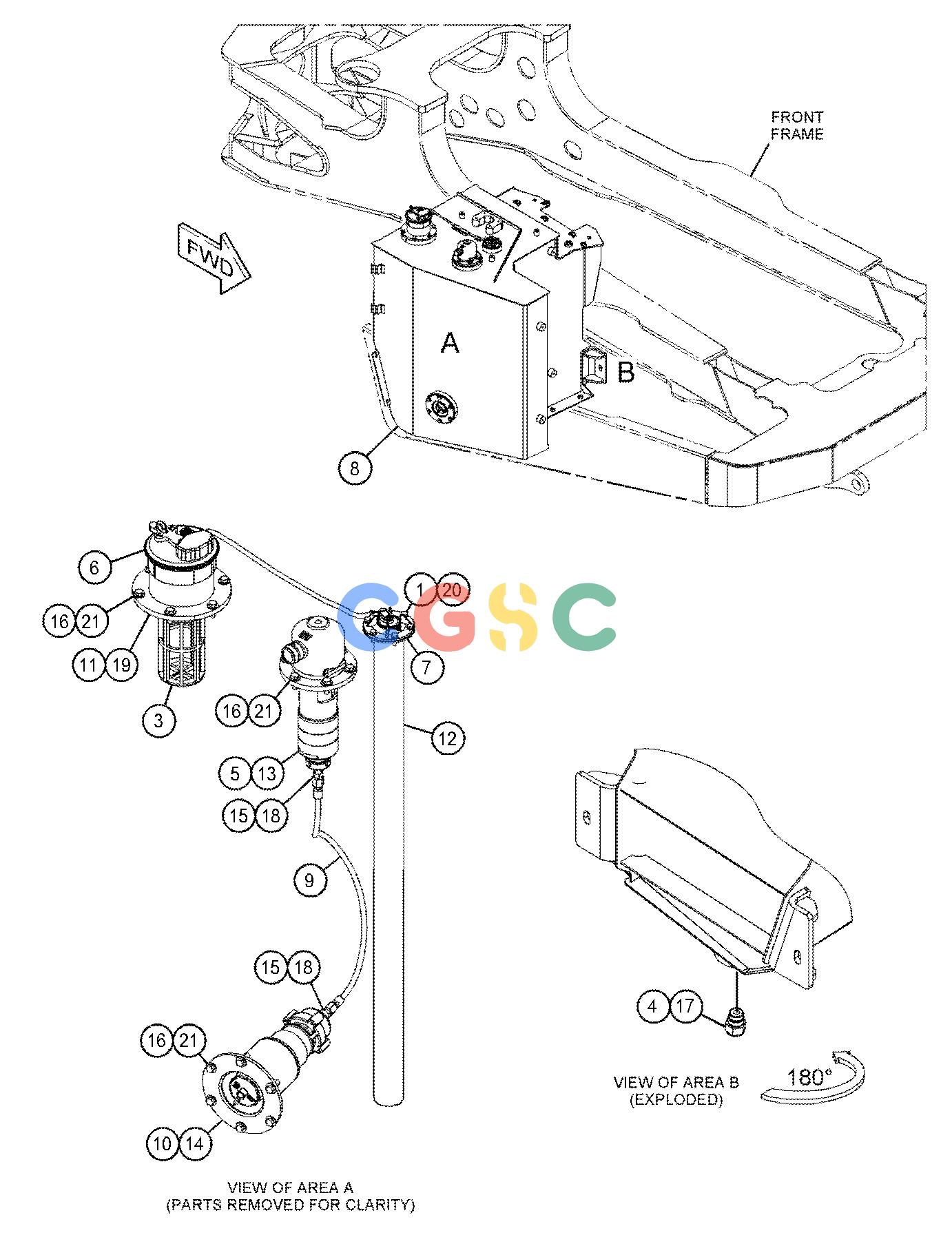

| 1. | 9X-8256 | [6] | WASHER(6.6X12X2-MM THK) | |
| 3. | 9P-7121 | [1] | STRAINER-FUEL(FUEL TANK) | |
| 4. | 248-0833 | [1] | PLUG AS-DRAIN(FUEL TANK) | |
| | 3S-9233 | [1] | SEAL-O-RING | |
| | 5L-4759 | [1] | SEAL-O-RING | |
| | 259-7138 | [1] | PLUG | |
| 5. | 308-0415 | [1] | VENT AS(FAST FILL) | |
| 6. | 349-7059 | [1] | CAP AS-FUEL(LOCKABLE, VENTED) | |
| | 9X-8600 | [1] | SEAL-O-RING | |
| | 350-7735 | [1] | KIT-CAP FILTER(FUEL TANK) | |
| | | | (INCLUDES BODY BREATHER, GASKET BREATHER, SCREWS & WASHERS) |
| 7. | 363-4122 | [1] | GASKET | |
| 8. | 388-0872 | [1] | TANK AS-FUEL | |
| 9. | 388-0921I | [1] | HOSE AS | |
| 10. | 391-5746 | [1] | VALVE AS(RECESSED)(FAST FILL FUEL) | |
| | 005-8593 | [1] | SEAL-O-RING | |
| | 373-7052 | [1] | VALVE | |
| | 376-0929 | [1] | ADAPTER-FAST FILL FUEL | |
| 11. | 395-0439 | [1] | FILLER AS | |
| | 9X-2206 | [1] | ADAPTER AS-FUEL | |
| 12. | 397-2333 | [1] | SENDER AS-FUEL LEVEL | |
| | 382-1939 | [1] | KIT-DIAL SENSOR | |
| | | | (INCLUDES SENSOR AS, SCREWS, RECEPTACLE AS, WEDGE & PIN CONNECTORS) |
| 13. | 1H-8128 | [1] | SEAL-O-RING | |
| 14. | 259-4598 | [1] | SEAL-O-RING | |
| 15. | 5P-2618 | [2] | CONNECTOR | |
| 16. | 5P-4116 | [18] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 17. | 5P-7701 | [1] | SEAL-O-RING | |
| 18. | 5P-7814 | [2] | SEAL-O-RING | |
| 19. | 6V-1195 | [1] | SEAL-O-RING | |
| 20. | 8T-4138M | [6] | BOLT(M6X1X20-MM) | |
| 21. | 8T-4908M | [18] | BOLT(M8X1.25X25-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
