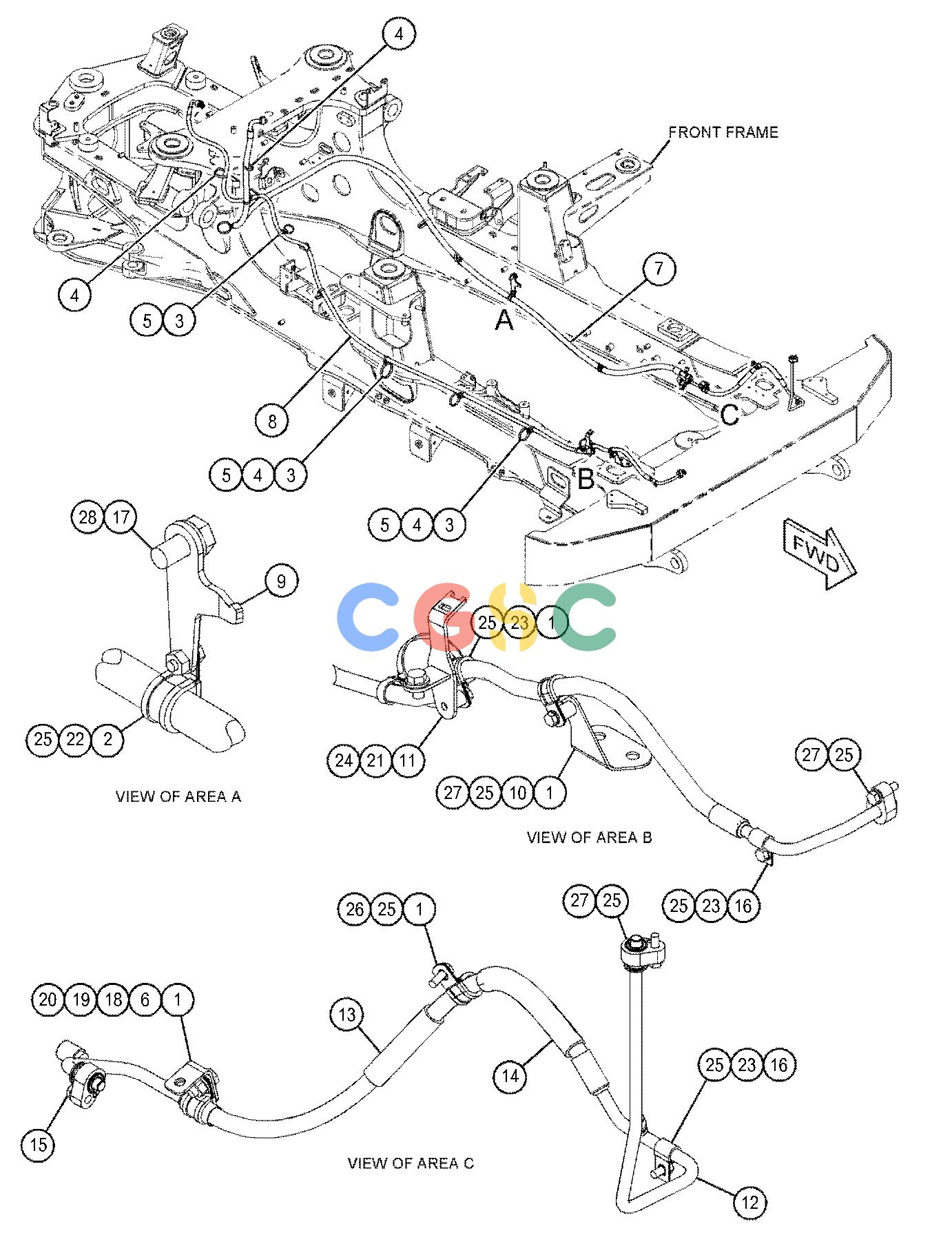

| 1. | 3U-2754 | [4] | CLIP(LOOP) | |
| 2. | 3U-2755 | [2] | CLIP(LOOP) | |
| 3. | 6U-0455 | [13] | STRAP | |
| 4. | 6U-0456 | [11] | STRAP | |
| 5. | 290-5562 | [10] | MOUNT(DUAL SWIVEL) | |
| 6. | 352-7829 | [1] | BRACKET | |
| 7. | 432-5023 | [1] | HOSE AS | |
| 8. | 437-7001 | [1] | HOSE AS | |
| 9. | 448-5739 | [1] | PLATE AS | |
| 10. | 454-8242 | [1] | BRACKET AS | |
| 11. | 454-8247 | [1] | BRACKET AS | |
| 12. | 510-3475 | [1] | LINE AS | |
| | 329-9931G | | HOSE(25-IN) | |
| | 327-0282 | [2] | SEAL-INTEGRAL(1/2-IN) | |
| | | [1] | COUPLING AS-AIR CONDITIONER |
| | 2L-1224 | | CAP-SEAL(HIGH SIDE) | |
| | 180-7180 | [1] | CORE-VALVE | |
| | | [1] | COUPLING AS-AIR CONDITIONER |
| | 3E-4052 | [1] | CAP-SEAL(HIGH SIDE CHARGE PORT) | |
| | 3E-4058 | [1] | VALVE AS(REFRIGERANT, HIGH SIDE) | |
| 13. | 206-2722E | | GUARD-HOSE(10-CM) | |
| 14. | 206-2722E | | GUARD-HOSE(15-CM) | |
| 15. | 178-3336M | [4] | NUT-HEX FLANGE(M8X1.25-THD) | |
| 16. | 3U-2752 | [2] | CLIP(LOOP) | |
| 17. | 7X-2552M | [1] | BOLT(M16X2X30-MM) | |
| 18. | 8T-4121 | [3] | WASHER-HARD(11X21X2.5-MM THK) | |
| 19. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 20. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| 21. | 8T-4179M | [1] | BOLT(M12X1.75X20-MM) | |
| 22. | 8T-4189M | [1] | BOLT(M8X1.25X20-MM) | |
| 23. | 8T-4200M | [3] | BOLT(M8X1.25X16-MM) | |
| 24. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 25. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 26. | 8T-4908M | [1] | BOLT(M8X1.25X25-MM) | |
| 27. | 8T-7547M | [3] | BOLT(M8X1.25X30-MM) | |
| 28. | 9X-8257 | [1] | WASHER(17.5X30X3.5-MM THK) | |
| | E | | ORDER BY THE CENTIMETER |
| | G | | ORDER BY THE INCH |
| | M | | METRIC PART |
