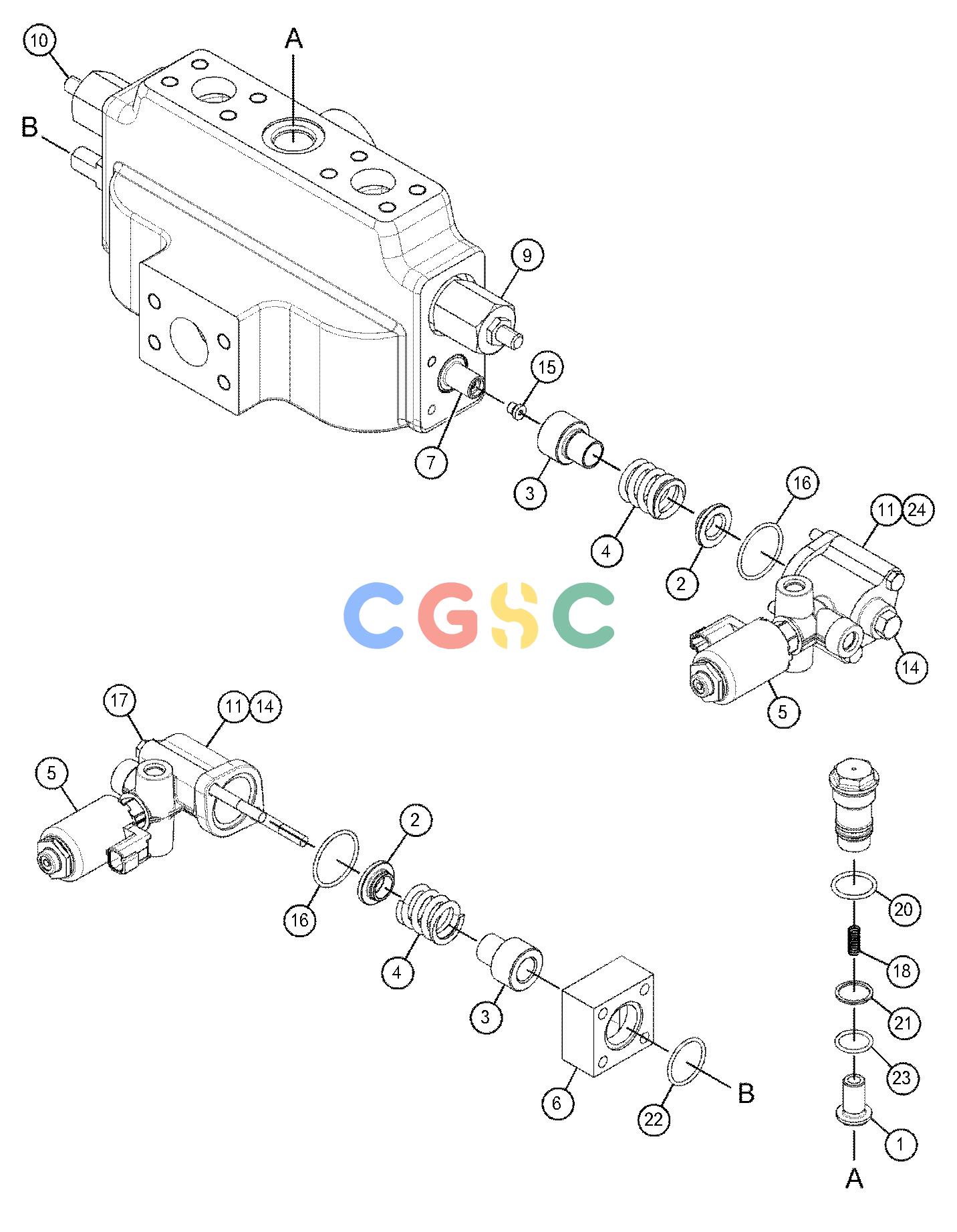

| 1. | 100-8010 | [1] | VALVE-CHECK(HOIST CONTROL) | |
| 2. | 207-7434 | [2] | RETAINER | |
| 3. | 207-7435 | [2] | RETAINER | |
| 4. | 207-7437 | [2] | SPRING | |
| 5. | 313-7668Y | [2] | VALVE GP-SOLENOID(24-VOLT)(HOIST CONTROL) | |
| 6. | 388-5296 | [1] | HOUSING | |
| 9. | 389-3875J | [1] | VALVE GP-RELIEF(HOIST RAISE) | |
| 10. | 389-3876J | [1] | VALVE GP-RELIEF(HOIST LOWER) | |
| 11. | 418-7813 | [2] | HOUSING-SPRING | |
| 14. | 366-4699 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 360-3692 | [1] | PLUG | |
| 15. | 367-6001 | [1] | PLUG AS | |
| | 4J-7533 | [1] | SEAL-O-RING | |
| | 360-3675 | [1] | PLUG(5/16-24-THD) | |
| 16. | 1R-5318 | [2] | SEAL-O-RING | |
| 17. | 7X-2539M | [2] | BOLT(M8X1.25X110-MM) | |
| 18. | 2S-2596 | [1] | SPRING | |
| 20. | 4K-1388 | [1] | SEAL-O-RING | |
| 21. | 4T-5073 | [1] | RING-BACKUP | |
| 22. | 6V-8218 | [1] | SEAL-O-RING | |
| 23. | 7J-9933 | [1] | SEAL-O-RING | |
| 24. | 8T-3647M | [2] | BOLT(M8X1.25X80-MM) | |
| 25. | 4B-4158 | [1] | SCREW-DRIVE(NO 4X0.25-IN) | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 239-6336J | [1] | KIT-SEAL(RELIEF VALVE) | |
| | | | (INCLUDES O-RINGS, SEALS & BACK UP RINGS) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
