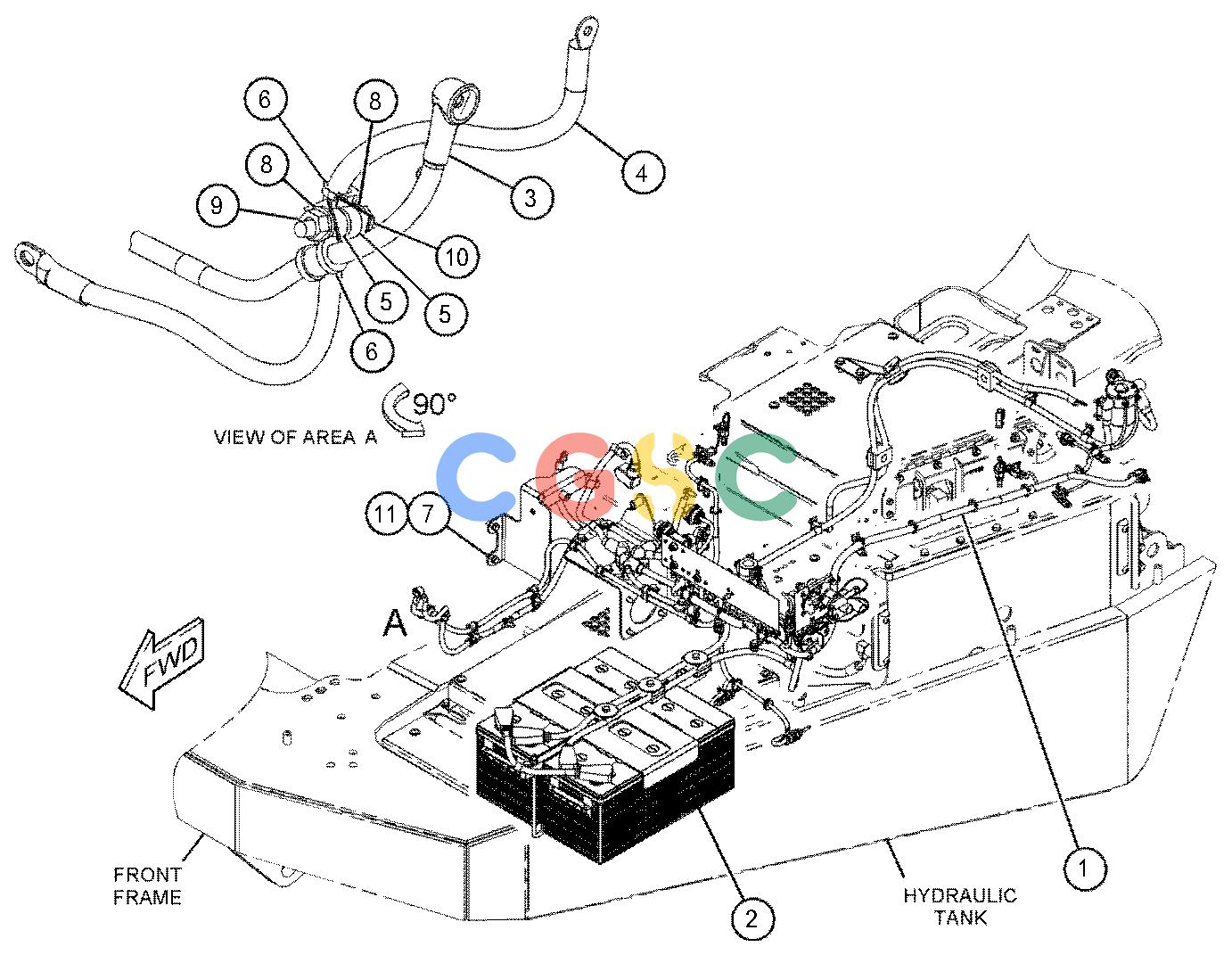

| 1. | 337-6395Y | [1] | PANEL GP-CIRCUIT BREAKER | |
| 2. | 341-3682Y | [1] | BATTERY & WIRING GP | |
| 3. | 439-0272 | [1] | CABLE AS | |
| | 6T-5598 | [1] | TERMINAL-RING(1-GA TO 2-GA, 5/16-IN SCREW) | |
| | 8C-3056E | | CABLE(2-GA, RED)(156-CM) | |
| | 030-1712 | [1] | TERMINAL-RING(2-GA, 1/4-IN SCREW) | |
| | 135-2543 | | BOOT(RED) | |
| | 1P-0810B | | TAPE-ELECTRICAL | |
| 4. | 439-0273 | [1] | CABLE AS | |
| | 8C-0596E | | CABLE(2-GA)(66-CM) | |
| | 030-1712 | [1] | TERMINAL-RING(2-GA, 1/4-IN SCREW) | |
| | 125-7876E | | TUBE-HEAT SHRINK(17.78-MM DIA)(4-CM) | |
| | 311-6184 | [1] | TERMINAL-RING(2-GA, 3/8-IN SCREW) | |
| 5. | 133-3260 | [2] | SPACER(11X19X10-MM THK) | |
| 6. | 349-1209 | [2] | CLIP | |
| 7. | 4L-6454 | [2] | BOLT(3/8-16X1-IN) | |
| 8. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 9. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 10. | 8T-4185M | [1] | BOLT(M10X1.5X50-MM) | |
| 11. | 8T-4896 | [2] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
