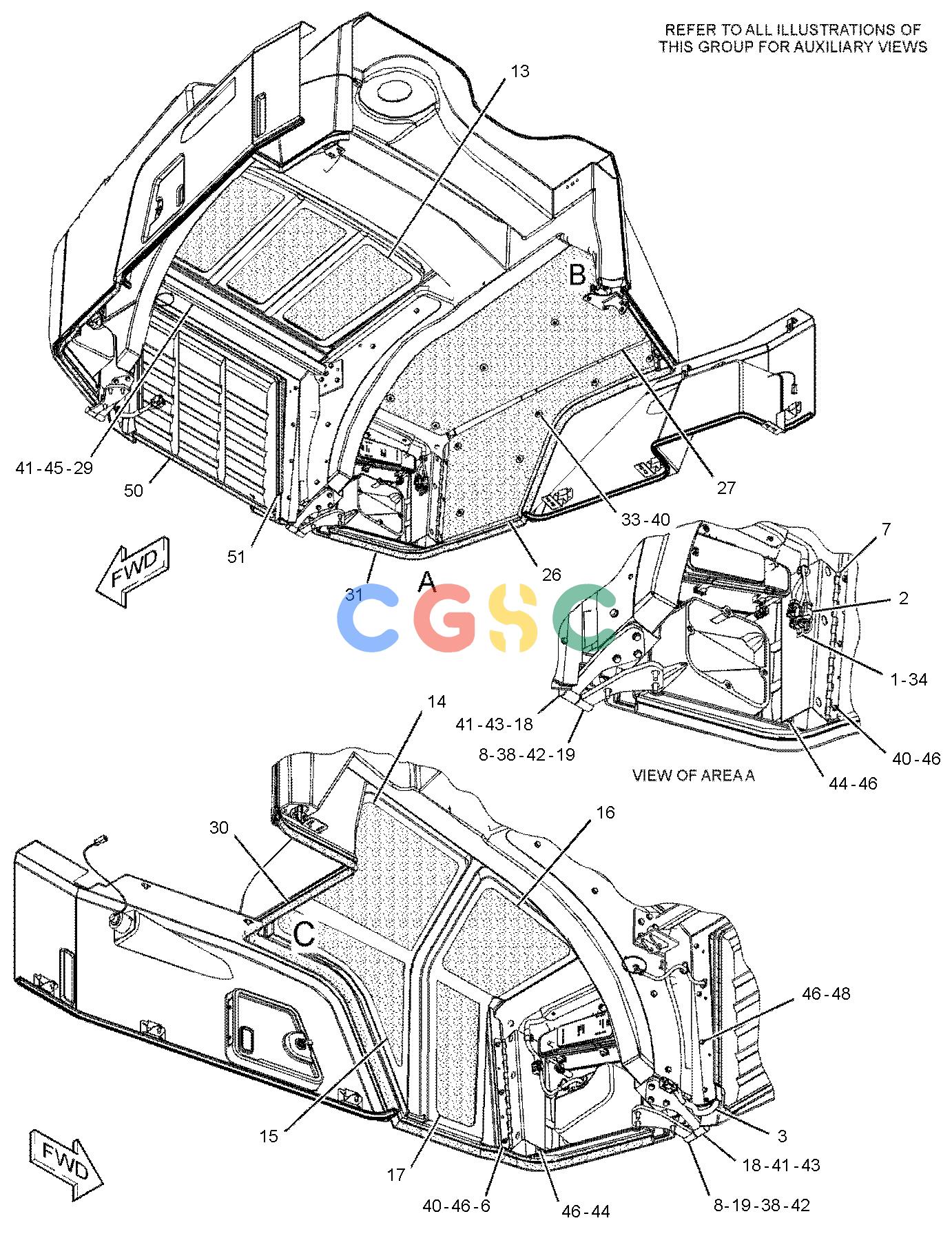

| 1. | 8T-8737 | [2] | PLUG-SEAL | |
| 2. | 274-3782 | [1] | CAP-SEAL | |
| 3. | 328-3984Y | [1] | WIRING GP-LIGHTING | |
| 4. | 332-3816 | [1] | GRILL AS(LH) | |
| 5. | 332-3817 | [1] | GRILL AS(RH) | |
| 6. | 332-3818 | [1] | HINGE AS(LH) | |
| | 5G-8871M | [1] | BOSS(M6X1-THD) | |
| | 7T-1099 | [1] | LINK | |
| 7. | 332-3819 | [1] | HINGE AS(RH) | |
| | 5G-8871M | [1] | BOSS(M6X1-THD) | |
| | 7T-1099 | [3] | LINK | |
| 8. | 332-3821 | [2] | BUSHING-FLANGE | |
| 9. | 332-3830 | [1] | GRILL AS | |
| 10. | 351-4733 | [1] | PANEL AS | |
| 11. | 351-4734 | [1] | PANEL AS(LH) | |
| 12. | 351-4735 | [1] | PANEL AS(RH) | |
| 13. | 358-1460 | [1] | INSULATION | |
| 14. | 358-1461 | [1] | INSULATION | |
| 15. | 358-1462 | [1] | INSULATION | |
| 16. | 358-1463 | [1] | INSULATION | |
| 17. | 358-1464 | [1] | INSULATION | |
| 18. | 359-5892 | [2] | HINGE AS | |
| 19. | 359-5895 | [2] | HINGE AS | |
| 20. | 359-6322 | [1] | BRACKET AS | |
| | 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | |
| 21. | 359-6325 | [1] | BRACKET AS | |
| 22. | 363-3870 | [1] | BRACKET AS | |
| 23. | 363-3871 | [1] | BRACKET AS | |
| | 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | |
| 24. | 363-8613Y | [1] | FENDER GP(FRONT) | |
| 25. | 365-1586 | [2] | PIN-GUIDE | |
| 26. | 366-2294 | [1] | INSULATION | |
| 27. | 366-2295 | [1] | INSULATION | |
| 28. | 366-2298 | [1] | HOOD AS | |
| | | [1] | RIB AS |
| | 8T-3490M | [8] | NUT-WELD(M10X1.5-THD) | |
| | | [1] | RIB AS |
| | 7T-1099 | [1] | LINK | |
| | 8T-3490M | [8] | NUT-WELD(M10X1.5-THD) | |
| | 8T-4121 | [14] | WASHER-HARD(11X21X2.5-MM THK) | |
| | 8T-4136M | [14] | BOLT(M10X1.5X25-MM) | |
| 29. | 372-2830 | [1] | BRACKET AS | |
| 30. | 375-0094 | [1] | SEAL AS(LH) | |
| | 365-1587E | | SEAL(300-CM) | |
| 31. | 375-0095 | [1] | SEAL AS(RH) | |
| | 365-1587E | | SEAL(280-CM) | |
| 32. | 380-7951 | [1] | BRACKET AS | |
| | 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | |
| 33. | 156-0283 | [12] | WASHER-HARD(8.4X35X2.5-MM THK) | |
| 34. | 177-9645 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUES RECEPTACLE AS & WEDGE) |
| 35. | 216-7352M | [4] | SCREW-TRUSS HEAD(M8X1.25X30-MM) | |
| 36. | 245-1094 | [4] | NUT-RETAINING | |
| 37. | 3E-8020M | [8] | SCREW-TRUSS HEAD(M6X1X25-MM) | |
| 38. | 5P-1076 | [6] | WASHER-HARD(13.5X30X4-MM THK) | |
| 39. | 5P-4116 | [17] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 40. | 6V-9189M | [20] | LOCKNUT(M8X1.25-THD) | |
| 41. | 8T-4121 | [14] | WASHER-HARD(11X21X2.5-MM THK) | |
| 42. | 8T-4183M | [6] | BOLT(M12X1.75X40-MM) | |
| 43. | 8T-4186M | [6] | BOLT(M10X1.5X40-MM) | |
| 44. | 8T-4189M | [12] | BOLT(M8X1.25X20-MM) | |
| 45. | 8T-4195M | [8] | BOLT(M10X1.5X30-MM) | |
| 46. | 8T-4224 | [26] | WASHER-HARD(8.8X16X2-MM THK) | |
| 47. | 8T-4908M | [11] | BOLT(M8X1.25X25-MM) | |
| 48. | 8T-7547M | [8] | BOLT(M8X1.25X30-MM) | |
| 49. | 9X-2038 | [8] | WASHER(7X19X2-MM THK) | |
| 50. | 222-8450E | | SEAL(89-CM) | |
| 51. | 222-5093E | | SEAL(220-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
