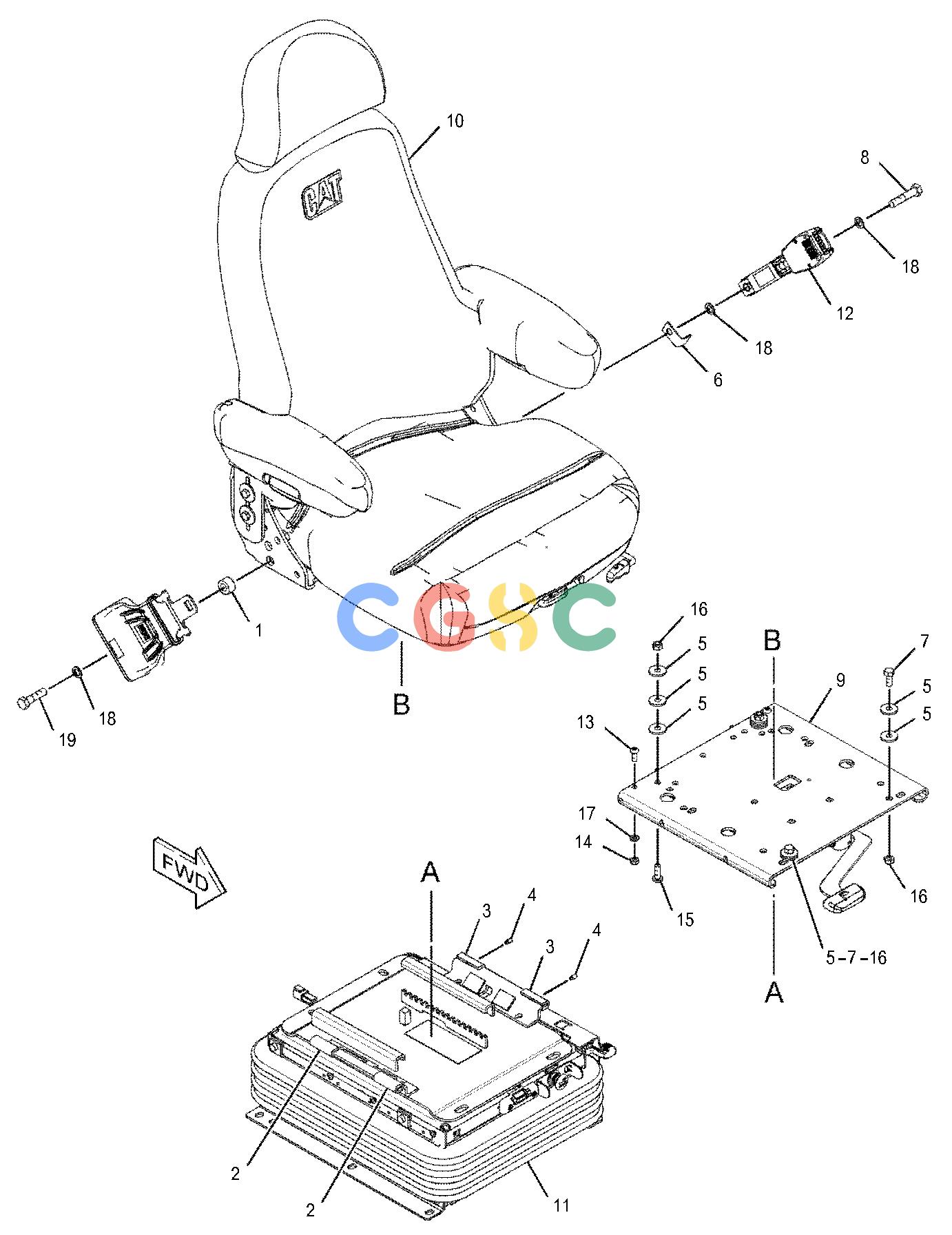

| 1. | 1S-4305 | [1] | SPACER(0.531X1X0.56-IN THK) | |
| 2. | 149-4745 | [2] | KIT-SLIDER BLOCK(SUSPENSION SEAT) | |
| | | | (EACH INCLUDES SLIDER BLOCKS & BOLT) |
| 3. | 161-9289 | [2] | BLOCK-SLIDER | |
| 4. | 173-5787 | [2] | SETSCREW(1/4-20-THD) | |
| 5. | 195-7055 | [10] | WASHER-HARD(9.9X28.5X3.2-MM THK) | |
| 6. | 209-6299 | [1] | ANGLE | |
| 7. | 234-3017 | [2] | BOLT(3/8-16X0.875-IN) | |
| 8. | 267-4850 | [1] | BOLT(M12X1.75X55-MM) | |
| 9. | 347-8750Y | [1] | ADJUSTER GP-SEAT | |
| 10. | 347-8768Y | [1] | SEAT GP-SUSPENSION(DELUXE, CLOTH) | |
| 11. | 347-8771Y | [1] | SUSPENSION GP-SEAT(AIR, HEATED) | |
| 12. | 353-6193Y | [1] | SEAT BELT GP(RETRACTABLE, 3-IN) | |
| 13. | 030-8294 | [2] | SCREW-BUTTON HEAD(5/16-18-THD) | |
| 14. | 031-4155 | [2] | LOCKNUT(5/16-18-THD) | |
| 15. | 171-1230 | [2] | SCREW-BUTTON HEAD(3/8-16X1-IN) | |
| 16. | 2K-4973 | [4] | LOCKNUT(3/8-16-THD) | |
| 17. | 3B-4505 | [2] | LOCKWASHER | |
| 18. | 7X-0599 | [3] | WASHER-HARD(13X20X2-MM THK) | |
| 19. | 8T-4184M | [1] | BOLT(M12X1.75X45-MM) | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
