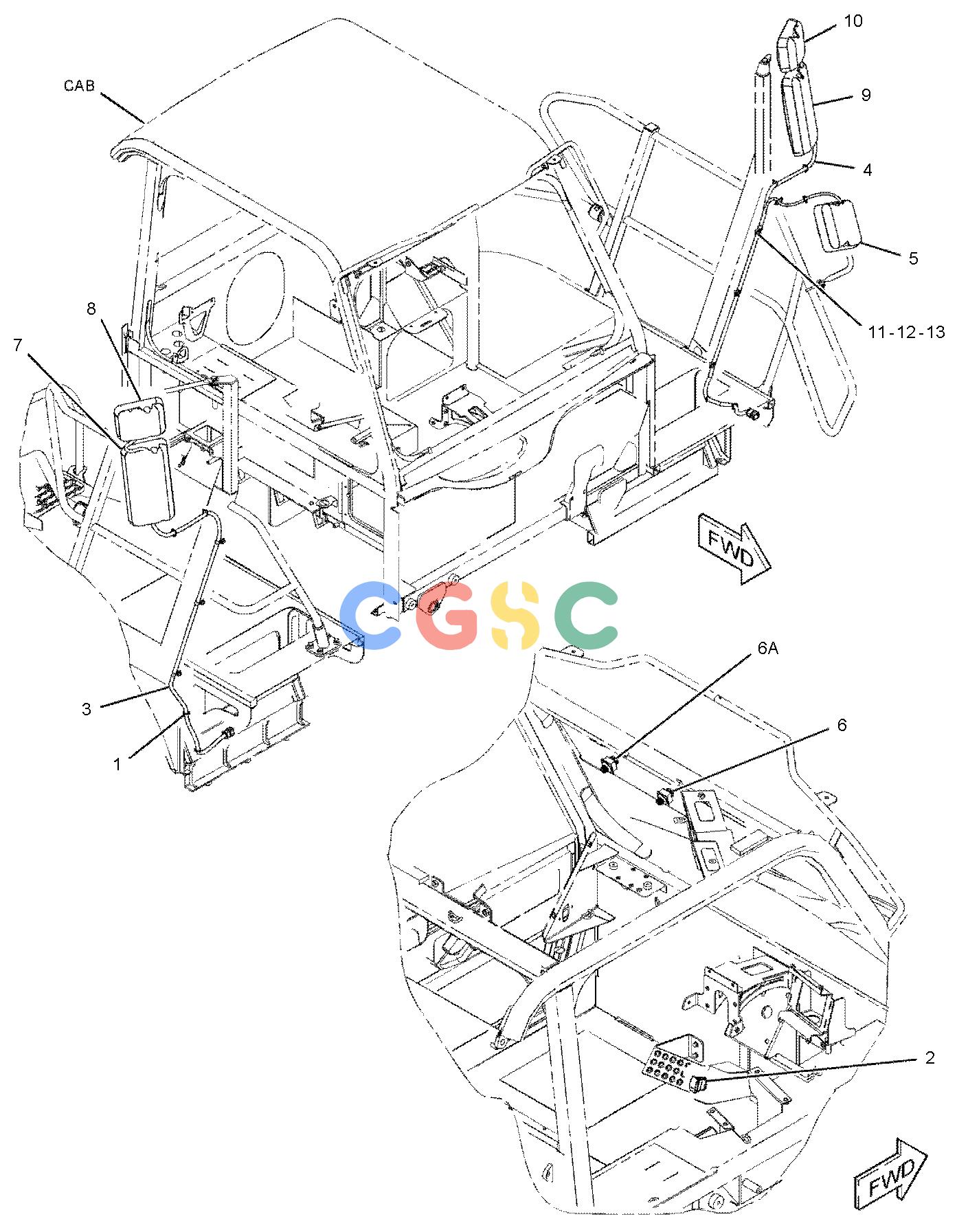

| 1. | 3S-2093 | [13] | STRAP-CABLE | |
| 2. | 271-2824 | [1] | SWITCH AS-ROCKER(HEATED MIRROR) | |
| 3. | 301-8353Y | [1] | HARNESS AS-WIRING(MIRROR, RH)(POWER, HEATED) | |
| 4. | 301-8354Y | [1] | HARNESS AS-WIRING(MIRROR, LH)(POWER, HEATED) | |
| 5. | 327-7732 | [1] | MIRROR AS-CONVEX | |
| | 326-8729 | [1] | COVER AS-REAR | |
| 6. | 337-6640 | [1] | SWITCH AS-POSITION(MIRROR)(MIRROR, RH) | |
| 6A. | 337-6640 | [1] | SWITCH AS-POSITION(MIRROR)(MIRROR, LH) | |
| | | | (EACH SWITCH AS INCLUDES) |
| | 8T-8729 | [8] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 231-2300 | [1] | RECEPTACLE AS-CONNECTOR(8-PIN) | |
| 7. | 373-1754 | [1] | MIRROR-REAR VIEW | |
| 8. | 353-3585 | [1] | MIRROR-CONVEX(RH) | |
| 9. | 373-1753 | [1] | MIRROR-REAR VIEW | |
| 10. | 353-3587 | [1] | MIRROR-CONVEX(LH) | |
| 11. | 8M-2770 | [6] | CLIP(LOOP) | |
| 12. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 13. | 8T-4191M | [6] | BOLT(M10X1.5X16-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
