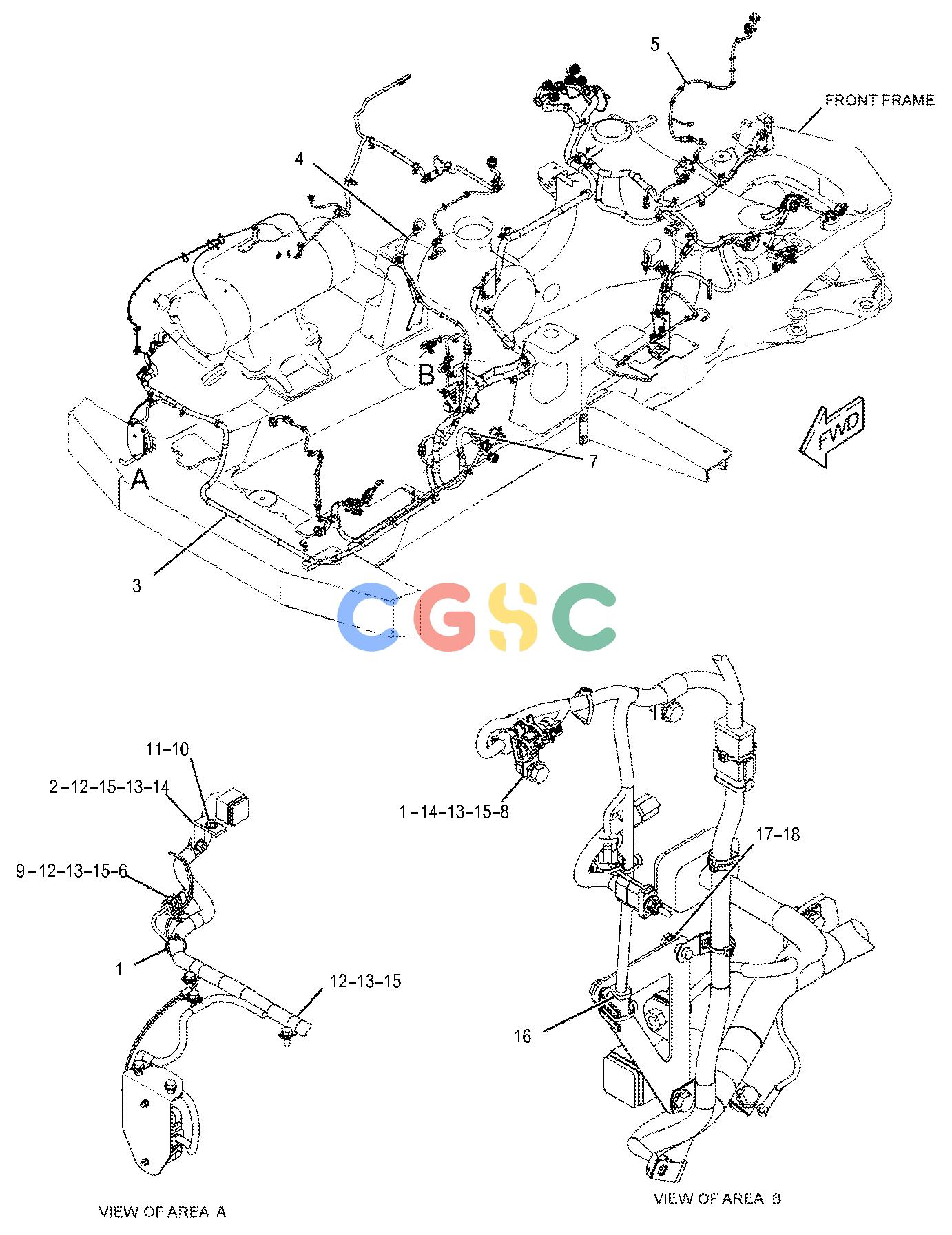

| 1. | 3S-2093 | [16] | STRAP-CABLE | |
| 2. | 6U-2703 | [1] | BRACKET-ANGLE | |
| 3. | 336-2818 | [1] | HARNESS AS-WIRING(CLEAN EMISSIONS MODULE) | |
| | 8T-8729 | [5] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9W-0852 | [2] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 110-6845 | [2] | PLUG AS-CONNECTOR(40-PIN) | |
| | | | (EACH INCLUDES) |
| | 110-6844 | [1] | SEAL | |
| | 174-0503 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 230-5010 | [1] | PLUG AS-CONNECTOR(6-PIN) | |
| | 264-7032 | [1] | SEAL-CONNECTOR | |
| | 8T-8737 | [29] | PLUG-SEAL | |
| | 102-8806 | [1] | KIT-RECEPTACLE(8-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 134-2540 | [1] | RECEPTACLE AS-CONNECTOR(3-PIN) | |
| | 9X-3402 | [4] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 8T-8730 | [52] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 126-1768 | [3] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(7-CM) | |
| | 125-7874E | | TUBE-HEAT SHRINK(5.72-MM DIA)(15-CM) | |
| 4. | 336-2819 | [1] | HARNESS AS-WIRING(AIR, FUEL, START AID) | |
| | 8T-8729 | [9] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9W-0852 | [3] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 281-8801 | [1] | PLUG AS-CONNECTOR(2-PIN) | |
| | 264-7029 | [1] | SEAL-CONNECTOR | |
| | 230-4011 | [1] | PLUG AS-CONNECTOR(2-PIN) | |
| | 264-7029 | [1] | SEAL-CONNECTOR | |
| | 238-8245 | [1] | PLUG AS-CONNECTOR(2-PIN) | |
| | 264-7029 | [1] | SEAL-CONNECTOR | |
| | 281-8803 | [1] | PLUG AS-CONNECTOR(3-PIN) | |
| | 264-7030 | [1] | SEAL-CONNECTOR | |
| | 8T-8737 | [1] | PLUG-SEAL | |
| | 102-8801 | [1] | KIT-RECEPTACLE(12-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 274-3780 | [1] | CAP-SEAL | |
| | 9X-3402 | [9] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 8T-8730 | [4] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(5-CM) | |
| 5. | 341-3683Y | [1] | WIRING GP-FRONT | |
| 6. | 361-1816 | [1] | RECEPTACLE AS-CONNECTOR(6-PIN) | |
| 7. | 3S-8665 | [1] | CLIP(LOOP) | |
| 8. | 4P-7581 | [1] | CLIP(LADDER) | |
| 9. | 4P-8134 | [1] | CLIP(LADDER) | |
| 10. | 5C-7261M | [1] | NUT(M8X1.25-THD) | |
| 11. | 5P-4116 | [2] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 12. | 6D-4246 | [10] | CLIP(LOOP) | |
| 13. | 8T-4121 | [7] | WASHER-HARD(11X21X2.5-MM THK) | |
| 14. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 15. | 8T-4136M | [5] | BOLT(M10X1.5X25-MM) | |
| 16. | 274-3774 | [1] | CAP-CONNECTOR | |
| 17. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 18. | 8T-4908M | [2] | BOLT(M8X1.25X25-MM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
