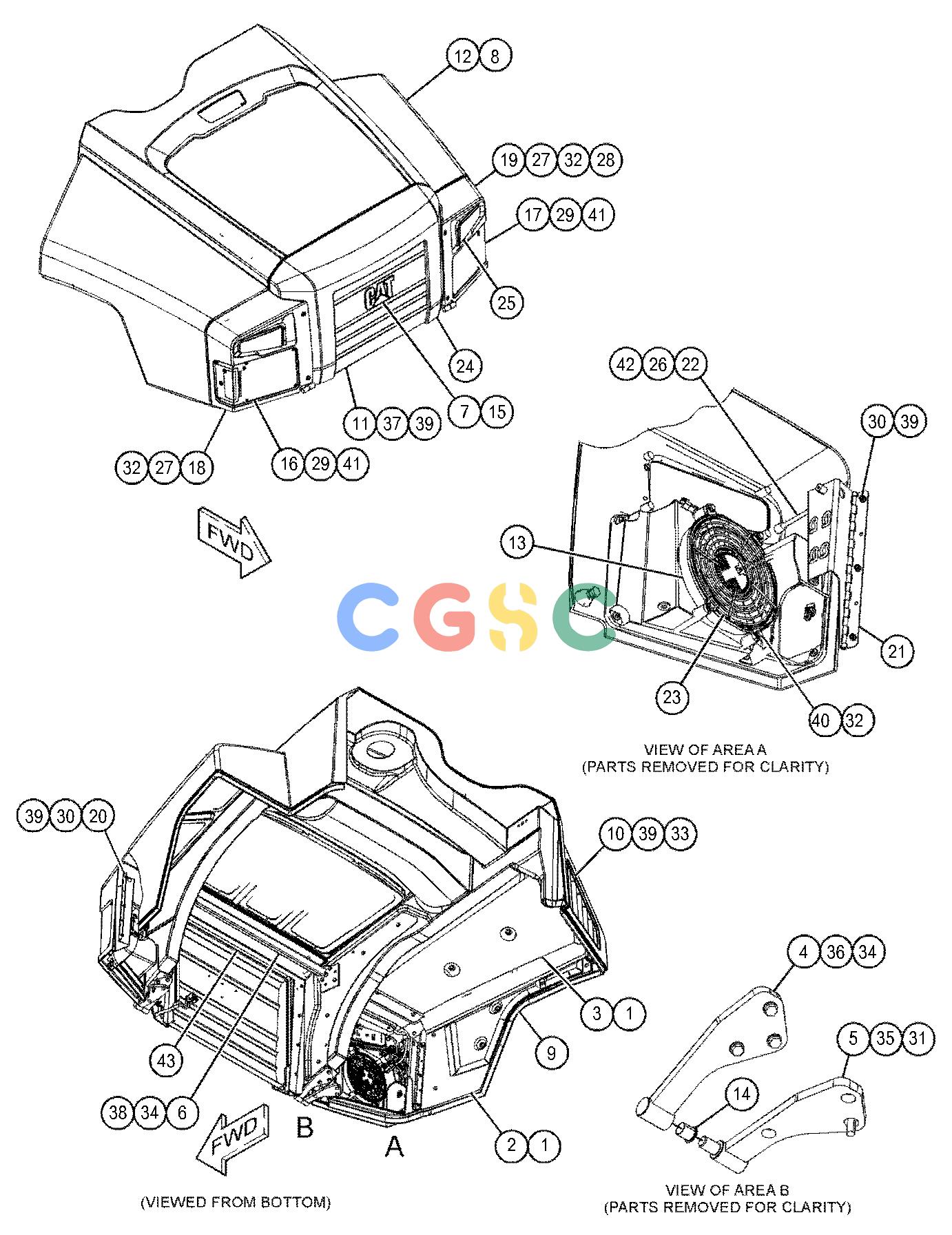

| 1. | 325-9311 | [12] | FASTENER(CLIP) | |
| 2. | 358-1465 | [1] | SHIELD-HEAT | |
| 3. | 358-1466 | [1] | SHIELD-HEAT | |
| 4. | 359-5892 | [2] | HINGE AS | |
| 5. | 359-5895 | [2] | HINGE AS | |
| 6. | 372-2830 | [1] | BRACKET AS | |
| 7. | 374-3455 | [1] | PLATE-IDENTIFICATION(CAT) | |
| 8. | 375-0094 | [1] | SEAL AS(LH) | |
| | 280-7618E | | SEAL(300-CM) | |
| 9. | 375-0095 | [1] | SEAL AS(RH) | |
| | 280-7618E | | SEAL(280-CM) | |
| 10. | 384-5270 | [1] | VENT(REAR) | |
| 11. | 395-1776 | [1] | GRILL AS | |
| 12. | 397-6696Y | [1] | HOOD GP-ENGINE(LOW TONE) | |
| 13. | 433-5882 | [1] | FAN AS(24-VOLT, 9-BLADE) | |
| | 177-9645 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 171-0596 | [1] | RECEPTACLE AS-CONNECTOR(3-PIN) | |
| | 3E-3371 | [1] | WEDGE-RECEPTACLE LOCK(3-PIN) | |
| 14. | 416-5840 | [2] | BUSHING-FLANGE | |
| 15. | 417-9992 | [4] | NUT-PUSH ON | |
| 16. | 420-0175Y | [1] | HOOD & DOOR GP(SIDE PANEL, RH) | |
| 17. | 420-0187 | [1] | HOOD AS(SIDE PANEL, LH) | |
| 18. | 420-5801 | [1] | PANEL AS(RH) | |
| 19. | 420-5803 | [1] | PANEL AS(LH) | |
| 20. | 421-3855 | [1] | HINGE AS(LH) | |
| | 5G-8871M | [1] | BOSS(M6X1-THD) | |
| | 7T-1099 | [1] | LINK | |
| | 8T-3612M | [3] | NUT-WELD(M8X1.25-THD) | |
| 21. | 421-3858 | [1] | HINGE AS(RH) | |
| | 5G-8871M | [1] | BOSS(M6X1-THD) | |
| | 7T-1099 | [4] | LINK | |
| | 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | |
| 22. | 421-5359 | [1] | TUBE | |
| 23. | 425-8004 | [1] | GUARD AS-FAN | |
| 24. | 437-5176 | [1] | PANEL AS(GRILL) | |
| 25. | 489-4748Y | [1] | WIRING GP-HOOD(LOW TONE) | |
| 26. | 132-3877M | [1] | BOLT(M6X1X120-MM) | |
| 27. | 216-7352M | [4] | SCREW-TRUSS HEAD(M8X1.25X30-MM) | |
| 28. | 245-1094 | [4] | NUT-RETAINING(PUSH ON) | |
| 29. | 3E-8020M | [12] | SCREW-TRUSS HEAD(M6X1X25-MM) | |
| 30. | 3T-0852M | [6] | LOCKNUT(M8X1.25-THD) | |
| 31. | 5P-1076 | [2] | WASHER-HARD(13.5X30X4-MM THK) | |
| 32. | 5P-4116 | [8] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 33. | 6V-9189M | [4] | LOCKNUT(M8X1.25-THD) | |
| 34. | 8T-4121 | [14] | WASHER-HARD(11X21X2.5-MM THK) | |
| 35. | 8T-4183M | [2] | BOLT(M12X1.75X40-MM) | |
| 36. | 8T-4186M | [6] | BOLT(M10X1.5X40-MM) | |
| 37. | 8T-4189M | [11] | BOLT(M8X1.25X20-MM) | |
| 38. | 8T-4195M | [8] | BOLT(M10X1.5X30-MM) | |
| 39. | 8T-4224 | [29] | WASHER-HARD(8.8X16X2-MM THK) | |
| 40. | 8T-7547M | [12] | BOLT(M8X1.25X30-MM) | |
| 41. | 9X-2038 | [12] | WASHER(7X19X2-MM THK) | |
| 42. | 9X-8256 | [1] | WASHER(6.6X12X2-MM THK) | |
| 43. | 417-1541E | | SEAL(212-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
