Pos.	Part No	Qty	Parts name
1.	529-6497	[1]	BRACKET
2.	6U-0455	[14]	STRAP
3.	6U-0456	[12]	STRAP
4.	6V-0852	[1]	CAP-DUST
5.	9F-2167	[1]	SCREW-PURGE(3/8-24X1.164-IN)
6.	108-8393	[1]	CAP
7.	148-8363	[1]	ELBOW AS
	3K-0360	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-9876	[1]	ELBOW
8.	148-8364	[2]	ELBOW AS
			(EACH INCLUDES)
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8625	[1]	ELBOW
9.	148-8366	[2]	ELBOW AS
			(EACH INCLUDES)
	6V-8397	[2]	SEAL-O-RING
	6V-8987	[1]	ELBOW
10.	148-8370	[3]	ELBOW AS
			(EACH INCLUDES)
	6V-8398	[1]	SEAL-O-RING
	6V-9851	[1]	ELBOW
11.	148-8371	[1]	ELBOW AS
	6V-8397	[1]	SEAL-O-RING
	8C-8988	[1]	ELBOW
12.	148-8378	[1]	ELBOW AS
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8724	[1]	ELBOW
13.	148-8380	[2]	ELBOW AS
			(EACH INCLUDES)
	6V-8398	[2]	SEAL-O-RING
	6V-8988	[1]	ELBOW
14.	148-8381	[1]	ELBOW AS
	3D-2824	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	8T-5429	[1]	ELBOW
15.	148-8428	[1]	TEE AS
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[2]	SEAL-O-RING
	6V-8782	[1]	TEE
16.	150-4037	[1]	TEE AS
	6V-8398	[2]	SEAL-O-RING
	6V-9844	[1]	TEE-SWIVEL
17.	150-4043	[2]	CONNECTOR AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-9873	[1]	CONNECTOR
18.	150-4050	[1]	ELBOW AS
	3J-1907	[1]	SEAL-O-RING
	8T-0788	[1]	ELBOW
19.	153-6241	[1]	ELBOW AS
	6V-8398	[1]	SEAL-O-RING
	8C-8989	[1]	ELBOW
20.	155-6258	[1]	ELBOW AS
	3D-2824	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	127-1647	[1]	ELBOW
21.	164-5561	[1]	ADAPTER AS
	2M-9780	[1]	SEAL-O-RING
	5P-1042	[1]	ADAPTER-O-RING
22.	164-5567	[1]	COUPLER AS-QUICK DISCONNECT(MALE)
	6V-3965	[1]	FITTING(QUICK DISCONNECT)
	214-7568	[1]	SEAL-O-RING
23.	164-5624	[1]	ELBOW AS
	3J-1907	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	9X-2085	[1]	ELBOW
24.	165-4933	[1]	ELBOW AS
	6V-8990	[1]	ELBOW
	6V-9746	[2]	SEAL-O-RING
25.	193-2120	[4]	GROMMET
26.	225-6721I	[1]	HOSE AS
27.	255-6195	[1]	CLAMP AS
28.	268-1621	[1]	FITTING AS
	3D-2824	[1]	SEAL-O-RING
	6V-9746	[1]	SEAL-O-RING
	124-1212	[1]	FITTING
29.	281-5898	[2]	TEE AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-8398	[2]	SEAL-O-RING
	153-6270	[1]	TEE
30.	290-5562	[8]	MOUNT(DUAL SWIVEL)
31.	333-4731Y	[1]	ACCUMULATOR GP-BRAKE(CHARGED)
32.	374-5789Y	[1]	VALVE GP-SOLENOID(SERVICE BRAKE)
33.	451-9601	[1]	BRACKET AS
34.	485-5727I	[1]	HOSE AS
35.	485-5728I	[1]	HOSE AS
36.	485-5730I	[1]	HOSE AS
37.	485-5731I	[1]	HOSE AS
38.	485-9161I	[1]	HOSE AS
39.	485-9163I	[1]	HOSE AS
40.	485-9164I	[1]	HOSE AS
41.	485-9166I	[1]	HOSE AS
42.	512-6174	[1]	TUBE AS
43.	546-5841	[1]	TEE AS
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	515-1971	[1]	TEE
44.	517-0124	[1]	BRACKET AS
45.	517-0125	[1]	BRACKET AS
46.	522-3188	[1]	PLATE AS-BRACKET
47.	525-4527I	[1]	HOSE AS
48.	529-6494I	[1]	HOSE AS
49.	529-6495I	[1]	HOSE AS
50.	529-6496I	[1]	HOSE AS
51.	529-6498	[1]	PLATE
52.	106-5125	[1]	CLIP(SLOT)
53.	106-5126	[1]	CLIP(TAB)
54.	164-5586	[1]	TEE AS
	6V-8398	[1]	SEAL-O-RING
	7X-0871	[1]	TEE
55.	169-7403	[1]	ADAPTER AS
	3J-1907	[1]	SEAL-O-RING
	6G-3432	[1]	ADAPTER
56.	2P-1293	[1]	LOCKNUT(1-3/16-12-THD)
57.		[1]	TEE AS
	3K-0360	[1]	SEAL-O-RING
	6V-9746	[2]	SEAL-O-RING
	310-5902	[1]	TEE
58.	5P-4116	[2]	WASHER-HARD(8.8X20.5X2-MM THK)
59.	5P-7468	[2]	CLIP(SLOT)
60.	5P-7469	[2]	CLIP(TAB)
61.	6D-4636	[1]	CLIP(LOOP)
62.	6V-0545	[2]	GROMMET
63.	6V-1867	[4]	CLIP(SLOT)
64.	6V-1868	[4]	CLIP(TAB)
65.	6V-8397	[1]	SEAL-O-RING
66.	6V-9168	[2]	NUT(11/16-16-THD)
67.	6V-9169	[2]	NUT(13/16-16-THD)
68.	7X-0531	[1]	WASHER-HARD(31X52.5X6-MM THK)
69.	8T-4121	[9]	WASHER-HARD(11X21X2.5-MM THK)
70.	8T-4123	[2]	WASHER(22X35X3.5-MM THK)
71.	8T-4137M	[3]	BOLT(M10X1.5X20-MM)
72.	8T-4139M	[3]	BOLT(M12X1.75X30-MM)
73.	8T-4186M	[3]	BOLT(M10X1.5X40-MM)
74.	8T-4195M	[3]	BOLT(M10X1.5X30-MM)
75.	8T-4223	[6]	WASHER-HARD(13.5X25.5X3-MM THK)
76.	8T-4908M	[2]	BOLT(M8X1.25X25-MM)
77.	8T-4956M	[3]	BOLT(M12X1.75X35-MM)
78.	8T-4994	[1]	WASHER-HARD(20X36.5X3.5-MM THK)
79.	8T-5005M	[2]	BOLT(M10X1.5X70-MM)
80.	8T-5360	[2]	WASHER(12X22.5X2.5-MM THK)
81.	9X-7456	[1]	GROMMET
82.	9X-8257	[1]	WASHER(17.5X30X3.5-MM THK)
83.	544-4848	[1]	ADAPTER AS
	6V-8398	[1]	SEAL-O-RING
	544-4847	[1]	ADAPTER
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION

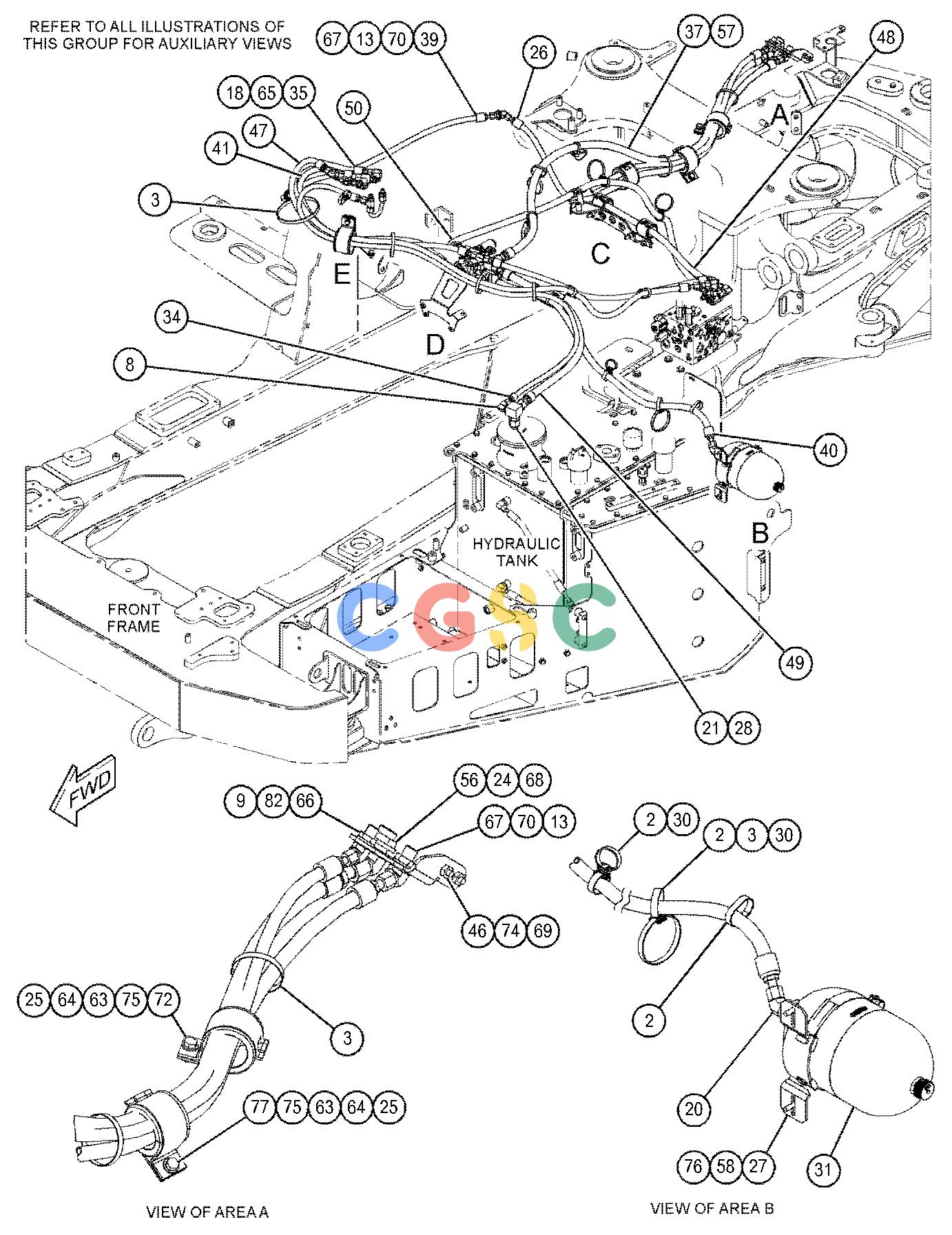

卡特零件查询（740） 483-9470: LINES GP-SERVICE BRAKE
