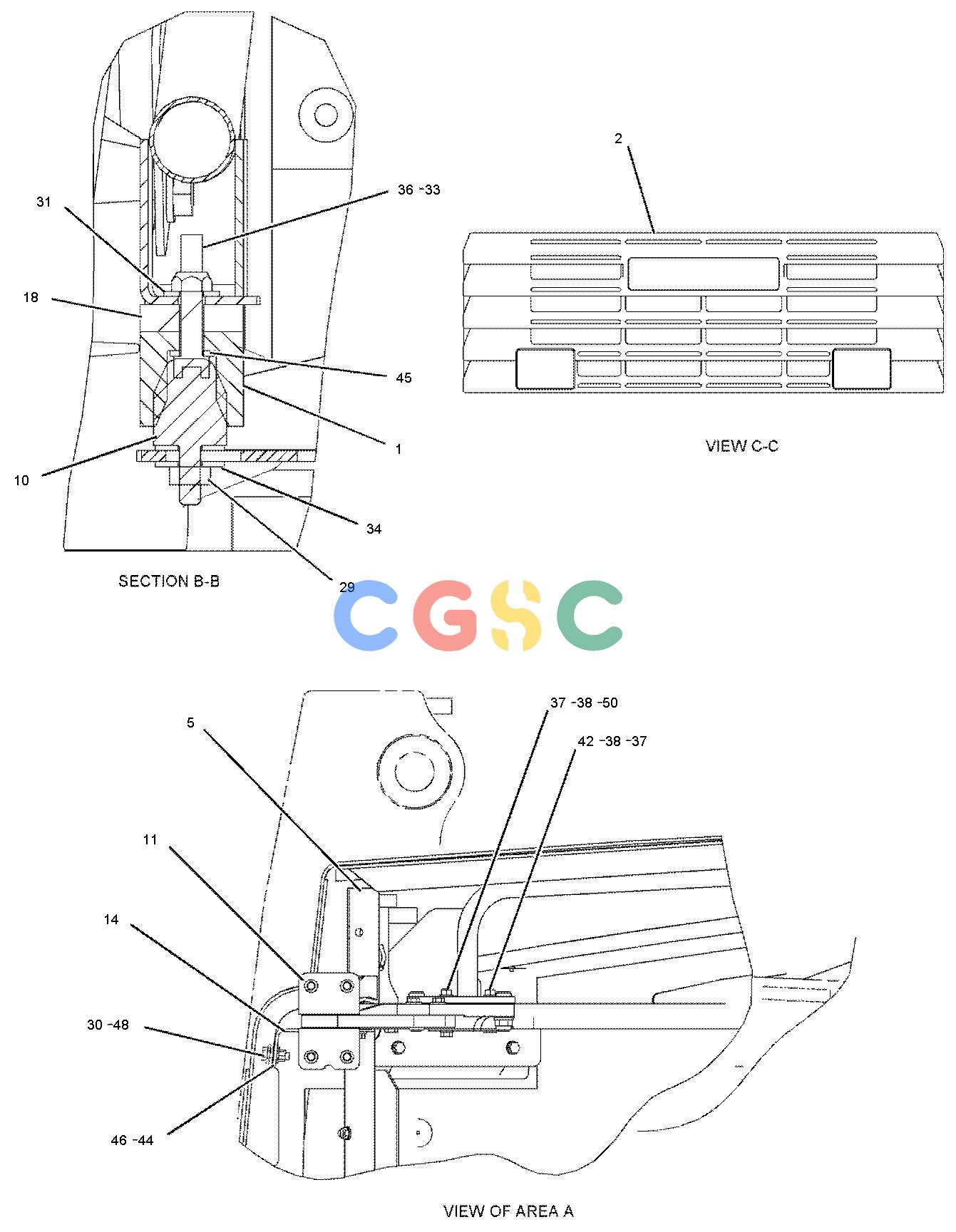

| 1. | 9G-2773 | [2] | SOCKET | |
| 2. | 187-4425 | [1] | GRILL AS | |
| | 4I-7924 | [2] | WASHER(4.5X40X1.2-MM THK) | |
| | 123-0707M | [2] | SCREW-HEX SOCKET(M4X0.7X20-MM) | |
| | 178-9983M | [2] | LOCKNUT(M4X0.7-THD) | |
| | 196-1044 | [1] | PLATE(CATERPILLAR) | |
| 3. | 260-2608C | [1] | FRAME AS-HOOD | |
| 4. | 190-0282 | [1] | DUCT | |
| 5. | 190-2171 | [1] | BRACKET AS(RH) | |
| 6. | 190-2172 | [1] | BRACKET AS(LH) | |
| | | | (EACH BRACKET AS INCLUDES) |
| | 8T-3597M | [2] | NUT-WELD(M12X1.75-THD) | |
| 7. | 191-5963Y | [1] | TILT GP-HOOD(RH) | |
| 8. | 191-5964 | [1] | HOOD AS | |
| | 202-7837 | [22] | SUPPORT | |
| | 218-3528 | [2] | STRIP | |
| 9. | 192-5453 | [1] | SUPPORT AS-HOOD | |
| 10. | 193-3809 | [2] | PIN-GUIDE | |
| 11. | 260-2607CY | [1] | TILT GP-HOOD(LH) | |
| 12. | 202-7838 | [22] | RETAINER | |
| 13. | 202-7839 | [22] | FASTENER | |
| 14. | 206-8077 | [2] | PLATE-ANGLE | |
| 15. | 209-2287 | [1] | BAFFLE | |
| 16. | 209-2288 | [1] | PLATE | |
| 17. | 210-1917 | [1] | GRILL | |
| 18. | 216-2218 | [2] | PLATE-SPACER | |
| 19. | 217-0561 | [1] | LINER(TOP RH) | |
| 20. | 217-0562 | [1] | LINER(TOP LH) | |
| 21. | 217-0563 | [1] | LINER(TOP LH) | |
| 22. | 217-0564 | [1] | LINER(LOWER RH) | |
| 23. | 217-0565 | [1] | LINER(LOWER LH) | |
| 24. | 217-0566 | [1] | LINER(UPPER RH) | |
| 25. | 217-0567 | [1] | LINER(UPPER LH) | |
| 26. | 218-2529 | [8] | PLUG | |
| 27. | 237-5510Y | [1] | WIRING GP-LIGHTING | |
| 28. | 131-3540M | [8] | LOCKNUT(M8X1.25-THD) | |
| 29. | 5C-7261M | [6] | NUT(M8X1.25-THD) | |
| 30. | 5P-1076 | [4] | WASHER-HARD(13.5X30X4-MM THK) | |
| 31. | 5P-4116 | [2] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 32. | 6V-7744M | [4] | LOCKNUT(M10X1.5-THD) | |
| 33. | 6V-9189M | [2] | LOCKNUT(M8X1.25-THD) | |
| 34. | 7X-0579 | [4] | WASHER-HARD(8.8X25.5X2-MM THK) | |
| 35. | 7X-7729 | [25] | WASHER(11X25X3-MM THK) | |
| 36. | 8T-0338M | [2] | BOLT-SOCKET HEAD(M8X1.25X45-MM) | |
| 37. | 8T-4121 | [26] | WASHER-HARD(11X21X2.5-MM THK) | |
| 38. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 39. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 40. | 8T-4137M | [8] | BOLT(M10X1.5X20-MM) | |
| 41. | 8T-4139M | [8] | BOLT(M12X1.75X30-MM) | |
| 42. | 8T-4186CM | [6] | BOLT(M10X1.5X40-MM) | |
| 43. | 8T-4192M | [4] | BOLT(M12X1.75X25-MM) | |
| 44. | 8T-4223 | [16] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 45. | 8T-4224 | [6] | WASHER-HARD(8.8X16X2-MM THK) | |
| 46. | 8T-4244M | [4] | NUT(M12X1.75-THD) | |
| 47. | 8T-4908M | [8] | BOLT(M8X1.25X25-MM) | |
| 48. | 8T-4956M | [4] | BOLT(M12X1.75X35-MM) | |
| 49. | 8T-5005CM | [6] | BOLT(M10X1.5X70-MM) | |
| 50. | 8T-4172CM | [1] | BOLT(M10X1.5X80-MM) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
