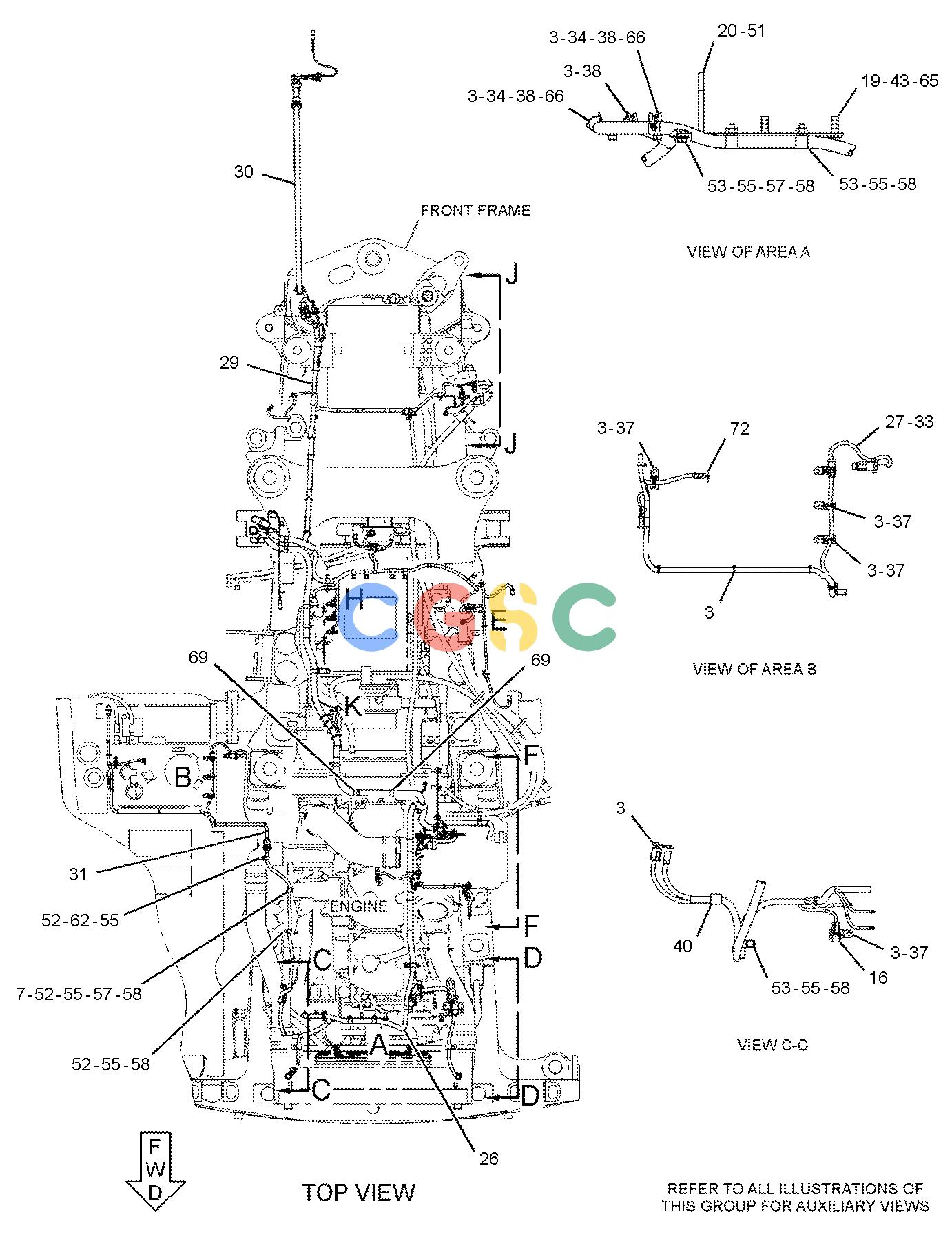

卡特零件查询（740） 297-6526: WIRING GP-REAR

作者：广数供应链运营团队
浏览数：
时间：2025-01-24 06:29:48
Parts Contact me WhatsApp

工程机械零件图册查询

专业 覆盖挖掘机、装载机、推土机全系配件
立即查询
Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴 Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴
Pos.Part NoQtyParts nameComments
1. 2V-2043 [1]NUT-BULKHEAD(1-5/8-12-THD)
2. 3E-6451 [1]SWITCH GP-TEMPERATURE(PARKING BRAKE OIL)
102-8802 [1]KIT-RECEPTACLE(2-PIN)
(INCLUDES RECEPTACLE AS & WEDGE)
8T-8729 [2]PIN-CONNECTOR(16-GA TO 18-GA)
3. 3S-2093C[86]STRAP-CABLE
4. 5P-6028D WIRE(8-GA)(1-M)
5. 6U-2703C[4]BRACKET-ANGLE
6. 7F-0880 [1]GASKET-COPPER
7. 7U-9542 [2]PLATE-CLAMPING
8. 102-2240Y[1]SENSOR GP-TEMPERATURE(3-PIN)(OUTPUT TRANSFER GEAR OIL)
9. 114-5333 [1]SWITCH AS-PRESSURE(HIGH LOW)(REFRIGERANT)
102-8802 [1]KIT-RECEPTACLE(2-PIN)
(INCLUDES RECEPTACLE AS & WEDGE)
8T-8729 [2]PIN-CONNECTOR(16-GA TO 18-GA)
10. 118-3534Y[1]SWITCH GP-MAGNETIC(24-VOLT)(START RELAY)
11. 122-7052 [1]SPACER(10.5X20X28-MM THK)
12. 134-2252Y[1]SENSOR GP-TEMPERATURE(8-VOLT)(TORQUE CONVERTER OIL)
13. 145-5181 [1]SPACER(13.5X25X12-MM THK)
14. 149-2612 [1]RELAY AS(24-VOLT)(START)
8T-8729 [2]PIN-CONNECTOR(16-GA TO 18-GA)
9W-0852 [4]PIN-CONNECTOR(14-GA TO 16-GA)
102-8805 [1]KIT-RECEPTACLE(6-PIN)
(INCLUDES RECEPTACLE AS & WEGDE)
15. 165-5970Y[1]SWITCH GP-TOGGLE(FUEL PRIMING PUMP)
16. 189-3158 [2]SUPPRESSOR-ARC
17. 189-5746Y[1]SENSOR GP-SPEED(ENGINE)
18. 194-6722Y[1]SENSOR GP-PRESSURE(TURBOCHARGER INLET)
19. 205-5594 [1]PLATE AS
20. 205-5595 [1]PLATE
21. 206-6810 [1]BRACKET-MOUNTING
22. 211-8021 [2]BRACKET
23. 213-6947 [1]SWITCH GP-PRESSURE(PARKING BRAKE)
102-8803 [1]KIT-RECEPTACLE(3-PIN)
(INCLUDES RECEPTACLE AS & WEDGE)
8T-8729 [3]PIN-CONNECTOR(16-GA TO 18-GA)
5P-6008D TUBE-HEAT SHRINK(6.35-MM DIA)(0.2-M)
8T-5677D SLEEVE(0.6-M)
25. 265-0764 [1]PLATE AS
26. 301-8346 [1]HARNESS AS-FRONT CHASSIS
102-8802 [1]KIT-RECEPTACLE(2-PIN)
102-8803 [1]KIT-RECEPTACLE(3-PIN)
(EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE)
155-2270 [9]KIT-CONNECTING PLUG(2-PIN)
155-2274 [3]KIT-CONNECTING PLUG(6-PIN)
155-2260 [2]KIT-CONNECTING PLUG(3-PIN)
155-2265 [1]KIT-CONNECTING PLUG(8-PIN)
(EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL)
8T-8729 [3]PIN-CONNECTOR(16-GA TO 18-GA)
5P-3454 [1]TERMINAL-RING(4-GA, 5/16-IN SCREW)
180-9340 [17]SOCKET-CONNECTOR(14-GA TO 18-GA)
8T-8730 [33]SOCKET-CONNECTOR(16-GA TO 18-GA)
9W-0844 [50]SOCKET-CONNECTOR(14-GA TO 16-GA)
2L-8066 [1]TERMINAL-RING(10-GA TO 12-GA, NO. 10 SCREW)
2L-8067 [3]TERMINAL-RING(10-GA TO 12-GA, 1/4-IN SCREW)
2L-8069 [2]TERMINAL-RING(2-GA TO 10-GA, 3/8-IN SCREW)
2L-8076 [2]TERMINAL-RING(14-GA TO 16-GA, NO. 10 SCREW)
7G-7917 [7]PLUG-SEAL
7G-7918 [2]PLUG-SEAL
7G-7920 [1]PLUG-SEAL
8N-1518 [1]PLUG AS-CONNECTOR(25-PIN)
8N-1521 [1]BELL AS-END
8N-1541 [2]SOCKET-CONNECTOR(12-GA TO 14-GA)
8N-1543 [1]SOCKET-CONNECTOR(10-GA)
8N-1549 [1]SOCKET-CONNECTOR(4-GA)
8T-8737 [64]PLUG-SEAL
8T-8827 [1]BOOT(RED)
9X-0141 [1]PLUG AS-CONNECTOR(40-PIN)
3E-8557M[1]BOLT(M5X0.8X39.37-MM)
3E-4367 [1]RING-RETAINING
9X-3490 [2]SEAL-CONNECTOR(40-PIN)
9X-3506 [1]RESISTOR(120-OHMS, 0.5-WATT)
9X-6772 [1]STRAP-CABLE
9X-6857 [9]SOCKET-CONNECTOR(16-GA TO 18-GA)
119-3662E TUBE-HEAT SHRINK(10.85-MM DIA)(20-CM)
125-7875E TUBE-HEAT SHRINK(7.44-MM DIA)(40-CM)
126-1768 [4]SOCKET-CONNECTOR(14-GA TO 16-GA)
160-7689 [1]PLUG AS-CONNECTOR(70-PIN)
159-9322 [1]SEAL-O-RING
273-6315 [1]PLUG AS(9-PIN)
274-8267 [1]PLUG(4-GA)
27. 313-5104 [1]SWITCH AS-PRESSURE(PRIMARY STEERING OIL)
102-8803 [1]KIT-RECEPTACLE(3-PIN)
(INCLUDES RECEPTACLE AS & WEDGE)
8T-8729 [3]PIN-CONNECTOR(16-GA TO 18-GA)
9X-1813E SLEEVE(28-CM)
28. 317-7145 [1]PLATE AS
29. 325-6954 [1]HARNESS AS-CHASSIS(TRANSMISSION)
180-9340 [4]SOCKET-CONNECTOR(14-GA TO 18-GA)
102-8802 [2]KIT-RECEPTACLE(2-PIN)
102-8803 [1]KIT-RECEPTACLE(3-PIN)
102-8806 [1]KIT-RECEPTACLE(8-PIN)
(EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE)
155-2270 [13]KIT-CONNECTING PLUG(2-PIN)
155-2260 [2]KIT-CONNECTING PLUG(3-PIN)
(EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL)
8T-8729 [13]PIN-CONNECTOR(16-GA TO 18-GA)
8T-8730 [42]SOCKET-CONNECTOR(16-GA TO 18-GA)
9W-0852 [6]PIN-CONNECTOR(14-GA TO 16-GA)
9W-0844 [30]SOCKET-CONNECTOR(14-GA TO 16-GA)
8T-8737 [30]PLUG-SEAL
9X-4391 [1]PLUG AS-CONNECTOR(70-PIN)
3E-4367 [1]RING-RETAINING
3E-8557M[1]BOLT(M5X0.8X39.37-MM)
9X-5615 [2]SEAL(INTERFACE, 70-PIN)
119-3662E TUBE-HEAT SHRINK(10.85-MM DIA)(7-CM)
125-7875E TUBE-HEAT SHRINK(7.44-MM DIA)(20-CM)
30. 325-6958 [1]HARNESS AS-CHASSIS(HITCH)
155-2260 [2]KIT-CONNECTING PLUG(3-PIN)
155-2265 [2]KIT-CONNECTING PLUG(8-PIN)
155-2274 [2]KIT-CONNECTING PLUG(6-PIN)
(EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL)
9W-0844 [12]SOCKET-CONNECTOR(14-GA TO 16-GA)
206-7133I[1]HOSE AS
4S-6679 [2]ADAPTER
31. 335-2133 [1]HARNESS AS-CHASSIS(FUEL TANK)
102-8804 [1]KIT-RECEPTACLE(4-PIN)
102-8806 [1]KIT-RECEPTACLE(8-PIN)
(EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE)
155-2260 [1]KIT-CONNECTING PLUG(3-PIN)
155-2270 [2]KIT-CONNECTING PLUG(2-PIN)
155-2271 [1]KIT-CONNECTING PLUG(4-PIN)
(EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL)
8T-8729 [5]PIN-CONNECTOR(16-GA TO 18-GA)
8T-8730 [6]SOCKET-CONNECTOR(16-GA TO 18-GA)
9W-0852 [2]PIN-CONNECTOR(14-GA TO 16-GA)
9W-0844 [4]SOCKET-CONNECTOR(14-GA TO 16-GA)
8T-8737 [6]PLUG-SEAL
125-7874E TUBE-HEAT SHRINK(5.72-MM DIA)(5-CM)
125-7875E TUBE-HEAT SHRINK(7.44-MM DIA)(10-CM)
32. 3J-1907 [3]SEAL-O-RING
33. 3K-0360 [3]SEAL-O-RING
34. 4L-6454C[11]BOLT(3/8-16X1-IN)
35. 4P-7428 [1]CLIP(LADDER)
36. 4P-7429C[1]CLIP(LADDER)
37. 4P-7581 [20]CLIP(LADDER)
38. 4P-8134 [9]CLIP(LADDER)
39. 5C-2890M[6]NUT(M6X1-THD)
40. 5K-3294 [2]CLIP
41. 5M-3062 [1]BOLT(3/8-16X0.75-IN)
42. 5P-1075 [1]WASHER-HARD(10.2X22.5X3-MM THK)
43. 5P-2566 [2]BOLT(1/2-13X1.5-IN)
44. 5P-4115 [1]WASHER-HARD(7.2X19X2-MM THK)
45. 5P-9085C[2]CLIP(LOOP)
46. 5P-9297 [1]CLIP(LOOP)
47. 6D-3479 [6]CLIP(LOOP)
48. 6D-4244 [3]CLIP(LOOP)
49. 6D-4246 [3]CLIP(LOOP)
50. 7C-4354 [2]CLIP
51. 7X-0292 [1]BOLT(3/8-16X4.5-IN)
52. 8M-2770 [7]CLIP(LOOP)
53. 8M-2773 [7]CLIP(LOOP)
54. 8T-2501 [1]BOLT(3/8-16X2-IN)
55. 8T-4121C[42]WASHER-HARD(11X21X2.5-MM THK)
56. 8T-4122 [2]WASHER-HARD(17X32X3.5-MM THK)
57. 8T-4133CM[13]NUT(M10X1.5-THD)
58. 8T-4136CM[23]BOLT(M10X1.5X25-MM)
59. 8T-4137M[1]BOLT(M10X1.5X20-MM)
60. 8T-4138M[6]BOLT(M6X1X20-MM)
61. 8T-4185M[1]BOLT(M10X1.5X50-MM)
62. 8T-4186M[2]BOLT(M10X1.5X40-MM)
63. 8T-4192M[1]BOLT(M12X1.75X25-MM)
64. 8T-4196M[2]BOLT(M10X1.5X35-MM)
65. 8T-4223 [3]WASHER-HARD(13.5X25.5X3-MM THK)
66. 8T-4896C[13]WASHER-HARD(10.2X18.5X2.5-MM THK)
67. 8T-9377 [1]BOLT(3/8-16X2.25-IN)
68. 8T-9393 [2]BOLT(5/8-11X1.5-IN)
69. 9M-4972 [11]CLIP(LOOP)
70. 9X-7378 [1]SEAL-O-RING
71. 9X-8256 [11]WASHER(6.6X12X2-MM THK)
72. 274-3774 [1]CAP-CONNECTOR
73. 310-7300C[1]CLIP
74. 124-1479C[2]CLIP
C CHANGE FROM PREVIOUS TYPE
D ORDER BY THE METER
E ORDER BY THE CENTIMETER
I REFER TO HYDRAULIC INFORMATION SYSTEM
M METRIC PART
Y SEPARATE ILLUSTRATION
