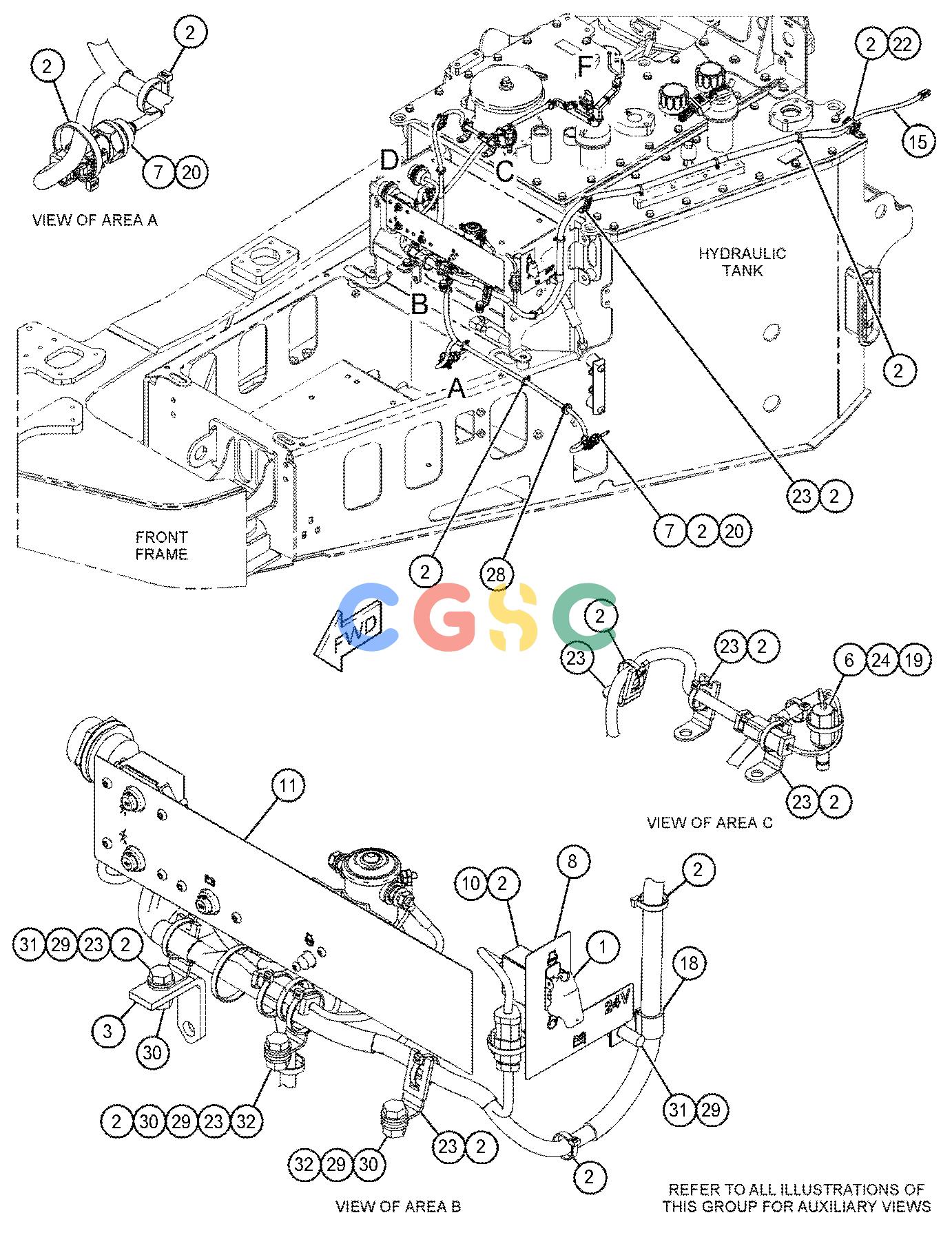

| 1. | 3E-5169 | [1] | GUARD-SWITCH | |
| 2. | 3S-2093 | [39] | STRAP-CABLE | |
| 3. | 6U-2703 | [1] | BRACKET-ANGLE | |
| 4. | 171-2205 | [2] | CIRCUIT BREAKER AS(40-AMPERE)(ACCESSORY POWER) | |
| 5. | 216-4970 | [1] | CIRCUIT BREAKER AS(120-AMPERE)(BATTERY) | |
| | | | (EACH CIRCUIT BREAKER AS INCLUDES) |
| | 1H-3244 | [2] | LOCKWASHER | |
| | 4E-5724 | [2] | WASHER(7X12X1-MM THK) | |
| | 8T-0122 | [2] | NUT-FULL(1/4-28-THD) | |
| 6. | 253-2673Y | [1] | SWITCH GP-PRESSURE | |
| 7. | 256-6453 | [2] | SENSOR-TEMPERATURE(2-PIN)(HYDRAULIC OIL) | |
| 8. | 343-7979 | [1] | PLATE-IDENTIFICATION(DISCONNECT) | |
| 9. | 353-2234 | [1] | WIRE AS(10-GA, RED) | |
| 10. | 353-4515 | [1] | SWITCH GP-TOGGLE(ENGINE SHUTDOWN) | |
| | 8T-8729 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | 112-4550E | | SLEEVE(19-CM) | |
| | 271-2178 | [1] | SWITCH AS-TOGGLE | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3633 | [1] | RING-LOCKING | |
| 11. | 354-0459 | [1] | PLATE-IDENTIFICATION(CIRCUIT BREAKER) | |
| 12. | 398-0940Y | [1] | SWITCH GP-MAGNETIC(24-VOLT)(START RELAY) | |
| 13. | 438-7280 | [1] | PLATE | |
| 14. | 438-7281 | [1] | PLATE | |
| 15. | 450-3180Y | [1] | HARNESS AS-PANEL | |
| 16. | 450-3181 | [1] | WIRE AS | |
| 17. | 139-4724 | [1] | CIRCUIT BREAKER AS(30-AMPERE)(DIESEL EXHAUST FLUID) | |
| | 6V-8378 | [2] | NUT(10-32-THD) | |
| | 8F-1434 | [2] | LOCKWASHER | |
| | 8T-0328 | [2] | WASHER-HARD(5.5X10X1-MM THK) | |
| 18. | 263-6342 | [1] | CLIP | |
| 19. | 3J-1907 | [1] | SEAL-O-RING | |
| 20. | 3K-0360 | [2] | SEAL-O-RING | |
| 21. | 4P-7428 | [2] | CLIP(LADDER) | |
| 22. | 4P-7581 | [1] | CLIP(LADDER) | |
| 23. | 4P-8134 | [7] | CLIP(LADDER) | |
| 24. | 5F-9144 | [1] | SEAL-O-RING | |
| 25. | 7U-4891 | [6] | SCREW(10-32X1-IN) | |
| 26. | 7U-4892 | [2] | SCREW(8-32X0.75-IN) | |
| 27. | 7V-9275 | [2] | STRAP | |
| 28. | 8P-8540 | [1] | GROMMET | |
| 29. | 8T-4121 | [10] | WASHER-HARD(11X21X2.5-MM THK) | |
| 30. | 8T-4133M | [3] | NUT(M10X1.5-THD) | |
| 31. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 32. | 8T-4137M | [5] | BOLT(M10X1.5X20-MM) | |
| 33. | 8T-4171M | [2] | BOLT(M6X1X12-MM) | |
| 34. | 9X-8256 | [2] | WASHER(6.6X12X2-MM THK) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
