Pos.	Part No	Qty	Parts name
1.	495-2461	[4]	BRACKET
2.	6U-0455	[3]	STRAP
3.	6U-0456	[1]	STRAP
4.	155-6258	[1]	ELBOW AS
	3D-2824	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	127-1647	[1]	ELBOW
5.	374-5789Y	[1]	VALVE GP-SOLENOID(SERVICE BRAKE)
6.	399-3116I	[1]	HOSE AS
7.	399-3117I	[1]	HOSE AS
8.	421-7694	[1]	TEE AS
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	421-7685	[1]	ADAPTER-TEE
9.	445-0112I	[1]	HOSE AS
10.	453-0757	[1]	TUBE AS
11.	453-0759I	[1]	HOSE AS
12.	453-3396	[1]	BRACKET AS
13.	453-5040	[1]	BRACKET AS
			(EACH BRACKET AS INCLUDES)
	8T-3490M	[3]	NUT-WELD(M10X1.5-THD)
	8T-3597M	[1]	NUT-WELD(M12X1.75-THD)
14.	453-5306I	[1]	HOSE AS
15.	453-7101	[2]	BRACKET AS
	8T-3490M	[2]	NUT-WELD(M10X1.5-THD)
16.	454-8830	[1]	TUBE AS
17.	456-3868	[1]	PLATE AS
	8T-3490M	[1]	NUT-WELD(M10X1.5-THD)
	8T-3597M	[1]	NUT-WELD(M12X1.75-THD)
18.	463-9112I	[1]	HOSE AS
19.	466-9023	[1]	TUBE AS
20.	467-8371	[1]	BRACKET AS
21.	467-8374	[1]	BRACKET AS
22.	468-1648	[1]	BRACKET AS
23.	494-1933Y	[1]	ADAPTER GP-MOUNTING
24.	494-9344	[1]	ADAPTER GP-MOUNTING
	148-8366	[1]	ELBOW AS
	6V-8397	[2]	SEAL-O-RING
	6V-8987	[1]	ELBOW
	467-8413	[1]	BRACKET AS
	6V-9168	[1]	NUT(11/16-16-THD)
	9X-8257	[1]	WASHER(17.5X30X3.5-MM THK)
25.	495-2018	[1]	TUBE AS
26.	495-2020	[1]	TUBE AS
27.	495-2022I	[1]	HOSE AS
28.	495-2464	[1]	BRACKET AS
	8T-3490M	[18]	NUT-WELD(M10X1.5-THD)
	8T-3612M	[2]	NUT-WELD(M8X1.25-THD)
	8Y-4489M	[2]	BOSS(M10X1.5-THD)
	9R-2672M	[1]	BOSS-THREADED(M10X1.5X120-MM)
29.	495-2465	[1]	BRACKET AS
	8T-3490M	[16]	NUT-WELD(M10X1.5-THD)
	8T-3612M	[2]	NUT-WELD(M8X1.25-THD)
	8Y-3795M	[2]	BOSS(M10X1.5X39-MM)
30.	Y	[2]	ACCUMULATOR GP-HYDRAULIC
31.	148-8328	[1]	CONNECTOR AS
	3D-2824	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8633	[1]	CONNECTOR
32.	148-8340	[1]	CONNECTOR AS
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8639	[1]	CONNECTOR
33.	148-8359	[1]	ELBOW AS
	3K-0360	[1]	SEAL-O-RING
	6V-9746	[1]	SEAL-O-RING
	6V-9877	[1]	ELBOW
34.	148-8370	[1]	ELBOW AS
	6V-8398	[1]	SEAL-O-RING
	6V-9851	[1]	ELBOW
35.	148-8378	[1]	ELBOW AS
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8724	[1]	ELBOW
36.	148-8381	[2]	ELBOW AS
			(EACH INCLUDES)
	3D-2824	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	8T-5429	[1]	ELBOW
37.	148-8427	[1]	TEE AS
	6V-8398	[3]	SEAL-O-RING
	8T-6895	[1]	TEE-UNION
38.	148-8444	[1]	TEE AS-SWIVEL
	6V-8398	[2]	SEAL-O-RING
	6V-9837	[1]	TEE-SWIVEL
39.	150-4037	[1]	TEE AS
	6V-8398	[2]	SEAL-O-RING
	6V-9844	[1]	TEE-SWIVEL
40.	164-5567	[1]	COUPLER AS-QUICK DISCONNECT(MALE)
	6V-3965	[1]	FITTING(QUICK DISCONNECT)
	214-7568	[1]	SEAL-O-RING
41.	2P-1293	[1]	LOCKNUT(1-3/16-12-THD)
42.	5P-7464	[3]	CLIP(SLOT)
43.	5P-7465	[3]	CLIP(TAB)
44.	6D-4636	[2]	CLIP(LOOP)
45.	6V-0852	[1]	CAP-DUST
46.	6V-1249	[3]	GROMMET(22-MM ID)
47.	6V-8397	[1]	SEAL-O-RING
48.	6V-8398	[1]	SEAL-O-RING
49.	6V-9168	[1]	NUT(11/16-16-THD)
50.	6V-9169	[2]	NUT(13/16-16-THD)
51.	6V-9746	[1]	SEAL-O-RING
52.	7X-7729	[62]	WASHER(11X25X3-MM THK)
53.	8T-1887	[4]	CLIP(SLOT)
54.	8T-1888	[4]	CLIP(TAB)
55.	8T-4121	[7]	WASHER-HARD(11X21X2.5-MM THK)
56.	8T-4123	[2]	WASHER(22X35X3.5-MM THK)
57.	8T-4133M	[1]	NUT(M10X1.5-THD)
58.	8T-4136M	[25]	BOLT(M10X1.5X25-MM)
59.	8T-4139M	[3]	BOLT(M12X1.75X30-MM)
60.	8T-4182M	[9]	BOLT(M10X1.5X45-MM)
61.	8T-4186M	[6]	BOLT(M10X1.5X40-MM)
62.	8T-4192M	[1]	BOLT(M12X1.75X25-MM)
63.	8T-4196M	[26]	BOLT(M10X1.5X35-MM)
64.	8T-4223	[4]	WASHER-HARD(13.5X25.5X3-MM THK)
65.	8T-5005M	[2]	BOLT(M10X1.5X70-MM)
66.	8W-8909	[2]	SLEEVE
67.	9X-8257	[1]	WASHER(17.5X30X3.5-MM THK)
68.	9X-8258	[1]	WASHER(33X56X6-MM THK)
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION

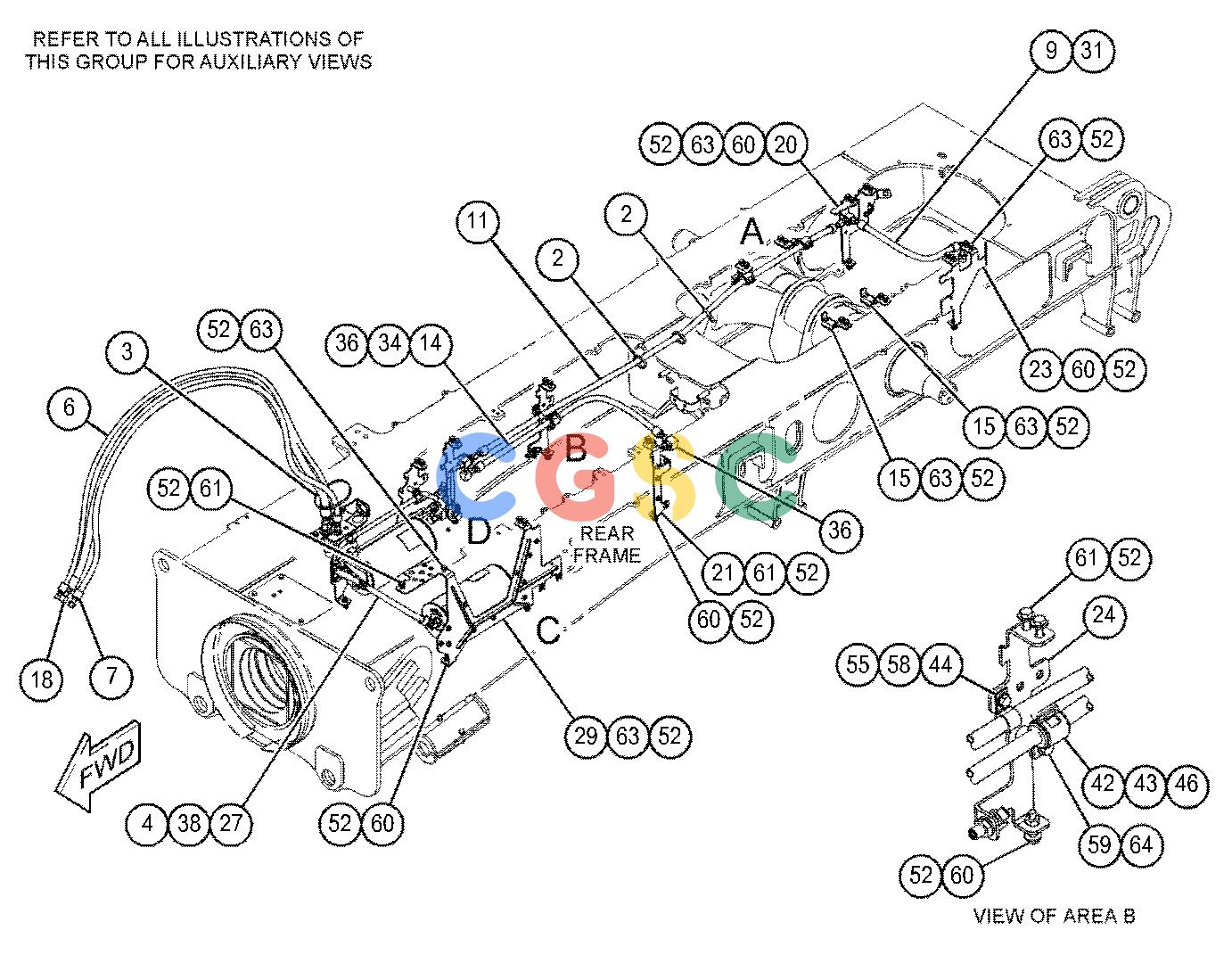

卡特零件查询（735C） 495-4854: CONTROL GP-SERVICE BRAKE
