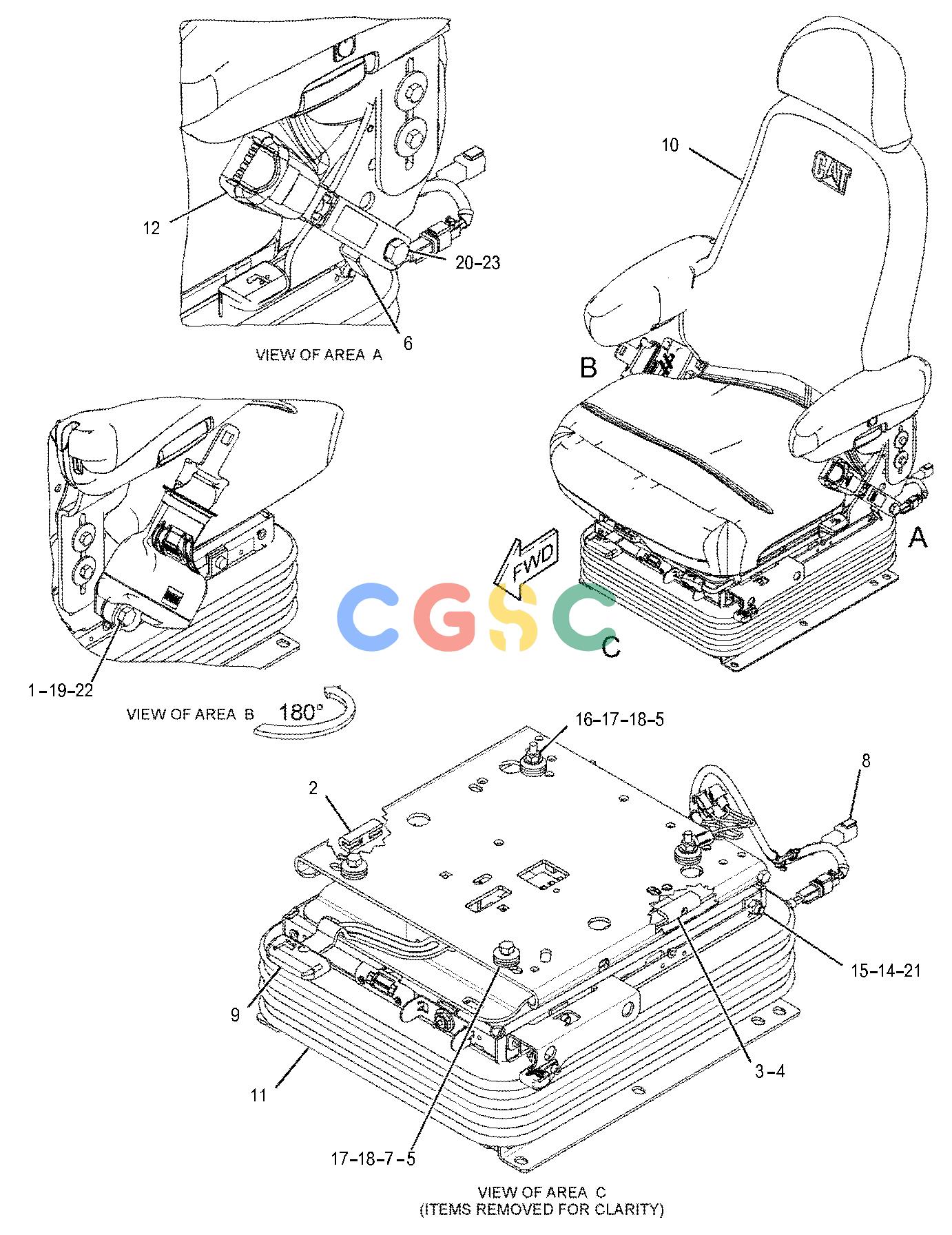

| 1. | 1S-4305 | [1] | SPACER(0.531X1X0.56-IN THK) | |
| 2. | 149-4745 | [2] | KIT-SLIDER BLOCK(SUSPENSION SEAT) | |
| | | | (EACH INCLUDES SLIDER BLOCKS & BOLT) |
| 3. | 161-9289 | [2] | BLOCK-SLIDER | |
| 4. | 173-5787 | [2] | SETSCREW(1/4-20-THD) | |
| 5. | 195-7055C | [12] | WASHER-HARD(9.9X28.5X3.2-MM THK) | |
| 6. | 209-6299 | [1] | ANGLE | |
| 7. | 234-3017 | [2] | BOLT(3/8-16X0.875-IN) | |
| 8. | 241-5786 | [1] | HARNESS AS-HEATER(SEAT) | |
| 9. | 347-8750Y | [1] | ADJUSTER GP-SEAT | |
| 10. | 347-8769Y | [1] | SEAT GP-SUSPENSION(FABRIC, HEATED) | |
| 11. | 347-8771Y | [1] | SUSPENSION GP-SEAT(AIR, HEATED) | |
| 12. | 353-6193Y | [1] | SEAT BELT GP(RETRACTABLE, 3-IN) | |
| 14. | 107-1705C | [2] | SPACER | |
| 15. | 1A-9579C | [1] | BOLT(5/16-18X1.5-IN) | |
| 16. | 1D-4672C | [2] | BOLT-CARRIAGE(1/2-13X5.5-IN) | |
| 17. | 2K-4973 | [4] | LOCKNUT(3/8-16-THD) | |
| 18. | 4B-4278C | [4] | WASHER(10.2X20.5X1.6-MM THK) | |
| 19. | 5P-1076C | [1] | WASHER-HARD(13.5X30X4-MM THK) | |
| 20. | 6V-3823CM | [1] | BOLT(M12X1.75X60-MM) | |
| 21. | 6V-8189C | [1] | NUT(5/16-18-THD) | |
| 22. | 6V-8197CM | [1] | BOLT(M12X1.75X40-MM) | |
| 23. | 7X-0599C | [2] | WASHER-HARD(13X20X2-MM THK) | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
