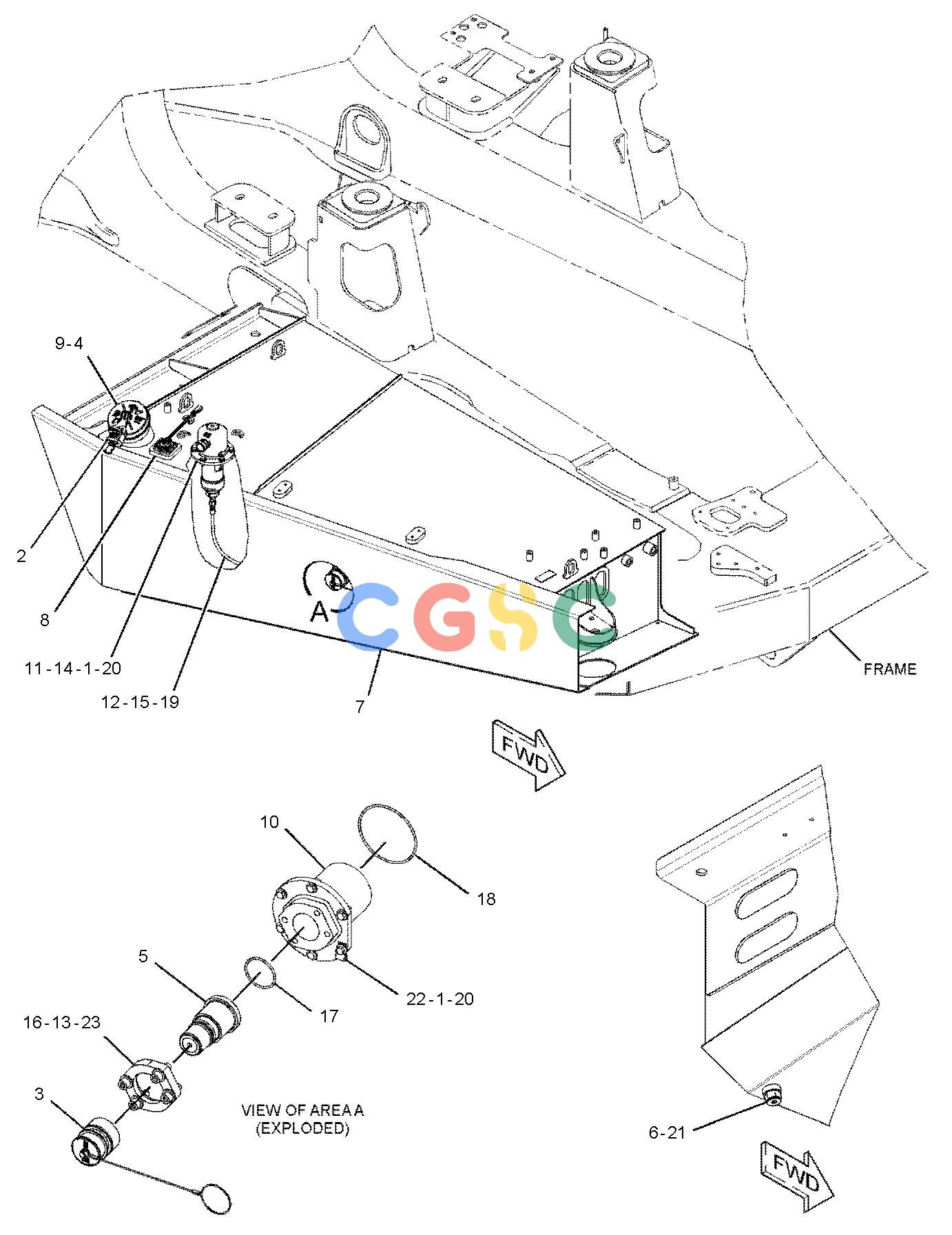

| 1. | 8T-4908M | [12] | BOLT(M8X1.25X25-MM) | |
| 2. | 246-2641 | [1] | PADLOCK GP | |
| | 5P-8500 | [1] | KEY | |
| 3. | 388-4327 | [1] | CAP-DUST | |
| 4. | 9P-7121 | [1] | STRAINER-FUEL(FUEL TANK)(FAST FILL) | |
| 5. | 376-1308 | [1] | RECEIVER AS(FAST FILL FUEL) | |
| 6. | 248-0833 | [1] | PLUG AS-DRAIN(FAST FILL FUEL) | |
| | 3S-9233 | [1] | SEAL-O-RING | |
| | 5L-4759 | [1] | SEAL-O-RING | |
| | 259-7138 | [1] | PLUG | |
| 7. | 331-7294 | [1] | TANK AS-FUEL | |
| 8. | 380-8936Y | [1] | SENDER GP-FUEL LEVEL | |
| 9. | 276-1243 | [1] | CAP AS-FUEL FILLER(LOCKABLE)(FAST FILL) | |
| | 279-9876 | [1] | FILTER ELEMENT-BREATHER(FUEL CAP) | |
| 10. | 359-7506 | [1] | VALVE(FAST FILL) | |
| 11. | 361-5933 | [1] | VENT | |
| 12. | 362-2073I | [1] | HOSE AS | |
| 13. | 108-1781M | [4] | BOLT-SOCKET HEAD(M12X1.75X35-MM) | |
| 14. | 1H-8128 | [1] | SEAL-O-RING | |
| 15. | 1J-9671 | [2] | SEAL-O-RING | |
| 16. | 1P-4582 | [2] | FLANGE-HALF | |
| 17. | 4J-0527 | [1] | SEAL-O-RING | |
| 18. | 5H-6734 | [1] | SEAL-O-RING | |
| 19. | 5P-2618 | [2] | CONNECTOR | |
| 20. | 5P-4116 | [12] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 21. | 7M-8485 | [1] | SEAL-O-RING | |
| 22. | 8M-2772 | [1] | CLIP(LOOP) | |
| 23. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
