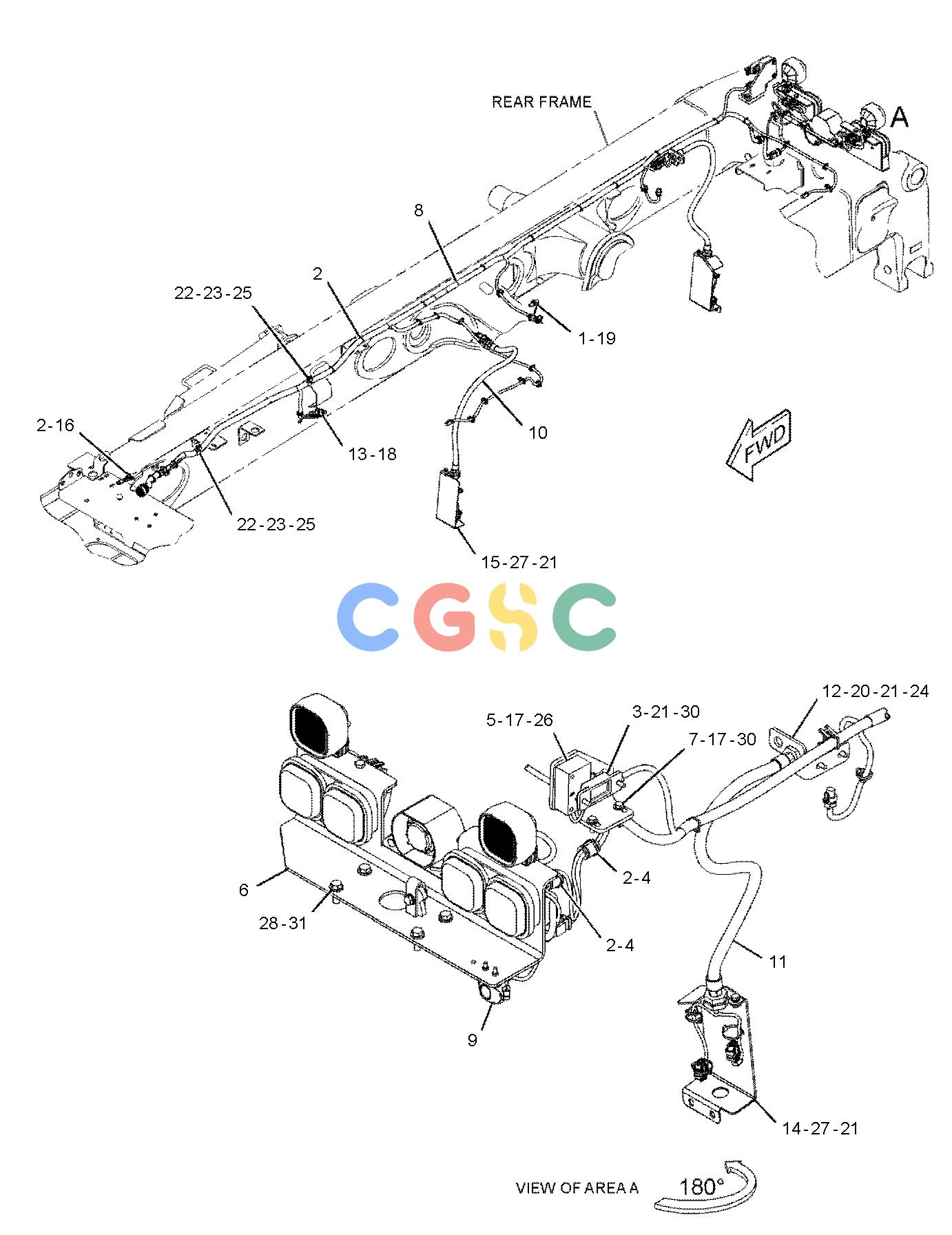

| 1. | 3E-6451 | [1] | SWITCH GP-TEMPERATURE(REAR BRAKE) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 2. | 3S-2093 | [61] | STRAP-CABLE | |
| 3. | 5G-7820 | [1] | MAGNET AS | |
| 4. | 8W-8528 | [2] | SLEEVE | |
| 5. | 229-5527 | [1] | SENSOR GP-POSITION(TRUCK BODY POSITION) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 121-0153 | [1] | FILM-INSTRUCTION(ELECTRICAL POWER) | |
| 6. | 291-9440Y | [1] | WARNING GP-BACKUP | |
| 7. | 333-7288 | [1] | PLATE AS | |
| 8. | 336-2815 | [1] | HARNESS AS-REAR | |
| | 9X-3402 | [5] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1768 | [5] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 180-9340 | [29] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 274-3775 | [1] | CAP-CONNECTOR | |
| | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | 155-2270 | [4] | KIT-CONNECTING PLUG(2-PIN) | |
| | 155-2274 | [3] | KIT-CONNECTING PLUG(6-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 230-4011 | [1] | PLUG AS-CONNECTOR(2-PIN) | |
| | 264-7029 | [1] | SEAL-CONNECTOR | |
| | 230-4013 | [1] | PLUG AS-CONNECTOR(3-PIN) | |
| | 264-7030 | [1] | SEAL-CONNECTOR | |
| | 272-2838 | [1] | PLUG AS-CONNECTOR(31-PIN) | |
| | 8T-8737 | [4] | PLUG-SEAL | |
| | 274-3780 | [1] | CAP-SEAL | |
| | 8T-8730 | [15] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 9W-0844 | [12] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 125-7874E | | TUBE-HEAT SHRINK(5.72-MM DIA)(5-CM) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(10-CM) | |
| 9. | 336-6684Y | [1] | CAMERA GP(12-VOLT, 24-VOLT)(WORK AREA VISUAL SYSTEM, REAR) | |
| 10. | 337-6319 | [1] | HARNESS AS-SENSOR(WHEEL SPEED) | |
| | 9X-3401 | [6] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1767 | [6] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 5P-5777 | [2] | ADAPTER-O-RING | |
| | 344-7626I | [1] | HOSE AS | |
| | 2P-1286 | [2] | LOCKNUT-BULKHEAD(1-5/16-12-THD) | |
| | 240-7878 | [2] | PLUG AS-CONNECTOR(3-PIN) | |
| | | | (EACH INCLUDES) |
| | 264-7030 | [1] | SEAL-CONNECTOR | |
| | 151-9275 | | KIT-RECEPTACLE(6-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 9X-3402 | [6] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 1P-0810B | | TAPE-ELECTRICAL | |
| 11. | 337-6320 | [1] | HARNESS AS-SENSOR(REAR WHEEL) | |
| | 5P-5777 | [2] | ADAPTER-O-RING | |
| | 344-7625I | [1] | HOSE AS | |
| | 2P-1286 | [2] | LOCKNUT-BULKHEAD(1-5/16-12-THD) | |
| | 9X-3401 | [6] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1767 | [6] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 240-7878 | [2] | PLUG AS-CONNECTOR(3-PIN) | |
| | | | (EACH INCLUDES) |
| | 264-7030 | [1] | SEAL-CONNECTOR | |
| | 151-9275 | [1] | KIT-RECEPTACLE(6-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 9X-3402 | [6] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 1P-0810B | | TAPE-ELECTRICAL | |
| 12. | 344-5871 | [1] | BRACKET | |
| 13. | 344-7391 | [1] | SENSOR-PRESSURE(EJECTOR)(PARKING BRAKE) | |
| 14. | 358-9889 | [1] | PLATE AS | |
| 15. | 358-9890 | [1] | PLATE AS | |
| | | | (EACH PLATE AS INCLUDES) |
| | 159-9540M | [1] | NUT-WELD(M8X1.25-THD) | |
| 16. | 352-3965 | [1] | CLIP(LADDER) | |
| 17. | 3E-4352 | [4] | WASHER-HARD(8.8X20.5X2.5-MM THK) | |
| 18. | 3J-1907 | [1] | SEAL-O-RING | |
| 19. | 3K-0360 | [1] | SEAL-O-RING | |
| 20. | 4P-8134 | [1] | CLIP(LADDER) | |
| 21. | 5P-4116 | [6] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 22. | 6D-4244 | [2] | CLIP(LOOP) | |
| 23. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 24. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 25. | 8T-4191M | [2] | BOLT(M10X1.5X16-MM) | |
| 26. | 8T-4197M | [2] | BOLT(M8X1.25X40-MM) | |
| 27. | 8T-4200M | [2] | BOLT(M8X1.25X16-MM) | |
| 28. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 30. | 8T-4908M | [4] | BOLT(M8X1.25X25-MM) | |
| 31. | 8T-4956M | [4] | BOLT(M12X1.75X35-MM) | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
