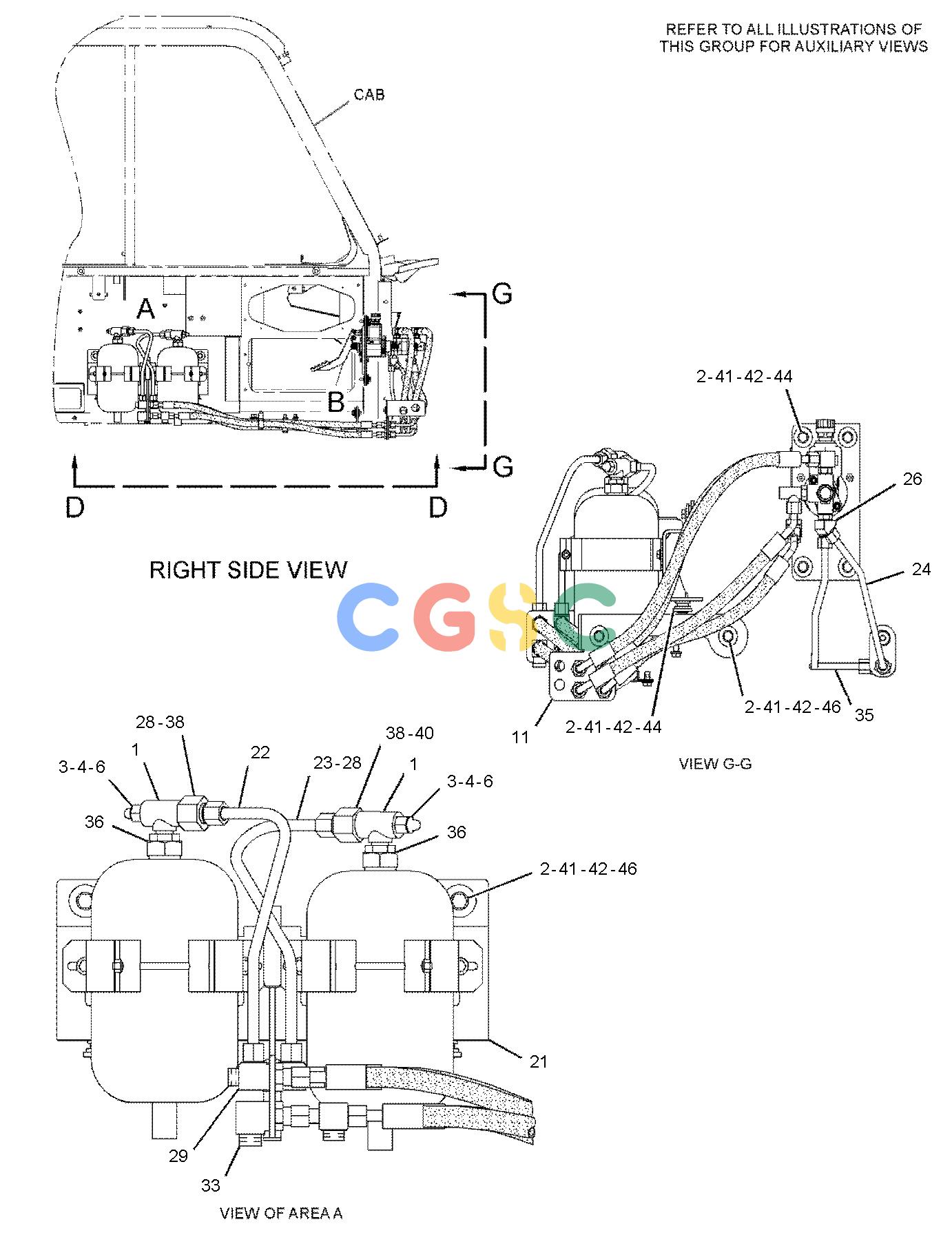

卡特零件查询（735） 301-9627: CONTROL GP-SERVICE BRAKE

作者：广数供应链运营团队

浏览数：

时间：2025-01-24 03:30:31

Pos.	Part No	Qty	Parts name
1.	3E-2345	[2]	ADAPTER-TEE
2.	6N-6984	[11]	MOUNT-RUBBER
3.	9F-2167	[2]	SCREW-PURGE(3/8-24X1.164-IN)
4.	108-8393	[2]	CAP
5.	164-5586	[2]	TEE AS
			(EACH INCLUDES)
	6V-8398	[1]	SEAL-O-RING
	7X-0871	[1]	TEE
6.	169-7403	[2]	ADAPTER AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6G-3432	[1]	ADAPTER
7.	196-2036	[2]	TEE AS
			(EACH INCLUDES)
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	9X-2492	[1]	TEE-O-RING
8.	172-6525	[1]	PLATE
9.	180-8145	[1]	SEAL
10.	183-3873	[1]	BREATHER(BRAKE CONTROL VALVE)
11.	191-0888	[1]	PLATE
12.	200-8481	[1]	GASKET
13.	208-7969I	[1]	HOSE AS
14.	208-7970I	[1]	HOSE AS
15.	208-7971I	[1]	HOSE AS
16.	208-7972I	[1]	HOSE AS
17.	208-7973I	[1]	HOSE AS
18.	208-7974I	[1]	HOSE AS
19.	208-7975I	[1]	HOSE AS
20.	209-9136I	[1]	HOSE AS
21.	251-8789Y	[1]	ACCUMULATOR & MTG GP-BRAKE(CHARGED)
22.	251-8794	[1]	TUBE AS
23.	251-8796	[1]	TUBE AS
24.	301-9630	[1]	TUBE AS
25.	329-1521Y	[1]	VALVE GP-BRAKE CONTROL(SERVICE)
26.	148-8354	[1]	ELBOW AS
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-9002	[1]	ELBOW
27.	148-8364	[2]	ELBOW AS
			(EACH INCLUDES)
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8625	[1]	ELBOW
28.	148-8418	[2]	REDUCER AS
			(EACH INCLUDES)
	6V-8398	[1]	SEAL-O-RING
	6V-8942	[1]	REDUCER-O-RING
29.	148-8427	[2]	TEE AS
			(EACH INCLUDES)
	6V-8398	[3]	SEAL-O-RING
	8T-6895	[1]	TEE-UNION
30.	148-8457	[4]	UNION AS(STRAIGHT)
			(EACH INCLUDES)
	6V-8398	[2]	SEAL-O-RING
	6V-8995	[1]	UNION(STRAIGHT)
31.	153-6241	[1]	ELBOW AS
	6V-8398	[1]	SEAL-O-RING
	8C-8989	[1]	ELBOW
32.	164-5580	[1]	TEE AS
	6V-8398	[2]	SEAL-O-RING
	6V-9489	[1]	TEE-BULKHEAD
	6V-9746	[1]	SEAL-O-RING
33.	164-6864	[2]	ELBOW AS
			(EACH INCLUDES)
	6V-8398	[1]	SEAL-O-RING
	7J-9108	[1]	SEAL-O-RING
	8T-1810	[1]	ELBOW
34.	164-8908	[1]	CONNECTOR AS
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	8T-0077	[1]	CONNECTOR
35.	301-9629	[1]	TUBE AS
36.	3D-2824	[2]	SEAL-O-RING
37.	6V-1228	[1]	CLIP
38.	9X-6580	[2]	NUT(1-3/16-12-THD)
39.	6V-9169	[9]	NUT(13/16-16-THD)
40.	6V-9746	[2]	SEAL-O-RING
41.	8M-4069	[11]	WASHER(10.3X38.1X5-MM THK)
42.	8T-4121	[16]	WASHER-HARD(11X21X2.5-MM THK)
43.	8T-5005M	[2]	BOLT(M10X1.5X70-MM)
44.	8T-4186M	[6]	BOLT(M10X1.5X40-MM)
45.	8T-4191M	[3]	BOLT(M10X1.5X16-MM)
46.	8T-4195M	[5]	BOLT(M10X1.5X30-MM)
47.	9X-8250	[3]	CLIP(LOOP)
48.	141-3983	[2]	SPACER(11X19X48-MM THK)
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION
