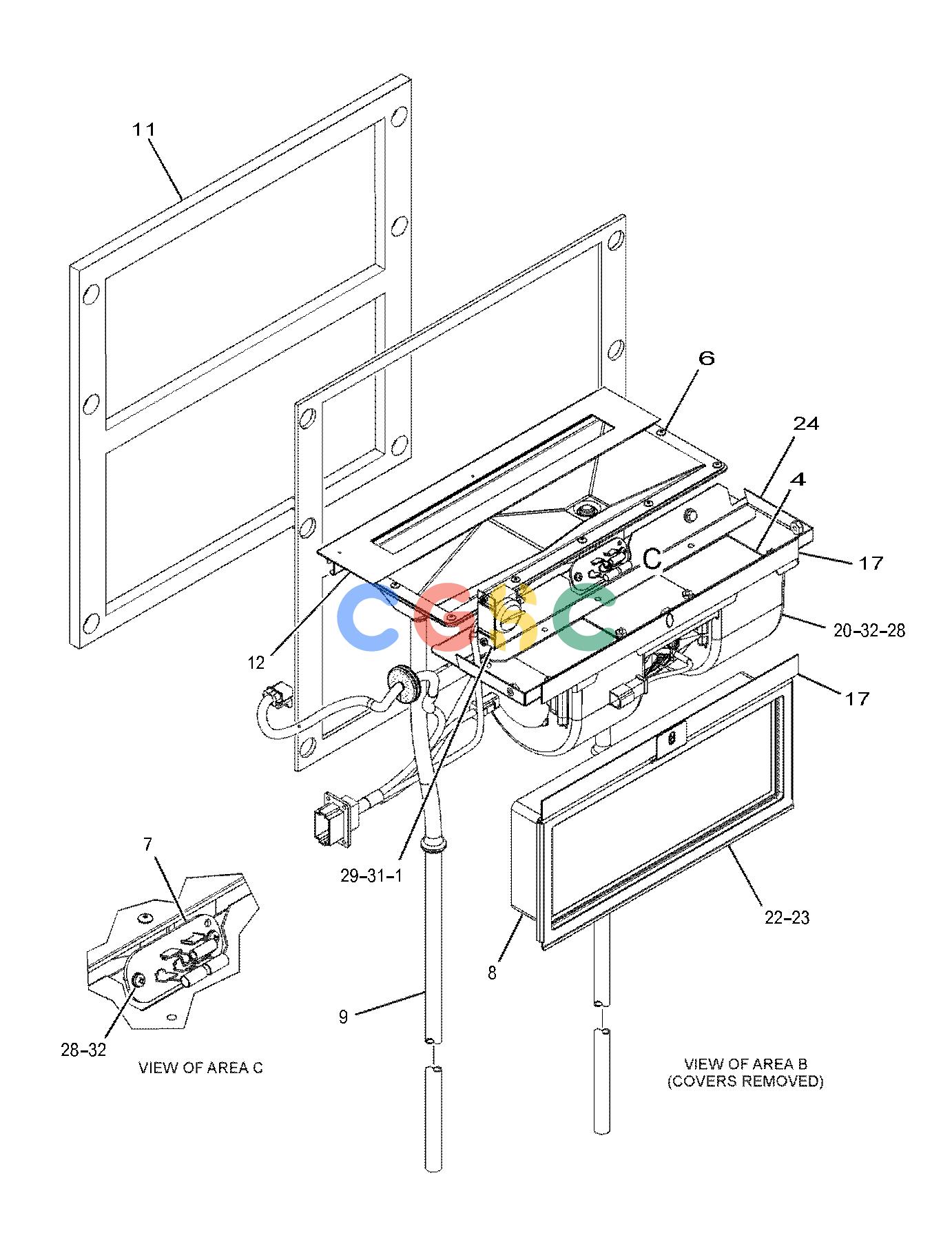

| 1. | 3E-5464 | [1] | SWITCH AS-THERMOSTAT(HVAC)(REFRIGERANT) | |
| 2. | 8C-3756 | [1] | FILM-IDENTIFICATION(AIR CONDITIONER) | |
| 3. | 134-3518 | [2] | TIE-PUSH MOUNT | |
| 4. | 153-6932J | [1] | GASKET | |
| 6. | 247-8302 | [8] | RIVET | |
| 7. | 257-5029 | [1] | RESISTOR AS | |
| 8. | 259-3222 | [1] | FILTER ELEMENT-AIR(STANDARD EFFICIENCY)(CAB) | |
| 9. | 275-6658Y | [1] | PAN GP-DRAIN(AIR CONDITIONER) | |
| 10. | 352-2194C | [1] | HARNESS AS-MOTOR | |
| | 9W-0844 | [2] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 9V-2818 | [1] | GROMMET | |
| | 2U-4729 | [1] | GROMMET-BLIND | |
| | 6T-6505 | [2] | HOUSING-RECEPTACLE(BLADE, POSITIVE LOCK) | |
| | 8T-8729 | [7] | PIN-CONNECTOR(16-GA TO 20-GA) | |
| | 9W-0852 | [3] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | 155-2271 | [1] | KIT-CONNECTING PLUG(4-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 8T-8737 | [3] | PLUG-SEAL | |
| | 166-5229 | [1] | KIT-RECEPTACLE(12-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 9X-3402 | | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1768 | [3] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 065-5071 | [4] | TERMINAL-BLADE(14-GA TO 16-GA) | |
| | 6T-6506 | [2] | TERMINAL-BLADE(14-GA TO 18-GA) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(13-CM) | |
| | 125-7874E | | TUBE-HEAT SHRINK(5.72-MM DIA)(5-CM) | |
| 11. | 362-0658 | [1] | GASKET | |
| 12. | 275-6687J | [1] | GASKET | |
| 13. | 275-6688J | [1] | GASKET | |
| 14. | 275-6689J | [1] | GASKET | |
| 15. | 351-1770CY | [1] | COIL GP-HEATER | |
| 16. | 275-6697J | [1] | GASKET | |
| 17. | 275-6699J | [2] | GASKET | |
| 18. | 275-6702 | [1] | PLATE AS | |
| 19. | 275-6704J | [2] | GASKET | |
| 20. | 275-6706 | [1] | MOTOR AS-BLOWER(24-VOLT) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 9W-0852 | [2] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| 21. | 275-6708 | [1] | PLATE | |
| 22. | 275-6709 | [1] | PLATE | |
| 23. | 275-6710 | [1] | RETAINER(PUSH ON) | |
| 24. | 292-2905 | [1] | PLATE AS | |
| | 6V-9632M | [3] | NUT-WELD(M6X1-THD) | |
| | 9X-2032M | [8] | NUT-WELD(M4X0.7-THD) | |
| 25. | 299-4728 | [1] | CASE AS | |
| | 6V-9632M | [17] | NUT-WELD(M6X1-THD) | |
| | 8T-3490M | [5] | NUT-WELD(M10X1.5-THD) | |
| | 9X-2032M | [4] | NUT-WELD(M4X0.7-THD) | |
| 26. | 308-9435 | [1] | COIL AS-EVAPORATOR | |
| 27. | 096-4034M | [1] | BOLT-WING(M6X1X15-MM) | |
| 28. | 096-6166 | [10] | WASHER-HARD(4.5X9X1-MM THK) | |
| 29. | 3B-4501 | [2] | LOCKWASHER | |
| 30. | 5C-9553M | [21] | BOLT(M6X1X16-MM) | |
| 31. | 8C-8514 | [2] | SCREW-MACHINE(8-32X0.375-IN) | |
| 32. | 8T-0337M | [10] | SCREW-MACHINE(M4X0.7X12-MM) | |
| 33. | 8T-4205 | [22] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 294-8679J | [1] | KIT-GASKET(AIR CONDITIONER) | |
| | | | (INCLUDES GASKETS) |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | E | | ORDER BY THE CENTIMETER |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
