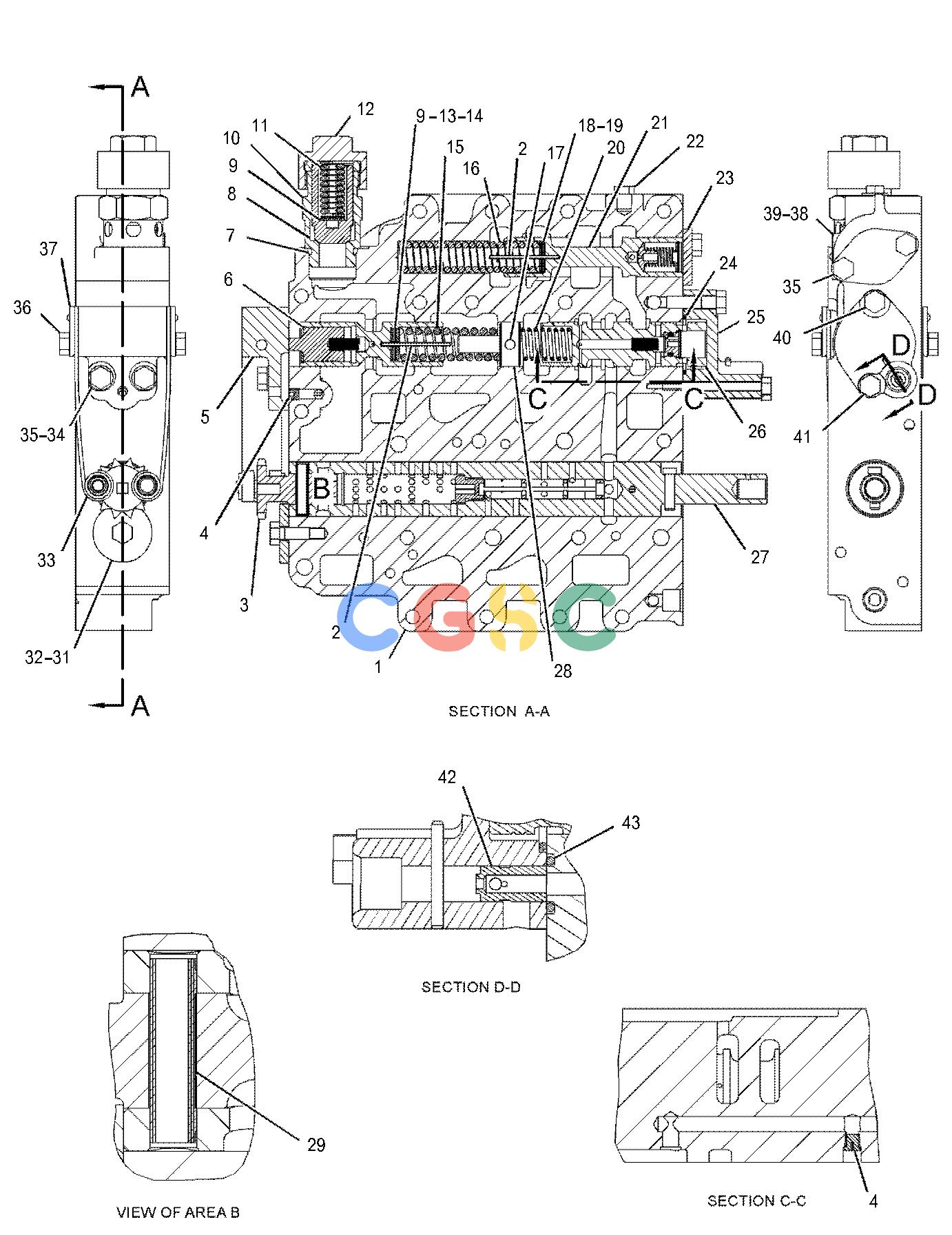

| 1. | 7G-3472 | [1] | BODY-SELECTOR | |
| 2. | 1P-9620 | [2] | RING-RETAINING | |
| 3. | 162-5802 | [1] | CAM-DETENT | |
| 4. | 4D-0514 | [2] | PLUG-PIPE | |
| 5. | 8E-4094 | [1] | SUPPORT AS-SPRING | |
| | 8H-9208 | [2] | DOWEL | |
| 6. | 145-0109 | [1] | SPOOL AS | |
| | 2L-6726 | [1] | RING-RETAINING | |
| | 4B-9880 | [1] | BALL | |
| | 4M-2381 | [1] | SPRING | |
| | 6T-5411 | [1] | SLUG | |
| | 147-0045 | [1] | PIN-SPRING | |
| 7. | 5P-7701 | [1] | SEAL-O-RING | |
| 8. | 9P-0673 | [1] | VALVE-RELIEF | |
| 9. | 145-0107 | [2] | SPACER(3.18X20.62X1.6-MM THK) | |
| 10. | 9P-0674 | [1] | BODY | |
| 11. | 3T-9920 | [1] | SPRING | |
| 12. | 150-4732 | [1] | CAP | |
| 13. | 145-0106 | [4] | SPACER(3.18X20.62X0.9-MM THK) | |
| 14. | 145-0105 | [5] | SPACER(3.18X20.62X0.25-MM THK) | |
| 15. | 6T-5409 | [1] | SPRING | |
| 16. | 8M-6402 | [1] | SPRING | |
| 17. | 2S-0696 | [1] | DOWEL | |
| 18. | 5M-3492 | [3] | SPACER(3.18X19.05X0.25-MM THK) | |
| 19. | 7M-1397 | [3] | SPACER(3.18X19.05X0.9-MM THK) | |
| 20. | 6T-3177 | [1] | SPRING | |
| 21. | 6T-3696 | [1] | SPOOL AS-REDUCING | |
| | 8M-2537 | [1] | RETAINER | |
| | 8M-1078 | [1] | CHECK | |
| | 5M-9548 | | SPRING | |
| | 1L-3162 | [1] | RING-RETAINING | |
| | 147-0045 | [1] | PIN-SPRING | |
| 22. | 5M-6214 | [1] | PLUG(1/8-27 PTF) | |
| 23. | 8P-9852 | [1] | COVER | |
| 24. | 3E-6747 | [1] | SEAL-O-RING | |
| 25. | 8E-7190 | [1] | COVER AS | |
| | 3H-1156 | [1] | PIN | |
| 26. | 6T-3115 | [1] | SPOOL AS | |
| | 1H-4142 | [1] | RING-RETAINING | |
| | 4B-9880 | [1] | BALL | |
| | 4M-2381 | [1] | SPRING | |
| | 5H-6005 | [1] | SEAL-O-RING | |
| | 7T-6175 | [1] | SEAT | |
| 27. | 177-1880 | [1] | SPOOL AS-ROTARY | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 3T-5219 | [1] | PIN | |
| | 6T-7640 | [1] | SCREEN-FILTER(TRANSMISSION) | |
| | 9P-9650 | [1] | DOWEL | |
| 28. | 145-0108 | [1] | STOP | |
| 29. | 421-3135 | [1] | PIN-SPRING | |
| 31. | 9S-8413 | [1] | WASHER-RETAINING(0.344X1.5X0.23-IN THK) | |
| 32. | 031-4630 | [1] | BOLT-LOCKING(5/16-18X0.75-IN) | |
| 33. | 129-3033 | [2] | SPRING AS | |
| | | | (EACH INCLUDES) |
| | 3G-3916 | [1] | RING-RETAINING | |
| | 6V-5701 | [2] | BEARING AS-NEEDLE | |
| | 9W-7009 | [2] | RETAINER-BEARING | |
| | 9W-7011 | [1] | PIN | |
| 34. | 9M-1974 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 35. | 4B-3388 | [4] | BOLT(5/16-18X1.125-IN) | |
| 36. | 7L-6210 | [2] | BOLT-LOCATING(5/16-18X1-IN) | |
| 37. | 9P-0652 | [2] | RETAINER | |
| 38. | 151-8083 | [1] | PLATE | |
| 39. | 7B-3028 | [1] | SCREW-DRIVE(NO 4X 3/16-IN) | |
| 40. | 1B-7182 | [1] | BOLT(5/16-18X1.25-IN) | |
| 41. | 1D-4539 | [1] | BOLT(5/16-18X2.5-IN) | |
| 42. | 9W-6964 | [1] | VALVE AS-EXHAUST(TRANSMISSION CONTROL) | |
| | 3F-3152 | [1] | BALL | |
| | 8N-4173 | [1] | DOWEL | |
| 43. | 5H-6005 | [1] | SEAL-O-RING | |
