Pos.	Part No	Qty	Parts name
1.	134-8452	[1]	HOUSING AS
	1A-2223	[4]	DOWEL
2.	1T-1078	[1]	BEARING-THRUST
3.	1T-0762	[1]	RACE-THRUST BEARING
4.	166-6323	[1]	RACE
5.	160-2751	[1]	DISC-THRUST
6.	1K-6984	[1]	RING-RETAINING
7.	133-7596	[4]	SHAFT-PLANETARY
8.	5M-6126	[4]	BEARING AS-ROLLER
9.	137-1619	[1]	PISTON
10.	133-3353	[4]	GEAR-PLANETARY(22-TEETH)
11.	134-8453	[1]	HOUSING-CLUTCH
12.	8E-8304	[8]	DISC-THRUST
13.	8E-8306	[8]	DISC-THRUST
14.	6Y-2027	[6]	DISC-FRICTION
15.	137-1620	[14]	PLATE-CLUTCH
16.	134-8454	[1]	HOUSING AS
	1A-2223	[2]	DOWEL
17.	133-3350	[4]	GEAR-PLANETARY(24-TEETH)
18.	139-9313	[4]	BEARING-SPECIAL
19.	133-7595	[4]	SHAFT-PLANETARY
20.	3S-2708	[14]	PIN-SPRING
21.	1P-9216	[3]	RING-SEAL
22.	6Y-8030	[1]	RING-SEAL
23.	140-3134	[1]	CARRIER
24.	5L-8869	[1]	RING-METAL SEAL
25.	9W-7926	[2]	CUP-BEARING
26.	9W-7925	[2]	BEARING AS-TAPERED ROLLER
27.	138-3115	[1]	RETAINER
28.	137-2418	[1]	SHAFT
29.	8T-0649M	[1]	BOLT(M16X2X110-MM)
30.	1T-1006	[1]	RETAINER
31.	7F-2122	[1]	SEAL-O-RING
32.	137-2417	[1]	YOKE
33.	9X-4605	[1]	SEAL-LIP TYPE
34.	6V-4248M	[20]	BOLT(M10X1.5X25-MM)
35.	6V-5839	[21]	WASHER(11X21X2.5-MM THK)
36.	4H-6520	[1]	SEAL-O-RING
37.	140-2742	[1]	ROTOR-SENSOR
38.	8J-7199	[1]	RING-RETAINING
39.	144-1111	[1]	SPACER-SPECIAL
40.	7G-9968	[1]	RING-SEAL
41.	138-7758	[1]	CARRIER-RING
42.	3P-1681	[5]	DOWEL-REACTION
43.	138-2320	[5]	ROD
44.	138-0394	[1]	PISTON
45.	135-1759	[1]	CARRIER-PLANETARY
46.	1M-3937	[1]	RING-METAL SEAL
47.	1T-1401	[1]	RING-SEAL
48.	131-4091	[2]	SEAL-RING
49.	160-2750	[1]	DISC-THRUST
50.	133-3349	[1]	GEAR-RING(68-TEETH)
51.	9T-5328	[5]	SPRING
52.	140-9842	[2]	RING-LOCK
53.	2P-3628	[3]	SEAL-O-RING
54.	133-3354	[1]	GEAR-SUN(24-TEETH)
55.	135-1758	[1]	CARRIER-PLANETARY
56.	159-1043	[1]	RING-RETAINING
57.	9J-3999	[5]	SPRING
58.	8E-8300	[12]	DISC-THRUST
59.	2S-0669	[12]	BEARING
60.	140-1642	[1]	GEAR AS-SUN(27-TEETH)
	185-0756	[1]	BUSHING
61.	6V-1720	[1]	PLATE-SERIAL NUMBER(TRANSMISSION)
62.	133-3355	[6]	GEAR-PLANETARY(18-TEETH)
63.	195-5973	[6]	SHAFT AS
			(EACH INCLUDES)
	5H-8985	[1]	PIN-SPRING
64.	138-8661	[1]	COUPLING
65.	9M-1990	[5]	DOWEL
66.	5M-1654	[5]	SPRING
67.	150-3251	[1]	CARRIER AS
	185-0757	[1]	BUSHING
68.	6V-6317M	[1]	BOLT(M10X1.5X20-MM)
69.	135-1754	[1]	MANIFOLD AS
	3F-0957	[2]	DOWEL
70.	5P-3489	[1]	RACE-BEARING OUTER
71.	5P-3488	[1]	RACE & ROLLER AS-INNER
72.	135-1749	[1]	HOUSING AS
	1A-2223	[2]	DOWEL
73.	6T-0248	[2]	RING-SEAL
74.	138-2319	[1]	PISTON-CLUTCH
75.	4M-8871	[5]	DOWEL
76.	140-2743	[1]	PLATE-END
77.	6I-8200	[1]	RING-LOCK
78.	134-8361	[5]	PLATE-CLUTCH
79.	134-8360	[5]	DISC-FRICTION
80.	8B-4967	[2]	SEAL-O-RING
81.	140-9849	[1]	DISC-THRUST
82.	140-9854	[1]	TUBE AS
83.	140-9844	[1]	TUBE AS-SUCTION
84.	4F-8824	[1]	SEAL-O-RING
85.	8D-9738	[1]	SEAL-RING
86.	224-9620	[1]	PISTON
87.	6T-0257	[1]	RING-SEAL
88.	140-9848	[2]	RACE-THRUST BEARING
89.	154-2733	[1]	HUB AS
90.	159-1044	[1]	RING-RETAINING
91.	139-7046	[1]	SHAFT AS
	194-7093	[1]	BEARING-THRUST
92.	138-7034	[1]	HUB-CLUTCH
93.	9W-6904	[1]	RING-RETAINING
94.	1K-6985	[1]	RING-RETAINING
95.	133-2905	[1]	RING-RETAINING(EXTERNAL)
96.	9M-9729	[1]	SEAL-O-RING
97.	140-1769	[1]	BEARING-SPECIAL
98.	146-7447	[2]	RING-SEAL
99.	140-2741	[5]	SPRING
100.	6V-2394	[1]	RING-RETAINING
101.	140-2777	[1]	PLATE-RETAINER
102.	8E-8313	[1]	DISC-THRUST
103.	7T-5601	[1]	PLATE
104.	4D-7889	[1]	RING
105.	6V-8197M	[10]	BOLT(M12X1.75X40-MM)
106.	5P-8245	[31]	WASHER-HARD(13.5X25.5X3-MM THK)
107.	8T-8441M	[9]	BOLT-SOCKET HEAD(M12X1.75X25-MM)
108.	140-1724	[1]	HUB
109.	140-2371	[9]	DISC
110.	139-5168	[1]	PISTON-BALANCE
111.	3W-0203	[1]	SEAL-RING
112.	9M-8808	[10]	SPRING
113.	8S-3370	[1]	RING-SEAL
114.	7G-5674	[1]	RING-SEAL
115.	6V-3940M	[6]	BOLT(M8X1.25X25-MM)
116.	126-1499M	[7]	BOLT(M16X2X250-MM)
117.	9X-8268	[7]	WASHER(17.5X30X3.5-MM THK)
118.	165-7789	[1]	CARRIER AS
	185-0758	[1]	BUSHING
119.	137-1618	[1]	PISTON
120.	9G-0281	[2]	RING-SEAL
121.	140-9843	[1]	DISC-THRUST
122.	133-3352	[1]	GEAR-RING(69-TEETH)
123.	3E-8007M	[2]	BOLT-SOCKET HEAD(M12X1.75X90-MM)
124.	140-9856	[1]	CASE AS-TRANSMISSION
	9G-9506	[2]	PLUG
125.	6V-8675M	[21]	BOLT(M12X1.75X35-MM)
126.	4P-7429	[4]	CLIP(LADDER)
127.	171-1526	[1]	GUARD
128.	9S-8007	[3]	PLUG
129.	7J-0204	[3]	SEAL-O-RING
130.	9S-8006	[2]	PLUG(7/8-14-THD)
131.	2M-9780	[2]	SEAL-O-RING
132.	031-6122	[1]	PLUG-MAGNETIC
133.	3J-1907	[1]	SEAL-O-RING
134.	140-1854	[1]	COVER
135.	140-1855	[1]	GASKET
136.	138-1509	[1]	DRAIN GP-ECOLOGY(POWER TRAIN OIL)
	7M-8485	[1]	SEAL-O-RING
	8F-0212	[1]	SEAL-O-RING
	138-1510	[1]	PLUG
137.	190-5450	[1]	BRACKET
	M		METRIC PART

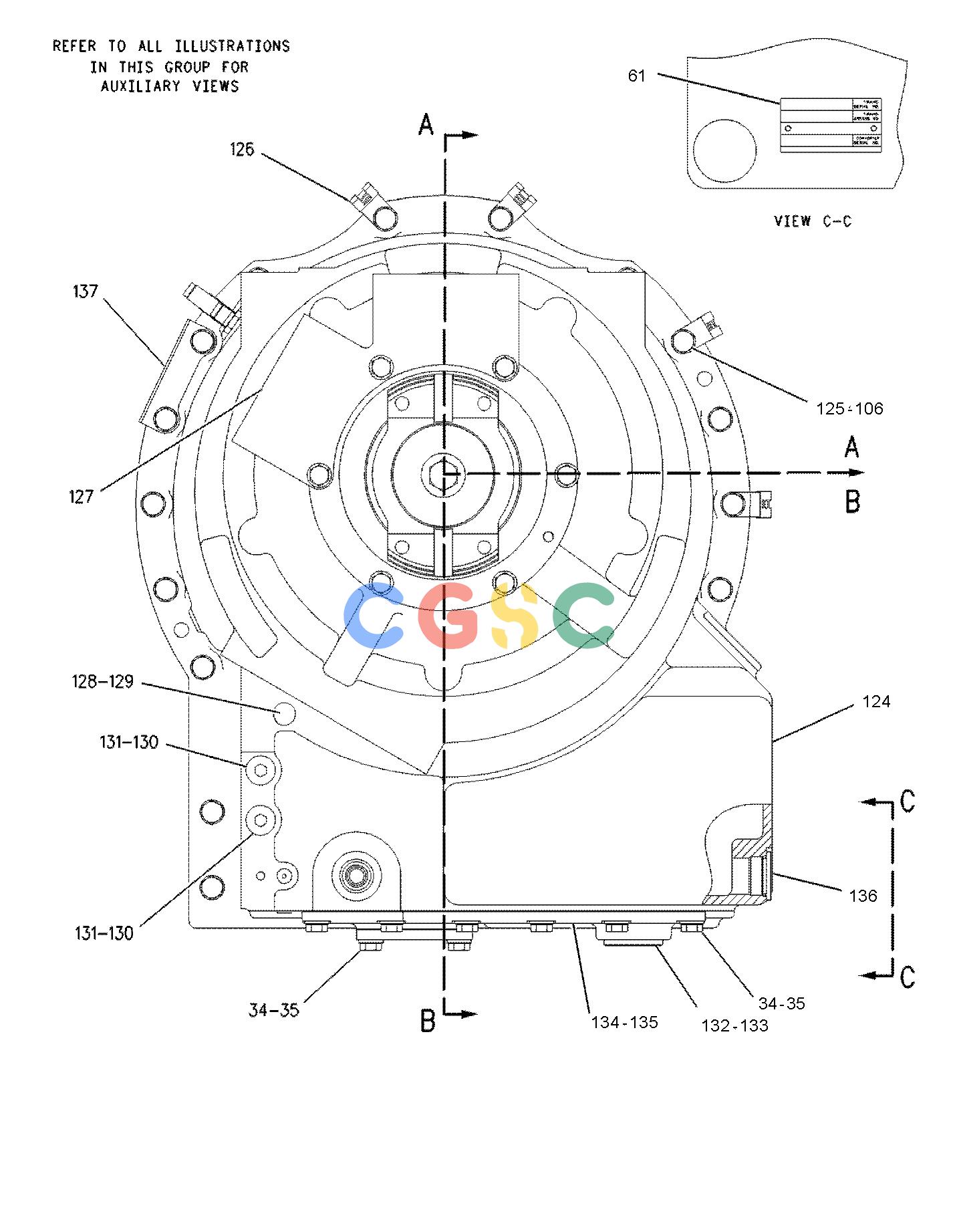

卡特零件查询（730） 139-1122: PLANETARY GP-TRANSMISSION
