Pos.	Part No	Qty	Parts name
1.	3E-5239	[1]	RELAY AS(24-VOLT)(ALARM)
2.	3E-6328Y	[1]	ALARM GP(24-VOLT)
3.	7G-1060	[1]	STRAP AS-GROUND
4.	8D-6946	[1]	FLASHER AS(24-VOLT)
5.	8E-1118	[1]	ANTENNA AS
6.	9D-4068	[1]	SWITCH AS-PUSH BUTTON
7.	9X-2185	[4]	SCREW(8-15X0.44-IN)
8.	107-6032	[1]	LAMP AS-DOME(24-VOLT)(CAB)
	259-1286	[1]	LAMP(24-VOLT, 10-WATT)(DOME)
9.	109-8981	[1]	CABLE AS-COAXIAL
10.	116-5710	[1]	GROMMET
11.	117-2311	[1]	SOCKET-AUXILIARY POWER(12-VOLT)
12.	124-6046	[2]	SPEAKER AS-RADIO
13.	128-6157	[2]	PLATE
14.	147-1380	[1]	SWITCH AS-FOOT(DIFFERENTIAL LOCK)
	8T-8729	[2]	PIN-CONNECTOR(16-GA TO 18-GA)
	102-8802	[1]	KIT-RECEPTACLE(2-PIN)
			(INCLUDES RECEPTACLE AS & WEDGE)
15.	163-6088	[1]	MODULE AS(INTERMITTENT WIPER)
	8T-8729	[3]	PIN-CONNECTOR(16-GA TO 18-GA)
	102-8803	[1]	KIT-RECEPTACLE(3-PIN)
			(INCLUDES RECEPTACLE AS & WEDGE)
16.	164-8473	[2]	LOUVER AS
17.	189-3744	[1]	SEAL
18.	241-4505	[6]	PLUG
19.	241-8368Y	[1]	SWITCH GP-MAGNETIC(24-VOLT)
20.	255-2752Y	[1]	SWITCH GP-START(IGNITION)(IGNITION)
21.	260-0162Y	[1]	LAMP GP-FLOOD(24-VOLT)
22.	267-5243	[1]	PANEL AS
23.	271-2818	[1]	SWITCH AS-ROCKER(HEADLIGHTS)(HEADLIGHTS)
24.	271-2820	[1]	SWITCH AS-ROCKER(DIFFERENTIAL LOCK)(DIFFERENTIAL LOCK)
25.	271-2825	[1]	SWITCH AS-ROCKER(AIR CONDITIONER)(AIR CONDITIONER)
26.	271-2826	[1]	SWITCH AS-ROCKER(WORK LIGHT)(WORK LIGHT)
27.	271-2828	[1]	SWITCH AS-ROCKER(HAZARD)(WORK LIGHT)
28.	271-2830	[1]	SWITCH AS-ROCKER(SECONDARY STEERING)(SECONDARY STEERING)
29.	299-9240	[1]	SWITCH AS-MULTIFUNCTION(HD LIGHT, TURN SIG, WDO WIPER)
	8T-8729	[12]	PIN-CONNECTOR(16-GA TO 18-GA)
	174-3091	[1]	KIT-RECEPTACLE(12-PIN)
			(INCLUDES RECEPTACLE AS & WEDGE)
30.	299-9241	[1]	SWITCH AS-MULTIFUNCTION(LH)
	8T-8729	[4]	PIN-CONNECTOR(16-GA TO 18-GA)
	8T-8737	[2]	PLUG-SEAL
	151-9275	[1]	KIT-RECEPTACLE(6-PIN)
			(INCLUDES RECEPTACLE AS & WEDGE)
31.	329-2477	[1]	PLATE AS
	5C-9855M	[8]	BOSS(M8X1.25X19-MM)
32.	331-2887	[1]	SWITCH AS-ROCKER(HEADLIGHT DIMMER)(HEADLIGHT DIMMER)
33.	334-7785	[1]	SWITCH AS-ROCKER(HOOD RELEASE)(HOOD RELEASE)
			(EACH SWITCH AS INCLUDES)
	111-7899	[1]	GASKET
34.	336-6687	[1]	CAP-PROTECTIVE(FEMALE)
35.	336-8940	[1]	DISPLAY GP-MONITOR(CMPD)
36.	340-7161	[1]	CONVERTER-POWER(24-VOLT TO 12-VOLT)
37.	340-7389	[1]	PANEL AS-INSTRUMENT
38.	343-4505	[1]	PLATE
39.	346-8101	[1]	HARNESS AS-TRANSMISSION(TRANSMISSION OUTPUT SPEED)
	8T-8729	[8]	PIN-CONNECTOR(16-GA TO 18-GA)
	245-0168	[1]	RECEPTACLE AS-CONNECTOR(8-PIN)
40.	347-9507	[1]	BEZEL-RADIO
41.	354-0738	[1]	PLATE AS
	6V-9632M	[6]	NUT-WELD(M6X1-THD)
	7T-1099	[1]	LINK
42.	354-7732	[1]	WIRE AS
43.	358-8802	[1]	INSULATION
44.	363-7677	[1]	DOOR GP-ACCESS(FUSE PANEL)
	344-2588	[1]	HINGE AS
	302-4764	[1]	LATCH AS
	9M-5733	[7]	RIVET-POP
	3H-0240	[7]	WASHER(5X9.7X0.8-MM THK)
45.	367-5213	[1]	SWITCH AS-ROCKER(24-VOLT)(PARKING BRAKE)
46.	373-3657	[1]	PLATE AS
	6V-9632M	[8]	NUT-WELD(M6X1-THD)
	7T-1099	[3]	LINK
	7X-0750M	[1]	BOSS-WELD(M10X1.5X55-MM)
	8T-3490M	[2]	NUT-WELD(M10X1.5-THD)
47.	382-7576Y	[1]	HARNESS AS-CAB(BULKHEAD)(BULKHEAD)
48.	382-7577Y	[1]	HARNESS AS-CAB(SEAT)(SEAT)
49.	382-7578Y	[1]	HARNESS AS-WINDOW WIPER
50.	391-4126Y	[1]	HARNESS AS-CAB(UPPER)
51.	392-8995Y	[1]	HARNESS AS-CAB(PANEL)
52.	392-8996Y	[1]	HARNESS AS-CAB(MAIN)
53.	392-8997	[1]	BRACKET
54.	396-1169	[1]	PLATE-MOUNTING
55.	320-9715	[1]	CABLE AS(CAMERA)
56.	114-6658	[2]	WASHER(6.5X17X1-MM THK)
57.	104-2091	[8]	SCREW-FLAT HEAD(6-20X0.5-IN)
58.	124-0174	[1]	CLIP(LOOP)
59.	132-5789	[1]	CLIP(LADDER)
60.	161-6987	[2]	WASHER-HARD(5.2X16X1.5-MM THK)
61.	174-8131M	[4]	SCREW-TRUSS HEAD(M4X0.7X12-MM)
62.	195-9223	[4]	SCREW-PAN HEAD(10-14X0.63-IN)
63.	213-7315M	[6]	SCREW-TRUSS HEAD(M4X0.7X25-MM)
64.	271-9408M	[4]	SCREW-TRUSS HEAD(M5X0.8X10-MM)
65.	298-6434M	[2]	SCREW(M5X0.8X12-MM)
66.	352-3968	[1]	CLIP(LADDER)
67.	365-6773	[1]	CONTROL GP-UNPROGRAMMED(ELECTRONIC)(ELECTRONIC)
68.	3E-8020M	[6]	SCREW-TRUSS HEAD(M6X1X25-MM)
69.	3S-2093	[82]	STRAP-CABLE
70.	3S-9557	[8]	SCREW-PAN HEAD(4-40X0.5-IN)
71.	4P-7581	[8]	CLIP(LADDER)
72.	4V-6981	[2]	SCREW-BUTTON HEAD(1/4-20X0.75-IN)
73.	5C-9553M	[1]	BOLT(M6X1X16-MM)
74.	5P-4116	[2]	WASHER-HARD(8.8X20.5X2-MM THK)
75.	5P-8525	[1]	GROMMET
76.	5P-9297	[2]	CLIP(LOOP)
77.	6D-3479	[2]	CLIP(LOOP)
78.	6I-1418	[4]	SPACER(8.2X12.7X28.7-MM THK)
79.	7K-1181	[20]	STRAP-CABLE
80.	7X-0579	[4]	WASHER-HARD(8.8X25.5X2-MM THK)
81.	7X-0818M	[4]	BOLT(M8X1.25X45-MM)
82.	7X-2533M	[2]	BOLT(M6X1X35-MM)
83.	8M-2770	[1]	CLIP(LOOP)
84.	8T-0289M	[2]	BOLT(M5X0.8X20-MM)
85.	8T-4121	[22]	WASHER-HARD(11X21X2.5-MM THK)
86.	8T-4133M	[1]	NUT(M10X1.5-THD)
87.	8T-4137M	[22]	BOLT(M10X1.5X20-MM)
88.	8T-4138M	[4]	BOLT(M6X1X20-MM)
89.	8T-4171M	[4]	BOLT(M6X1X12-MM)
90.	8T-4205	[6]	WASHER-HARD(7.2X14.5X2-MM THK)
91.	8T-4970M	[2]	BOLT(M6X1X14-MM)
92.	8T-9655	[8]	MOUNT-ISOLATION
93.	9W-0335	[1]	LIGHTER AS-CIGAR(24-VOLT)
94.	9X-1046M	[16]	SCREW(M4X0.7X18-MM)
95.	9X-2042M	[4]	SCREW-TRUSS HEAD(M6X1X12-MM)
96.	9X-2045M	[4]	SCREW-TRUSS HEAD(M6X1X20-MM)
97.	9X-8256	[7]	WASHER(6.6X12X2-MM THK)
98.	319-6827	[1]	HARNESS AS-WIRING(CAMERA)
	155-2257	[1]	KIT-CONNECTING PLUG(12-PIN)
			(INCLUDES PLUG AS, WEDGE & INTERFACE SEAL)
	8T-8737	[8]	PLUG-SEAL
	125-7874E		TUBE-HEAT SHRINK(5.72-MM DIA)(10-CM)
	8T-8730		SOCKET-CONNECTOR(16-GA TO 18-GA)
	E		ORDER BY THE CENTIMETER
	M		METRIC PART
	R		REMANUFACTURED PART MAY BE AVAILABLE
	Y		SEPARATE ILLUSTRATION

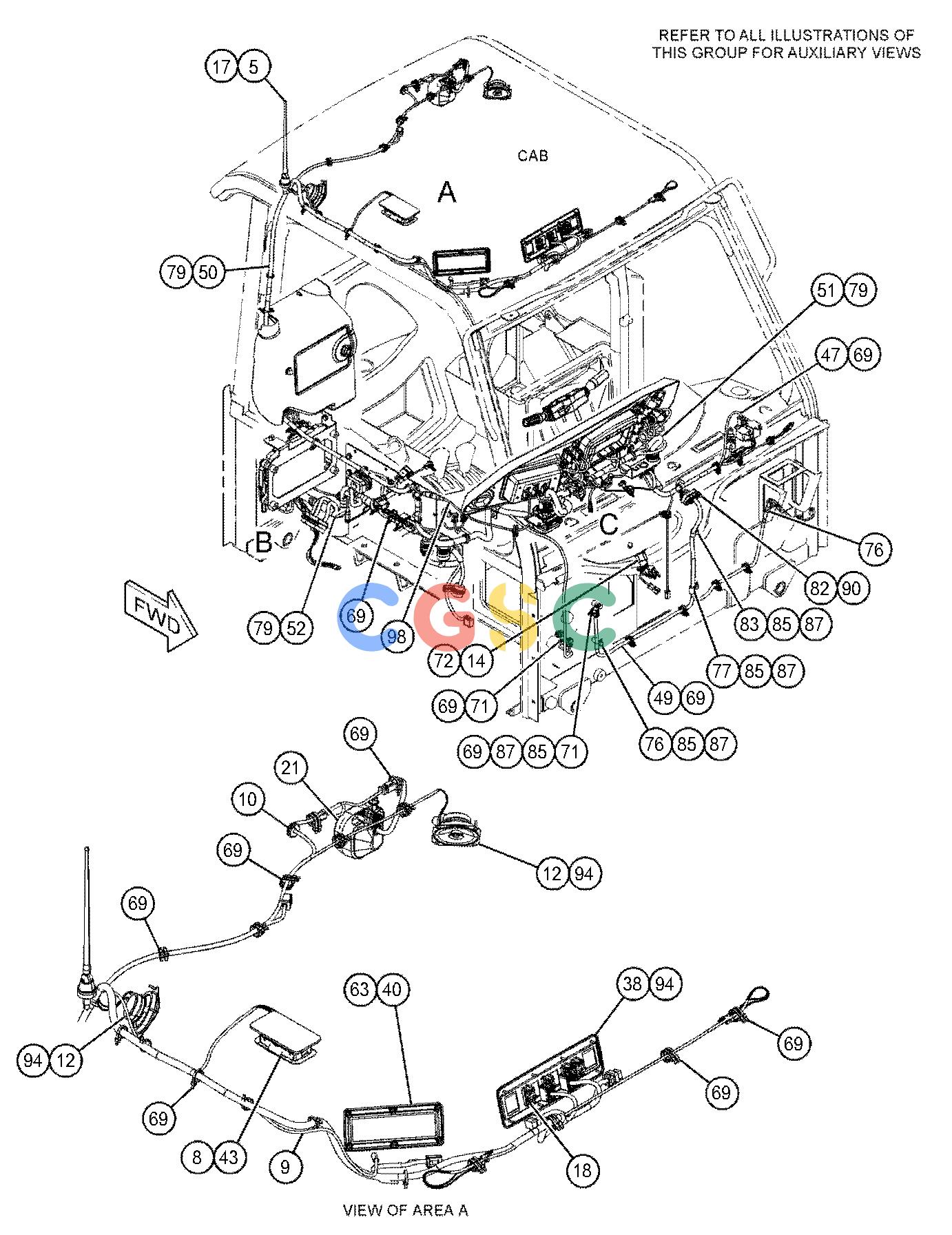

卡特零件查询（725C） 392-8988: WIRING GP-CAB
