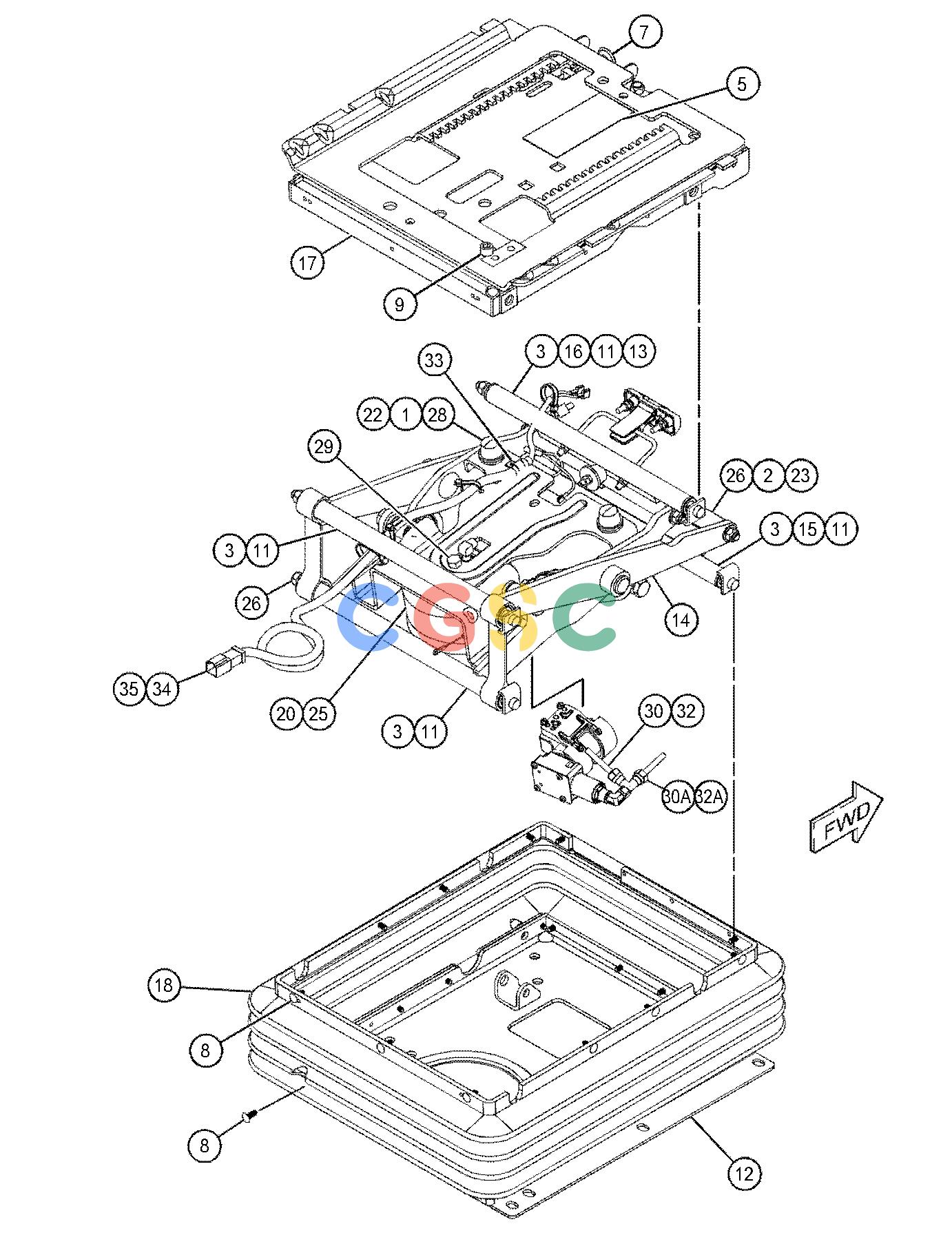

| 1. | 3P-9900 | [5] | WASHER(10.5X30X3-MM THK) | |
| 2. | 4B-4278 | [2] | WASHER(10.2X20.5X1.6-MM THK) | |
| 3. | 4V-8577 | [12] | BEARING | |
| 5. | 145-0326 | [1] | FILM-INSTRUCTION(SEAT ADJUSTMENT) | |
| 7. | 164-1234 | [1] | PLATE | |
| 8. | 101-0003 | [26] | FASTENER | |
| 9. | 169-7380 | [1] | BOLT-SOCKET HEAD(3/8-16X0.375-IN) | |
| 11. | 192-7752 | [4] | SHAFT AS | |
| 12. | 192-7755 | [1] | HOUSING AS(LOWER) | |
| 13. | 314-5274 | [1] | SHAFT(INNER) | |
| 14. | 192-7767 | [1] | SCISSORS AS | |
| 15. | 192-7783 | [1] | TOGGLE AS(WIDE) | |
| 16. | 192-7787 | [1] | TOGGLE AS(NARROW) | |
| 17. | 192-7790 | [1] | HOUSING AS(UPPER) | |
| 18. | 192-7795 | [1] | BOOT | |
| 20. | 192-7810 | [1] | SPRING AS-AIR | |
| | 163-1135 | [1] | SPRING | |
| | 5P-4423 | [1] | ELBOW | |
| 22. | 192-7820 | [3] | BUMPER | |
| 23. | 314-5275 | [1] | SHAFT(OUTER) | |
| 25. | 108-4311 | [1] | SCREW-MACHINE(3/8-16X0.75-IN) | |
| 26. | 2K-4973 | [8] | LOCKNUT(3/8-16-THD) | |
| 28. | 5C-2890M | [3] | NUT(M6X1-THD) | |
| 29. | 8T-9371 | [1] | BOLT(3/8-16X0.5-IN) | |
| 30. | 211-5358E | | CONDUIT-FLEXIBLE(26.7-CM) | |
| 30A. | 211-5358E | | CONDUIT-FLEXIBLE(35.6-CM) | |
| 32. | 5P-6010D | | TUBE(0.3-M) | |
| 32A. | 5P-6010D | | TUBE(0.4-M) | |
| 33. | 442-8151C | [1] | CLIP-CABLE | |
| 34. | 433-5754C | [1] | HARNESS AS-WIRING(SEAT AIR COMPRESSOR) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 5P-4571 | [2] | TERMINAL-BLADE(14-GA TO 16-GA) | |
| | 097-7234 | [2] | TERMINAL-BLADE(18-GA TO 22-GA) | |
| | 9X-3401 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1767 | [2] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 1P-0810B | | TAPE-ELECTRICAL | |
| | 329-3734B | | TAPE-ELECTRICAL | |
| 35. | 3S-2093C | [4] | STRAP-CABLE | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 192-7799 | [1] | KIT-AIR VALVE & SWITCH(SEAT) | |
| | | | (INCLUDES KNOB ASSEMBLY) |
| | 212-7779BY | [1] | KIT-SHOCK ABSORBER(SUSPENSION SEAT)(ADJUSTABLE SEAT) | |
| | 213-5170B | [1] | KIT-SEAT ADJUSTER(SEAT ADJUSTMENT) | |
| | | | (INCLUDES BOLTS, NUTS, ROD, ARM & HOUSING) |
| | 211-9294 | [1] | KIT-TETHER(SEAT) | |
| | | | (INCLUDES TETHER) |
| | 192-7848B | [1] | KIT-SHOCK ABSORBER(SUSPENSION SEAT) | |
| | | | (INCLUDES SHOCK ABSORBER, BEARINGS, WASHERS, BOLTS, LOCKNUT, & LOCKWASHER) |
| | 212-7783H | [1] | KIT-PULLEY | |
| | | | (INCLUDES PIN, PULLEY, RETAINING RING, SETSCREW & SPRING) |
| | 397-6405CY | [1] | KIT-SEAT AIR COMPRESSOR | |
| | | | (INCLUDES STRAP, SCREWS, COMPRESSOR AS, BRACKET & HARNESS ASSEMBLIES) |
| | 346-4360AB | [1] | KIT-SHOCK ABSORBER(SUSPENSION SEAT)(HEAVY-DUTY) | |
| | | | (INCLUDES SHOCK ABSORBER, BEARINGS, WASHERS, BOLTS, LOCKNUT, & LOCKWASHER) |
| | A | | NOT PART OF THIS GROUP |
| | B | | USE AS REQUIRED |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | H | | KIT MARKED H SERVICES 212-7779 KIT-SHOCK ABSORBER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
