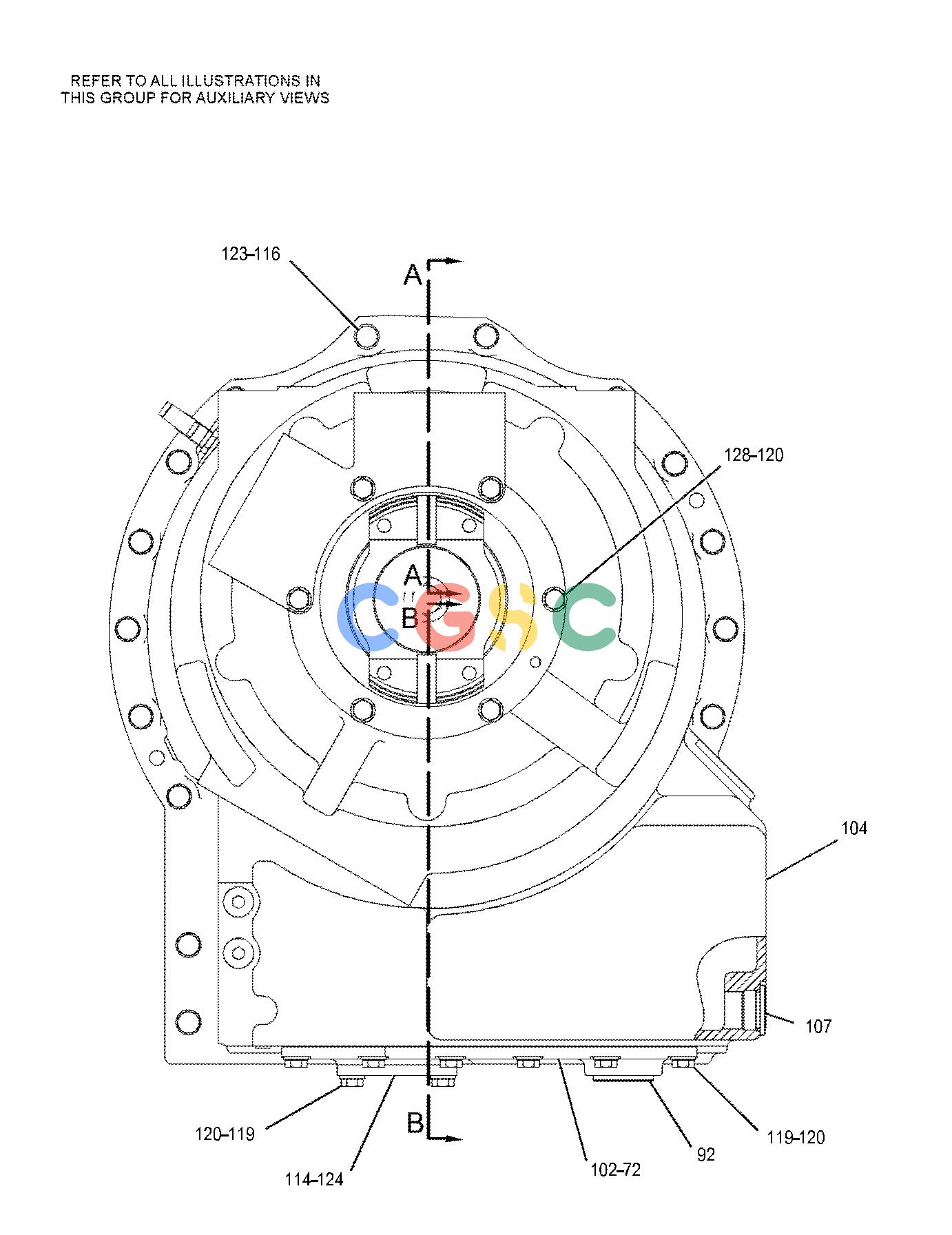

卡特零件查询（725） 227-4551: PLANETARY GP-TRANSMISSION

Pos.	Part No	Qty	Parts name
1.	1K-6984	[1]	RING-RETAINING
2.	1K-6985	[1]	RING-RETAINING
3.	1M-3937	[1]	RING-METAL SEAL
4.	1P-9216	[3]	RING-SEAL
5.	1T-0762	[1]	RACE-THRUST BEARING
6.	1T-1401	[1]	RING-SEAL
7.	2S-0669	[12]	BEARING
8.	3P-1681	[5]	DOWEL-REACTION
9.	3P-7566	[5]	SPRING
10.	3W-0203	[1]	SEAL-RING
11.	4D-7889	[1]	RING
12.	4H-6520	[1]	SEAL-O-RING
13.	4M-8871	[5]	DOWEL
14.	5L-8869	[1]	RING-METAL SEAL
15.	5M-1654	[5]	SPRING
16.	5M-6126	[4]	BEARING AS-ROLLER
17.	5P-3488	[1]	RACE & ROLLER AS-INNER
18.	6I-8200	[1]	RING-LOCK
19.	6T-0248	[2]	RING-SEAL
20.	9X-8268	[7]	WASHER(17.5X30X3.5-MM THK)
21.	6V-2394	[1]	RING-RETAINING
22.	6Y-2027	[6]	DISC-FRICTION
23.	6Y-8030	[1]	RING-SEAL
24.	7G-5674	[1]	RING-SEAL
25.	7G-9968	[1]	RING-SEAL
26.	7T-5601	[1]	PLATE
27.	8E-8300	[12]	DISC-THRUST
28.	8E-8304	[8]	DISC-THRUST
29.	8E-8306	[8]	DISC-THRUST
30.	8E-8313	[1]	DISC-THRUST
31.	8J-7199	[1]	RING-RETAINING
32.	8S-3370	[1]	RING-SEAL
33.	9G-0281	[2]	RING-SEAL
34.	9J-3999	[5]	SPRING
35.	9M-1990	[5]	DOWEL
36.	9M-8808	[10]	SPRING
37.	9M-9729	[1]	SEAL-O-RING
38.	9W-6904	[1]	RING-RETAINING
39.	9W-7925	[2]	BEARING AS-TAPERED ROLLER
40.	9W-7926	[2]	CUP-BEARING
41.	9X-4605	[1]	SEAL-LIP TYPE
42.	126-1499M	[7]	BOLT(M16X2X250-MM)
43.	131-4091	[2]	SEAL-RING
44.	133-2905	[1]	RING-RETAINING
45.	133-3349	[1]	GEAR-RING(68-TEETH)
46.	133-3350	[4]	GEAR-PLANETARY(24-TEETH)
47.	133-3352	[1]	GEAR-RING(69-TEETH)
48.	133-3353	[4]	GEAR-PLANETARY(22-TEETH)
49.	133-3354	[1]	GEAR-SUN(24-TEETH)
50.	133-3355	[6]	GEAR-PLANETARY(18-TEETH)
51.	133-7595	[4]	SHAFT-PLANETARY
52.	133-7596	[4]	SHAFT-PLANETARY
53.	134-8361	[5]	PLATE-CLUTCH
54.	259-2187	[1]	HOUSING AS
	1A-2223	[2]	DOWEL
55.	135-1754	[1]	MANIFOLD AS
	3F-0957	[2]	DOWEL
56.	135-1758	[1]	CARRIER-PLANETARY
57.	135-1759	[1]	CARRIER-PLANETARY
58.	137-1618	[1]	PISTON
59.	137-1619	[1]	PISTON
60.	276-0017	[14]	PLATE-CLUTCH
61.	137-2418	[1]	SHAFT
62.	138-0394	[1]	PISTON
63.	138-2319	[1]	PISTON-CLUTCH
64.	138-2320	[5]	ROD
65.	138-3115	[1]	RETAINER
66.	138-7034	[1]	HUB-CLUTCH
67.	138-7758	[1]	CARRIER-RING
68.	138-8661	[1]	COUPLING
69.	139-9313	[4]	BEARING-SPECIAL
70.	140-1642	[1]	GEAR AS-SUN(27-TEETH)
	185-0756	[1]	BUSHING
71.	140-1724	[1]	HUB
72.	140-1855	[1]	GASKET
73.	140-2741	[5]	SPRING
74.	140-2742	[1]	ROTOR-SENSOR
75.	140-2743	[1]	PLATE-END
76.	140-2777	[1]	PLATE-RETAINER
77.	140-3134	[1]	CARRIER
78.	140-9842	[2]	RING-LOCK
79.	140-9843	[1]	DISC-THRUST
80.	140-9844	[1]	TUBE AS-SUCTION
81.	140-9848	[2]	RACE-THRUST BEARING
82.	140-9849	[1]	DISC-THRUST
83.	140-9854	[1]	TUBE AS
84.	144-1111	[1]	SPACER-SPECIAL
85.	150-3251	[1]	CARRIER AS
	185-0757	[1]	BUSHING
86.	159-1043	[1]	RING-RETAINING
87.	159-1044	[1]	RING-RETAINING
88.	160-2750	[1]	DISC-THRUST
89.	160-2751	[1]	DISC-THRUST
90.	165-7789	[1]	CARRIER AS
	185-0758	[1]	BUSHING
91.	166-6323	[1]	RACE
92.	176-0184	[1]	PLUG AS-DRAIN(MAGNETIC)
	2S-4078	[1]	SEAL-O-RING
	6V-0439	[1]	PLUG-MAGNETIC(DRAIN, POWER TRAIN OIL)
93.	192-3806	[1]	PISTON-BALANCE
94.	195-5973	[6]	SHAFT AS
	<!-- COMMENT -->		(EACH INCLUDES)
	5H-8985	[1]	PIN-SPRING
95.	215-6432	[1]	HUB AS
96.	222-5203	[9]	DISC-FRICTION
97.	223-7519	[5]	DISC-FRICTION
98.	224-9620	[1]	PISTON
99.	227-4552	[1]	HOUSING AS
	1A-2223	[4]	DOWEL
100.	227-4554	[1]	HOUSING-CLUTCH
101.	227-4555	[1]	HOUSING AS
	1A-2223	[2]	DOWEL
102.	228-0393	[1]	COVER
103.	231-3318	[1]	SHAFT AS
	194-7093	[1]	BEARING-THRUST
104.	235-5292	[1]	CASE-TRANSMISSION
105.	140-1769	[1]	BEARING-SPECIAL
106.	146-7447	[2]	RING-SEAL
107.	148-8406	[1]	PLUG AS
	7M-8485	[1]	SEAL-O-RING
	9S-9334	[1]	PLUG
108.	164-5619	[2]	PLUG AS
	<!-- COMMENT -->		(EACH INCLUDES)
	2M-9780	[1]	SEAL-O-RING
	9S-8006	[1]	PLUG(7/8-14-THD)
109.	1T-1078	[1]	BEARING-THRUST
110.	2P-3628	[3]	SEAL-O-RING
111.	3E-8007M	[2]	BOLT-SOCKET HEAD(M12X1.75X90-MM)
112.	3S-2708	[14]	PIN-SPRING
113.	4F-8824	[1]	SEAL-O-RING
114.	4S-5971	[1]	COVER
115.	5P-3489	[1]	RACE-BEARING OUTER
116.	5P-8245	[31]	WASHER-HARD(13.5X25.5X3-MM THK)
117.	6T-0257	[1]	RING-SEAL
118.	6V-3940M	[6]	BOLT(M8X1.25X25-MM)
119.	6V-4248M	[16]	BOLT(M10X1.5X25-MM)
120.	6V-5839	[23]	WASHER(11X21X2.5-MM THK)
121.	6V-6317M	[1]	BOLT(M10X1.5X20-MM)
122.	6V-8197M	[10]	BOLT(M12X1.75X40-MM)
123.	6V-8675M	[21]	BOLT(M12X1.75X35-MM)
124.	7F-8268	[1]	SEAL-O-RING
125.	8B-4967	[2]	SEAL-O-RING
126.	8D-9738	[1]	SEAL-RING
127.	263-9575M	[9]	BOLT-SOCKET HEAD(M12X1.75X30-MM, SELF LOCKING)
128.	6V-1820M	[6]	BOLT(M10X1.5X30-MM)
	<!-- NOTE -->M		METRIC PART
	<!-- NOTE -->R		REMANUFACTURED PART MAY BE AVAILABLE
