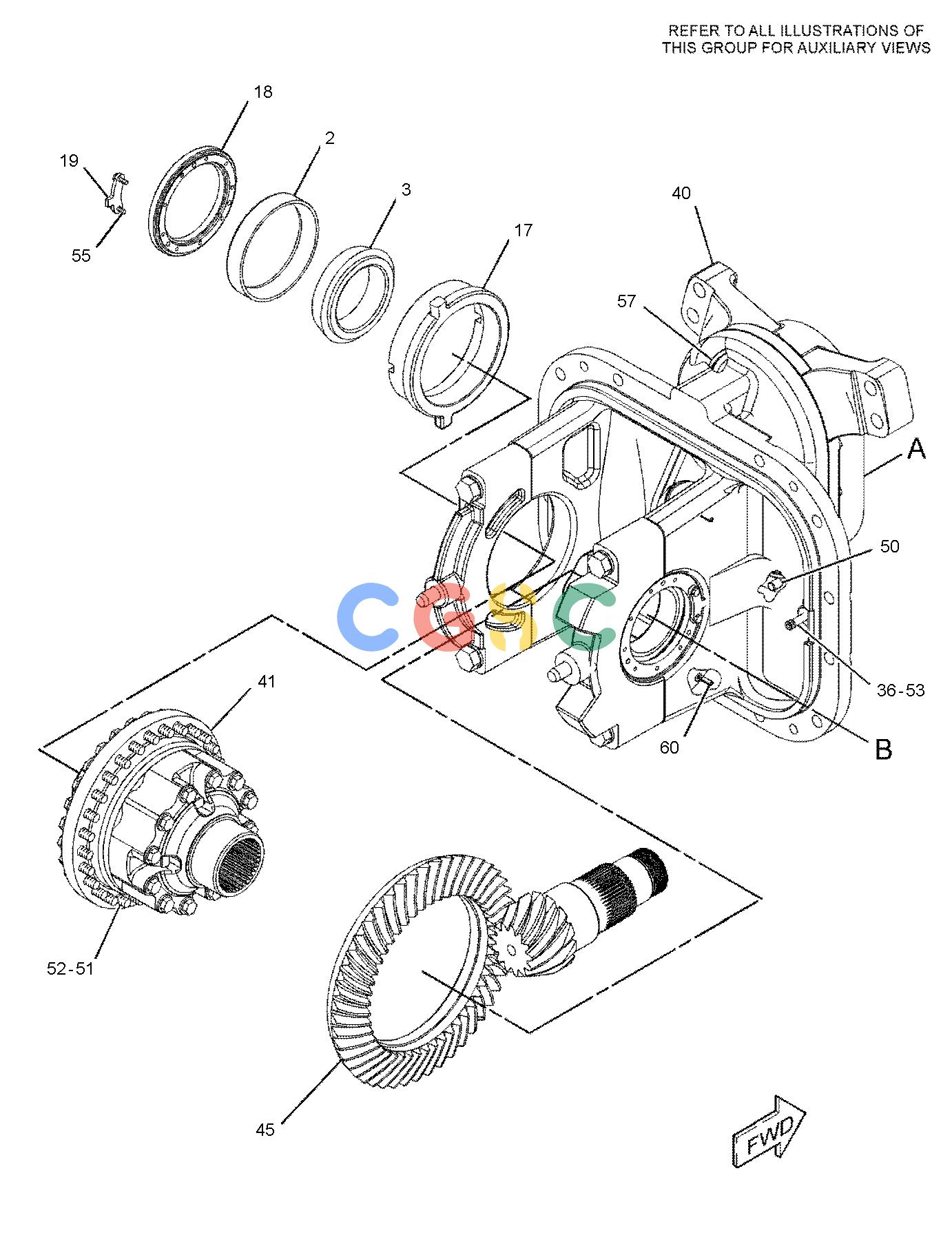

卡特零件查询（725） 282-6915: DIFFERENTIAL & BEVEL GEAR GP

Pos.	Part No	Qty	Parts name
1.	1J-2860	[1]	CUP-BEARING
2.	1P-4693	[2]	CUP-BEARING
3.	1P-4694	[2]	CONE-BEARING
4.	2D-9572	[1]	SEAL-O-RING
5.	3L-9409	[1]	CUP-BEARING
6.	314-9342	[1]	BEARING AS-TAPERED ROLLER
7.	3S-1374	[3]	SPRING
8.	5L-2031	[1]	CUP-BEARING
9.	5P-9505	[1]	CONE-BEARING
10.	6V-3950	[1]	CONE-BEARING
11.	8H-7801	[1]	CONE-BEARING
12.	8H-7803	[1]	CUP-BEARING
13.	9D-1853	[2]	RETAINER
14.	9D-1854	[1]	SPACER-SPECIAL(12.7-MM THK)
15.	127-1960M	[8]	SCREW-FLAT HEAD(M6X1X16-MM)
16.	136-6324	[6]	DISC-FRICTION
17.	138-1486	[2]	CAGE-BEARING
18.	138-1487	[2]	RING-ADJUSTMENT
19.	138-1488	[2]	LOCK
20.	138-1490	[3]	SPACER(10.2X18X15-MM THK)
21.	138-1497	[1]	CAGE
22.	138-1504	[1]	PISTON HOUSING
23.	138-1505	[1]	SPACER-SPECIAL
24.	138-1508	[1]	HUB
25.	138-4096	[5]	SHIM(0.05-MM THK)
26.	138-4097	[5]	SHIM(0.08-MM THK)
27.	138-4098	[3]	SHIM(0.12-MM THK)
28.	138-4099	[1]	SHIM(0.5-MM THK)
29.	258-4463	[1]	HUB AS
	151-8108	[3]	DOWEL
30.	151-8274	[6]	PLATE-CLUTCH
31.	151-8275	[1]	PLATE-CLUTCH
32.	151-8397	[2]	PLATE
33.	152-5464	[1]	GEAR(33-TEETH)
34.	160-8060	[1]	PISTON
35.	293-4503	[1]	SEAL-LIP TYPE
36.	163-1921	[1]	TUBE
37.	168-8410	[1]	GEAR AS(33-TEETH)
39.	286-3688	[1]	LOCKNUT AS
	5L-4753	[1]	RING-RETAINING
40.	188-1000Y	[1]	CARRIER GP-DIFFERENTIAL(AXLE, CENTER)
41.	193-4302Y	[1]	DIFFERENTIAL GP
43.	217-3252	[1]	BEARING-NEEDLE
44.	224-2323	[1]	BEARING-THRUST
45.	279-4630	[1]	SET-BEVEL GEAR
46.	290-4649	[1]	RETAINER-SEAL
47.	138-4114	[4]	SHIM(0.08-MM THK)
48.	138-4115	[5]	SHIM(0.12-MM THK)
49.	184-4338	[1]	SHIM(0.92-MM THK)
50.	1S-2199	[2]	DOWEL
51.	287-8326	[28]	BOLT(1/2-20X1.625-IN)
52.	2M-0849	[28]	WASHER-HARD(13.5X25.5X5-MM THK)
53.	4J-2506	[2]	SEAL-O-RING
54.	4K-6804	[1]	SEAL-O-RING
55.	5C-9553M	[4]	BOLT(M6X1X16-MM)
56.	5P-8245	[4]	WASHER-HARD(13.5X25.5X3-MM THK)
57.	6V-5057	[1]	SEAL-O-RING
58.	7X-0909M	[4]	BOLT(M12X1.75X140-MM)
59.	7X-7729	[3]	WASHER(11X25X3-MM THK)
60.	8C-3347	[2]	PIN-ROLL
61.	8T-4121	[10]	WASHER-HARD(11X21X2.5-MM THK)
62.	8T-4195M	[13]	BOLT(M10X1.5X30-MM)
63.	9F-1399	[1]	SEAL-O-RING
	<!-- NOTE -->M		METRIC PART
	<!-- NOTE -->Y		SEPARATE ILLUSTRATION
