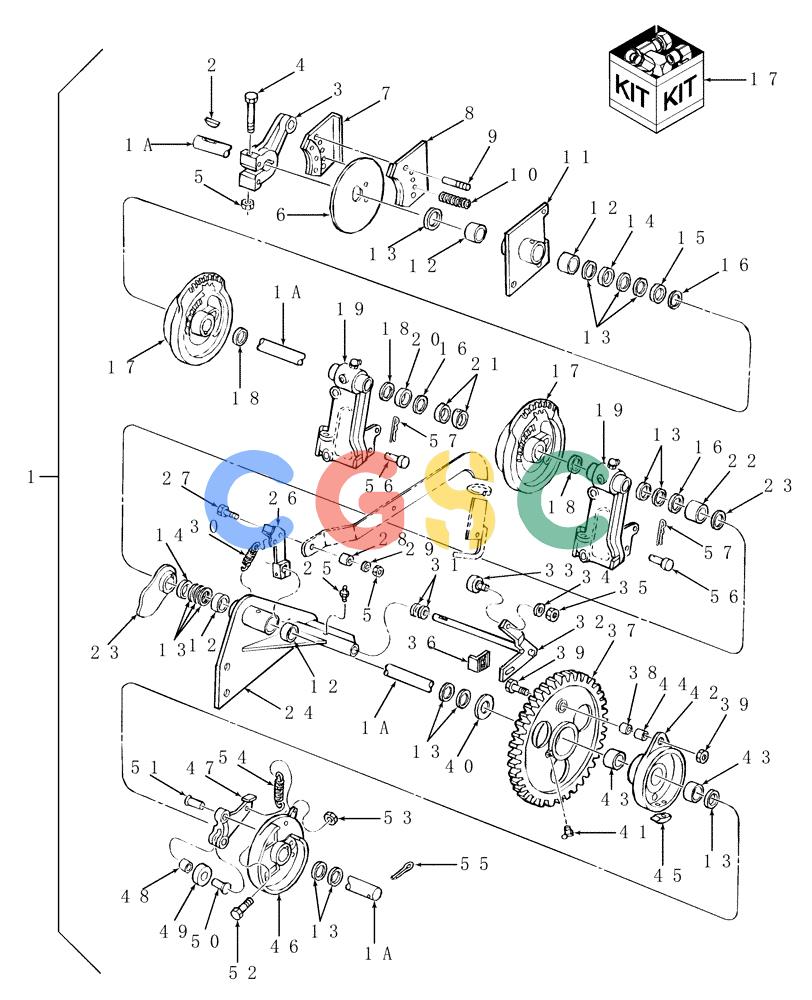

凯斯零件查询(SBX540) - CASE IH SQUARE BALER (12/01-8/08) (042) - TWINE KNOTTER, SBX540 Case Agriculture

作者：广数供应链运营团队
浏览数：
时间：2025-01-27 19:59:02
Parts Contact me WhatsApp

工程机械零件图册查询

专业 覆盖挖掘机、装载机、推土机全系配件
立即查询
Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴 Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴
Pos. Part No Qty Parts name Comments
1. 86635627 [1]   SHAFT   NH Twine Knotter
1A. 86507986 [1]   SHAFT   NH Knotter
2. 126-29 [1]   WOODRUFF KEY,#C, 5/16" x 1 1/8"   CAS Superseded by part number: 280414
3. 86640969 [1]   ARM   NH Knotter
. . 614-8016 [2]   BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd   CAS Superseded by part number: 16043224
. . 492-11031 [2]   LOCK WASHER,5/16"   CAS Superseded by part number: 83990583
4. 413-648 [1]   BOLT,Hex, 3/8" - 16 x 3", Gr 5   CAS Superseded by part number: 280161
5. 232-4146 [1]   NUT,3/8"-16, GC   CAS Superseded by part number: 88902
6. 602702 [1]   BRAKE DISC   NH
7. 791788 [1]   BRAKE SHOE   NH
8. 791787 [1]   BRAKE SHOE   NH
9. 770210 [2]   PIN,9.53mm OD x 60.2mm L   NH Inch, 3/8"
. . 435-1828 [2]   GROOVED PIN,1/4" x 1 3/4", Type A   NH Superseded by part number: 84064
. . 425-146 [4]   JAM NUT,3/8" - 16, Gr 5   CAS Superseded by part number: 87016560
10. 128383 [3]   SPRING   NH
. . 413-440 [3]   BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5   CAS Superseded by part number: 87845
. . 280129 [3]   NUT,1/4"-20   NH
. . 495-11028 [3]   WASHER,1/4", SAE   CAS Superseded by part number: 87361, 72187256
11. 603438 [1]   BEARING HOUSING,1.385" ID   NH RH, Includes: (2) Ref. 12
. . 571382 [1]   LUBE NIPPLE,1/4"-28 NPT x 1.62" lg   GI
. . 413-820 [2]   BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5   CAS Superseded by part number: 72187215, 87670
. . 232-4148 [2]   NUT,1/2"-13, GC   CAS Superseded by part number: 86992215
. . 65319 [4]   WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk   NH
12. 222939 [4]   BUSHING,35.13mm ID x 41.34mm OD x 19.05mm L   NH
13. 58630 [1]   WASHER,.0299" Thk   NH
14. 86640867 [2]   SPACER   NH
. . 84382 [2]   SET SCREW,Hex Soc, 5/16"-18 x 5/8"   NH
. . 425-145 [2]   JAM NUT,Jam, 5/16"-18, G5   CAS Superseded by part number: 86637931
15. 647634 [1]   SPACER   NH
16. 9800957 [1]   WASHER,35.81mm ID x 50.8mm OD x 1.52mm Thk   NH
. . 126-47 [2]   WOODRUFF KEY,#28, 5/16" x 2 1/8"   CAS Superseded by part number: 87123
17. 86577790 [2]   SERVICE KIT   NH Cam Gear, 1/4" Keyway, Includes: Bill Hook Pinion, Worm Pinion, Cam Gear, & Instructions
. . 87481 [2]   KEY   NH Square, 1/4" x 2", use w/ Ref. 1A
18. 267571 [3]   WASHER   NH Superseded by part number: 84075368
19. NSS [2]   NOT SOLD SEPARAT   CON FRAME Knotter , Refer to Fig. 41
20. 620972 [1]   SPACER   NH
21. 86640859 [2]   COLLAR   NH
. . 485-13112 [2]   SET SCREW,Sq Hd, 5/16"-18 x 3/4"   CAS Superseded by part number: 86512812
. . 570275 [3]   WASHER   NH
22. 86640805 [1]   SPACER   NH
23. 86640868 [1]   CAM   NH Twine Finger
. . 126-21 [1]   WOODRUFF KEY,#A, 1/4" x 7/8"   CAS Superseded by part number: E65556, 280934
24. 848861 [1]   SUPPORT   NH LH, Includes: (2) Ref. 12
. . 219-87 [1]   LUBE NIPPLE,1/4" - 28 NPTF   CAS Superseded by part number: 87414
26. 86641579 [1]   LEVER   NH Trip
. . 836-4065 [1]   WOODRUFF KEY,M4 x 6.5 x 15.72   CAS Superseded by part number: 10205820
. . 413-532 [1]   BOLT,Hex, 5/16" - 18 x 2", Gr 5   CAS Superseded by part number: 9636711
. . 425-105 [1]   NUT,5/16"-18, G5   CAS Superseded by part number: 9635082, 72187221
27. 413-616 [1]   BOLT,Hex, 3/8" - 16 x 1", Gr 5   CAS Superseded by part number: 88206, 72187206
28. 86641586 [1]   SPACER,10.5mm ID x 14.3mm OD x 8mm L   NH
30. 86640793 [1]   SPRING   NH
31. 27697 [2]   WASHER,16.66mm ID x 27mm OD x 1.52mm Thk   NH Superseded by part number: 87642936
32. 86641585 [1]   KNOTTER,198mm L   NH Trip
33. 36800 [1]   ROLLER BEARING   NH Cam
34. 285072 [1]   WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk   NH (3/8")
35. 425-116 [1]   NUT,3/8" - 24, Gr 5   CAS Superseded by part number: 86509310, 50066
36. 86640843 [1]   STOP   NH
. . 413-516 [1]   BOLT,Hex, 5/16" - 18 x 1", Gr 5   CAS Superseded by part number: 9635884, 72187198
. . 280736 [1]   NUT,5/16"-18, GC   NH
37. 86640965 [1]   GEAR   NH 39T Includes: Ref. 38
38. 58148 [1]   SLEEVE   NH Shear Bolt Superseded by part number: 87010851
39. 86578266 [1]   SHEAR BOLT,12-24 x 1 1/2"   NH #12-24 x 1-1/2"
40. 33004 [1]   WASHER   NH
41. 219-90 [1]   LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF   CAS Superseded by part number: 87569
42. 86641005 [1]   HUB   NH Clutch, Includes: Ref. 43 & 44 Superseded by part number: 87678480
. . 84443 [1]   SQUARE BOLT,3/8" - 16 x 3/4", Gr 2   NH Square Hd., 3/8" x 3/4"
. . 492-11038 [1]   LOCK WASHER,3/8"   CAS Superseded by part number: 80680, 72187249
. . 425-106 [1]   NUT,3/8"-16, Cl 5   CAS Superseded by part number: 9628503
44. 58147 [1]   SHEAR BOLT BUSHING,5.9mm ID x 17.36mm OD x 12mm L   NH Shear Bolt
45. 86502134 [1]   LATCH   NH
. . 414-612 [1]   BOLT,Hex, 3/8" - 24 x 3/4", Gr 5   CAS Superseded by part number: 280266
46. 86641488 [1]   CLUTCH MECHANISM   NH Knotter, Includes: Ref. 47 - 51
47. 86641708 [1]   PAWL   NH Knotter, Includes: 48 - 50
48. 86636722 [1]   SPACER,12.62mm ID x 19.05mm OD x 15.75mm L   NH 5/8" Long
48. 86977258 [1]   SPACER   NH 1/2" Long
49. 139881 [1]   ROLLER   PA
50. 617446 [1]   RIVET,Csk, 1/2" x 1 3/8"   NH
51. 617445 [1]   RIVET,Csk, 1/2" x 1 23/32"   NH
52. 413-840 [1]   BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5   CAS Superseded by part number: 87972
54. 18 [1]   SPRING   NH Safety Hook
55. 32-1232 [1]   COTTER PIN,3/16" x 2"   CAS Superseded by part number: 87400
56. 710230 [2]   RIVET,Button, 9.53mm OD x 25.4mm L   NH Drilled, 3/8" x 1"
57. 216698 [2]   COTTER PIN,0.125" OD x 1.75" L   NH
