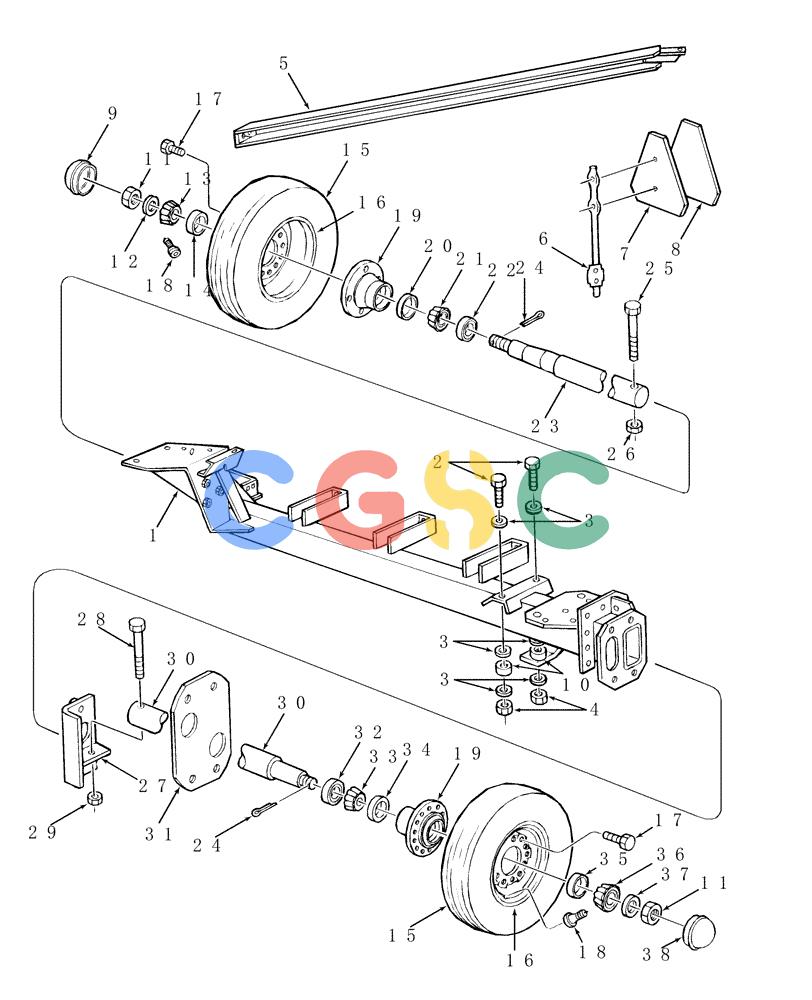

Pos.	Part No	Qty	Parts name	Comments
1.	86635500	[1]	AXLE	NH SBX520, SBX530
1.	86635605	[1]	AXLE	NH SBX540 Superseded by part number: 86635604
. .	814-12050	[1]	BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8	CAS Superseded by part number: 9706702
. .	614-12040	[2]	BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd	IH Superseded by part number: 86629541
. .	65319	[6]	WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk	NH
. .	832-46412	[3]	NUT,M12 x 1.75, Cl 8	CAS Superseded by part number: 100038
2.	814-10050	[2]	BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8	CAS Superseded by part number: 120069, 47110242
3.	285072	[6]	WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk	NH (3/8")
4.	832-46410	[2]	NUT,M10 x 1.5, Cl 8	CAS Superseded by part number: 100037
5.	86635505	[1]	BRACE	NH SBX520
5.	86635554	[1]	BRACE	NH SBX530
5.	86635607	[1]	BRACE	NH SBX540 Superseded by part number: 86630047
. .	811-10020	[2]	CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8	CAS Superseded by part number: 86512422
. .	811-12030	[1]	CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 30mm, Cl 8.8	CAS Superseded by part number: 120044
. .	140045	[2]	BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk	NH
. .	86513238	[1]	LOCK WASHER,.515” ID x 1.070” OD x .120” TK	NH Belleville, 1/2"
. .	825-1410	[2]	NUT,M10, Cl 8	CAS Superseded by part number: 100016
. .	829-1412	[1]	NUT,M12, Cl 10.9	CAS Superseded by part number: 337475
6.	195036	[1]	PLATE	NH Pole Mount
7.	86547710	[1]	EMBLEM	ZED KIT SMV
. .	84821	[2]	SCREW,Truss HD, #10 - 24 x 1/2"	NH
. .	492-11010	[2]	LOCK WASHER,#10	CAS Superseded by part number: 80684
. .	225-14110	[2]	NUT,#10-24	CAS Superseded by part number: 87304
8.	86547711	[1]	DECAL,SMV	NH SMV
9.	249130	[1]	HUB CAP	NH Hub, RH
10.	86610677	[2]	SPACER,10.3mm ID X 19.05mm OD X 14.3mm L	NH
11.	412106	[2]	SLOTTED NUT,M20 x 1.5, Cl 04	NH
12.	495-11081	[1]	WASHER,3/4", SAE	CAS Superseded by part number: 87381
13.	536056R91	[1]	ROLLER BEARING,0.8656" ID x 0.655"	IH Cone Superseded by part number: 574809
14.	574810	[1]	BEARING CUP,45.26mm OD x 12.06mm W	NH
15.	PL	[1]	PROCURE LOCALLY	BAS TIRE Rib Tread, 5.00-15, 4-Ply, Standard, RH, SBX520
15.	224151	[1]	TYRE/TIRE	NH Rib Implement, 27 x 9.50 - 15, 6-Ply, LH SBX520, RH SBX530, SBX540
15.	86564435	[1]	TYRE/TIRE	NH Terra Rib, 31 x 13.50-15, 8-Ply, Flotation, LH, SBX530, SBX540 Superseded by part number: TT41N397
16.	86622669	[1]	WHEEL	NH Disc, 4 Bolt, Standard, RH, SBX520
16.	86621299	[1]	WHEEL	NH 6 Bolt, 27 x 9.50-15 Flotation, RH, SBX530, SBX540 W/ 224151 Tire
16.	86622671	[1]	WHEEL	NH Disc, 6 Bolt, Flotation, LH, SBX520
16.	86621298	[1]	WHEEL	NH Disc, 6 Bolt, for 31x 13.50-15, Flotation, LH, SBX530, SBX540 Superseded by part number: 87047834
17.	32383	[12]	BOLT,Wheel, G5, 1/2"-20 x 13/16"	NH Wheel, G5, 1/2"-20 x 13/16"
18.	387897R91	[1]	VALVE STEM	IH Superseded by part number: 196033
18.	86626246	[1]	VALVE STEM	NH Tubeless Tire, LH, SBX530
19.	86978502	[1]	HUB	NH Wheel, RH, SBX520
19.	86977071	[1]	HUB	NH Wheel, LH, SBX520
19.	86631051	[1]	HUB	NH Wheel, RH, SBX530, SBX540
19.	86836910	[1]	HUB	NH Wheel, LH, SBX530, SBX540
20.	651817R1	[1]	BEARING CUP	IH Superseded by part number: 84356153
21.	651818R91	[1]	ROLLER BEARING,31.77 mm ID x 16.08 mm	IH Superseded by part number: 84356153
22.	663004R91	[1]	OIL SEAL	IH Oil Superseded by part number: B13281
23.	86977228	[1]	SPINDLE	NH RH
24.	432-1020	[2]	COTTER PIN,5/32" x 1 1/4"	CAS Superseded by part number: 86523851
25.	814-16080	[1]	BOLT,Hex, M16 x 2 x 80mm, Cl 8.8	CAS Superseded by part number: 120093
26.	832-46416	[1]	NUT,M16 x 2, Cl 8	CAS Superseded by part number: 86000441
27.	86629997	[1]	ANGLE	NH SBX520
. .	140046	[2]	BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk	NH SBX520
27.	86630431	[1]	ANGLE	NH SBX530, SBX540
28.	827-12080	[1]	BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9	CAS Superseded by part number: 412085
30.	9604345	[1]	SPINDLE	NH SBX520
30.	86977195	[1]	SPINDLE	NH SBX530, SBX540
31.	86629995	[1]	PLATE	NH Spindle
. .	614-16050	[4]	BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd	CAS Superseded by part number: 120090
. .	781316	[8]	WASHER,16.66mm ID x 28.45mm OD x 3.43mm Thk	NH Hardened
32.	100412	[1]	SEAL,44.45mm ID x 69.19mm OD x 10.72mm Thk	NH
33.	36057	[2]	BEARING CONE,38.11mm ID x 19.05mm W	NH 1-1/2" ID
34.	453012R1	[2]	BEARING CUP	IH Superseded by part number: 72062
35.	618024R1	[1]	BEARING CUP,65.113mm OD x 13.97mm W	IH Outer, SBX520 Superseded by part number: 86516467
36.	618023R91	[1]	BEARING ASSY,34.93mm ID x 18.2mm W	IH Outer, SBX520
37.	495-21081	[1]	WASHER,3/4"	CAS Superseded by part number: 86511191
38.	249127	[1]	HUB CAP	NH LH
. .	87298555	[1]	KIT	MKT Wheel Bearing Kit / Ship Direct Option
