凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (EUROPE) (1/95-12/00) (7-14) - LADDER, TOP AND SIDE SHIELD ASSEMBLIES Case Agriculture

作者：广数供应链运营团队

浏览数：

时间：2025-01-26 05:54:48

Parts Contact me WhatsApp

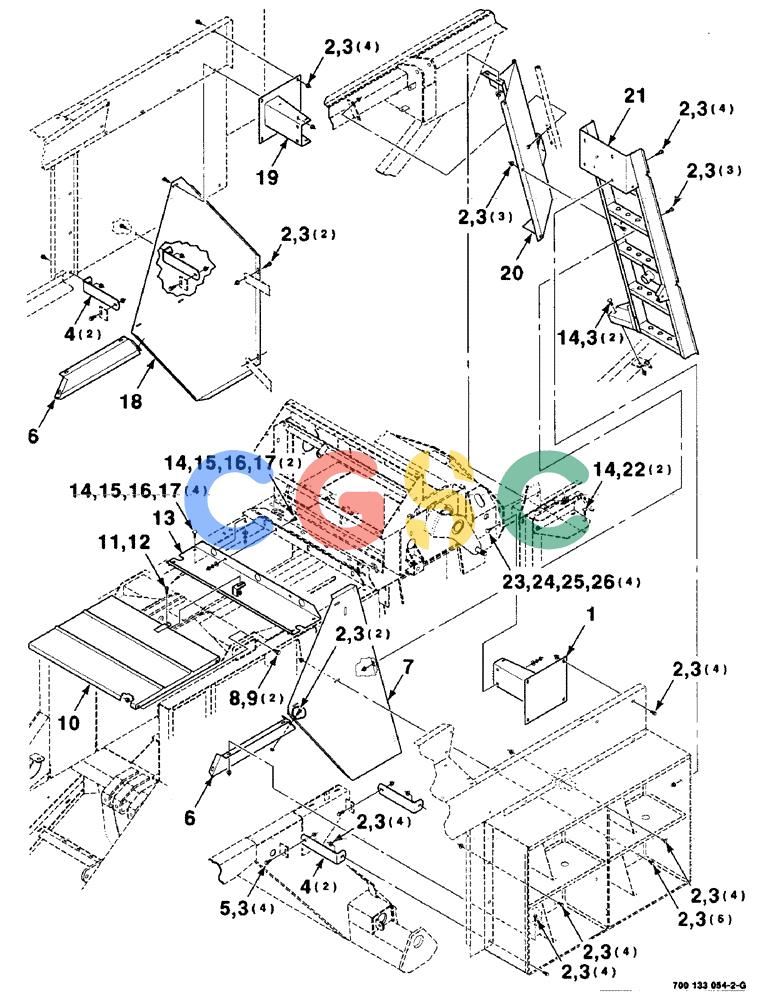

Pos.	Part No	Qty	Parts name	Comments
1.	700123915	[1]	SUPPORT	CAS WA-LEFT
2.	406-7612	[44]	3/8-16 X 3/4 HWHMS
3.	231-5146	[50]	FLANGE NUT,3/8"-16	CAS Superseded by part number: 72187068, 247780
4.	700123922	[4]	SUPPORT	CAS -MOUNTING
5.	121-226	[4]	SERRATED BOLT,Hex, 3/8" - 16 x 1"	CAS Superseded by part number: 87034804
6.	700123928	[2]	SHIELD	CAS
7.	700133137	[1]	SHIELD	HFI -LEFT
8.	413-816	[2]	BOLT,Hex, 1/2" - 13 x 1", Gr 5	CAS Superseded by part number: 87909, BN50282
9.	230-4118	[2]	LOCK NUT,1/2"-13, GA	CAS 1/2-13 HTLN GR/B
10.	700133163	[1]	LID	HFI WA
11.	121-115	[1]	SERRATED BOLT,Hex, 5/16" - 18 x 3/4"	CAS
12.	231-5145	[1]	SERRATED NUT,Flg, USR, 5/16"-18	CAS NUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458
13.	700133161	[1]	CHANNEL	HFI WA-TOP
14.	434-616	[10]	CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5	CAS 3/8-16 X 1 RHSNB Superseded by part number: 80280503
15.	496-11041	[6]	WASHER,13/32" x 13/16" x .065", HDN	CAS 3/8 HARDENED PLAIN WASHER Superseded by part number: 86632588
16.	492-11038	[6]	LOCK WASHER,3/8"	CAS Superseded by part number: 80680, 72187249
17.	425-106	[6]	NUT,3/8"-16, Cl 5	CAS Superseded by part number: 9628503
18.	700133138	[1]	SHIELD	HFI -RIGHT
19.	700123916	[1]	SUPPORT	CAS WA-RIGHT
20.	700133139	[1]	SHIELD	HFI WA-LADDER
21.	700133081	[1]	LADDER	CAS WA (Includes Reflector and Decal)
22.	232-5316	[2]	FLANGE NUT,Flg, 3/8"-16	CAS 3/8-16 HFTLN GR/G Superseded by part number: 86521609
23.	433-820	[4]	CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5	CAS 1/2-13 X 1-1/4 RHSNB Superseded by part number: 87868
24.	495-21056	[4]	WASHER,1/2"	CAS 1/2 HARDENED PLAIN WASHER Superseded by part number: 72187265, 80700
25.	80679	[4]	LOCK WASHER,1/20.507 CST ZND	NH WASHER, LOCK, 1/2"
26.	425-108	[4]	NUT,1/2" - 13, Gr 5	CAS NUT, , Hex 1/2"-13, G5 Superseded by part number: 280431
