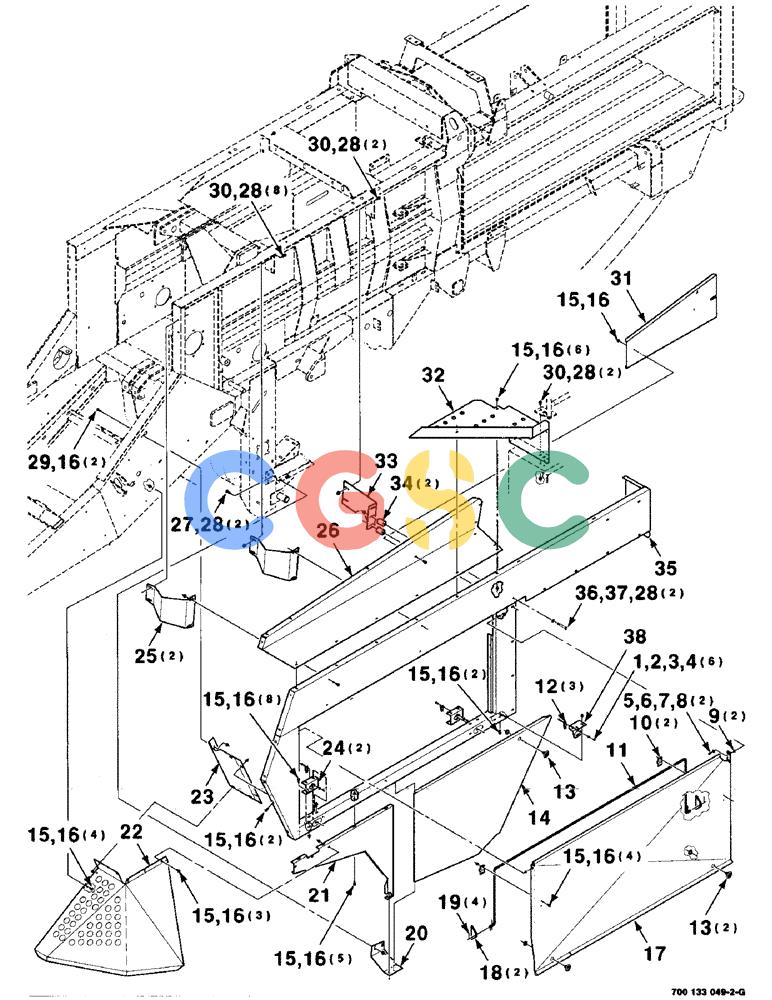

| 1. |
340-1108
|
[6] |
SCREW,Cross Pan Hd, #10-24 x 1/2"
|
CAS
#10-24 X 1/2 CRPHMS GR60M
|
| 2. |
195-513
|
[6] |
WASHER,#10
|
CAS
PLAIN WASHER #10 Superseded by part number: 9824326
|
| 3. |
492-11010
|
[6] |
LOCK WASHER,#10
|
CAS
WASHER, LOCK, #10 Superseded by part number: 80684
|
| 4. |
225-14110
|
[6] |
NUT,#10-24
|
CAS
Superseded by part number: 87304
|
| 5. |
413-512
|
[2] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
|
CAS
C Hex, 5/16"-18 x 3/4", G5, Full Thd Superseded by part number: 72187196, 87872
|
| 6. |
496-21034
|
[2] |
WASHER,11/32" x 11/16" x 0.89", HDN
|
CAS
Superseded by part number: 86637953
|
| 7. |
492-11031
|
[2] |
LOCK WASHER,5/16"
|
CAS
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| 8. |
425-105
|
[2] |
NUT,5/16"-18, G5
|
CAS
Superseded by part number: 9635082, 72187221
|
| 9. |
6514772
|
[2] |
SPACER
|
CAS
|
| 10. |
700123961
|
[2] |
MOUNTING PARTS
|
CAS
MOUNTING-SUPPORT
|
| 11. |
700123960
|
[1] |
ROD
|
CAS
|
| 12. |
700714529
|
[3] |
SOCKET/RECEPTACLE
|
CAS
RECEPTACLE Superseded by part number: 292504A1
|
| 13. |
700714528
|
[3] |
LATCH
|
CAS
-1/4 TURN (Includes Nut) Superseded by part number: 292505A1
|
| 14. |
700133110
|
[1] |
SHIELD
|
HFI
-LOWER, LEFT
|
| 15. |
121-115
|
[35] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 16. |
231-5145
|
[37] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
NUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458
|
| 17. |
700133107
|
[1] |
PANEL
|
HFI
WA-DOOR
|
| 18. |
700113992
|
[2] |
GUIDE
|
CAS
|
| 19. |
432-812
|
[4] |
COTTER PIN,3/4" OAL x 1/8" W
|
CAS
PIN, SPLIT (COTTER), 1/8" x 3/4" Superseded by part number: 80756
|
| 20. |
700123205
|
[1] |
SUPPORT
|
CAS
WA-LEFT
|
| 21. |
700133098
|
[1] |
SUPPORT
|
HFI
SHIELD-LOWER, LEFT
|
| 22. |
700133112
|
[1] |
SHIELD
|
HFI
-PICKUP, LEFT
|
| 23. |
700133114
|
[1] |
SHIELD
|
HFI
PANEL-SHIELD
|
| 24. |
700133106
|
[2] |
LOCKING TAB
|
HFI
CHANNEL-MOUNTING, LATCH
|
| 25. |
700123951
|
[2] |
ANGLE
|
CAS
|
| 26. |
700123244
|
[1] |
SHIELD
|
CAS
-LEFT, TOP Superseded by part number: 700152218
|
| 27. |
434-616
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 X 1 RHSNB Superseded by part number: 80280503
|
| 28. |
231-5146
|
[16] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 29. |
111-237
|
[2] |
CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5
|
CAS
BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5 Superseded by part number: 33-516
|
| 30. |
121-2226
|
[12] |
3/8-16 X 1 HWHMS
|
|
| 31. |
700129799
|
[1] |
SHIELD
|
CAS
|
| 32. |
700129793
|
[1] |
PANEL
|
CAS
-STEP
|
| 33. |
700123962
|
[1] |
SUPPORT
|
CAS
|
| 34. |
700123965
|
[2] |
SPACER
|
CAS
|
| 35. |
700133100
|
[1] |
SHIELD
|
HFI
WA-LEFT
|
| 36. |
413-640
|
[2] |
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
|
CAS
Superseded by part number: 87936
|
| 37. |
496-11041
|
[2] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
3/8 HARDENED PLAIN WASHER Superseded by part number: 86632588
|
| 38. |
700133105
|
[1] |
LATCH
|
HFI
MOUNTING-LATCH
|
