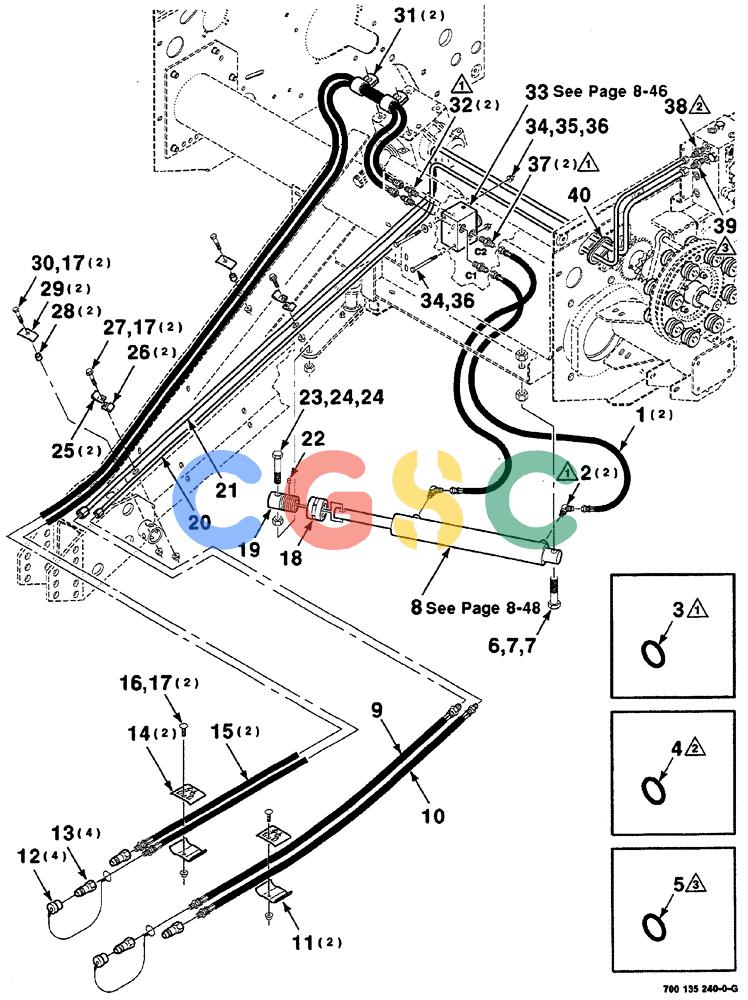

| 1. |
700714806
|
[2] |
HYDRAULIC HOSE,0.25" ID x 39.37", SAE J517, SAE J516, SAE J343
|
CAS
hydraulic
|
| 2. |
218-5105
|
[2] |
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
(Includes Ref. 3) Superseded by part number: 76344, 72186128
|
| 3. |
738468
|
[1] |
O-RING
|
IH
|
| 4. |
237-6010
|
[1] |
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
|
CAS
Superseded by part number: 72186125, 167269
|
| 5. |
237-6008
|
[1] |
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
|
CAS
Superseded by part number: 128825
|
| 6. |
413-1252
|
[1] |
BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5
|
CAS
hex, 3/4-10 x 3-1/4 Superseded by part number: 88747
|
| 7. |
425-1012
|
[2] |
NUT,3/4"-10, G5
|
CAS
Superseded by part number: 280954
|
| 8. |
700718182
|
[1] |
CYLINDER
|
CAS
ASSEMBLY hydraulic
|
| 9. |
700718199
|
[1] |
HYDRAULIC HOSE,0.63" ID x 58.07", SAE 100R2, SAE J517, SAE J343, SAE J516
|
CAS
hydraulic
|
| 10. |
7072135
|
[1] |
HYDRAULIC HOSE,0.50" ID x 58.00", SAE 100R2
|
IH
hydraulic
|
| 11. |
700129086
|
[2] |
CLAMP
|
HFI
|
| 12. |
700718082
|
[4] |
CAP
|
CAS
dust
|
| 13. |
1-7141
|
[4] |
FITTING
|
CAS
COUPLER quick disconnect Superseded by part number: 1272770C2
|
| 14. |
700129085
|
[2] |
CLAMP
|
CAS
|
| 15. |
700716257
|
[2] |
HYDRAULIC HOSE,0.38" ID x 129.92", SAE J516, SAE J343
|
CAS
hydraulic
|
| 16. |
433-620
|
[2] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
|
CAS
Superseded by part number: 86508773
|
| 17. |
232-5316
|
[6] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
hex flange top lock, 3/8-16 GR/G Superseded by part number: 86521609
|
| 18. |
700135810
|
[1] |
NUT
|
HFI
cylinder stop Superseded by part number: 700162184
|
| 19. |
700135809
|
[1] |
STOP
|
HFI
cylinder
|
| 20. |
700716243
|
[1] |
LINE
|
CAS
hydraulic, left outer
|
| 21. |
700716242
|
[1] |
LINE
|
CAS
hydraulic, left inner
|
| 22. |
700716646
|
[1] |
STOP
|
CAS
|
| 23. |
413-1056
|
[1] |
BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5
|
CAS
Superseded by part number: 280119
|
| 24. |
425-1010
|
[2] |
NUT,5/8"-11, G5
|
CAS
Superseded by part number: 280374
|
| 25. |
515-23159
|
[2] |
CLAMP,5/8", Insul, 3/8" Bolt
|
CAS
Superseded by part number: 86594406
|
| 26. |
515-25127
|
[2] |
CLAMP,1/2", Insul, 1/2" Bolt
|
CAS
Superseded by part number: 86632595
|
| 27. |
700711134
|
[2] |
SCREW
|
CAS
hex flange 3/8-16 x 1-3/4 GR. 8
|
| 28. |
158758
|
[2] |
SPACER
|
HFI
Superseded by part number: 568395R1
|
| 29. |
700126495
|
[2] |
CLAMP
|
HFI
|
| 30. |
413-628
|
[2] |
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
|
CAS
Superseded by part number: 72187210, 9706689
|
| 31. |
S95446
|
[2] |
CLAMP,1 5/16", Insul, 1/2" Bolt
|
CAS
|
| 32. |
218-5351
|
[2] |
HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring
|
CAS
straight (Includes: Ref. 3) Superseded by part number: 86509028
|
| 33. |
700718237
|
[1] |
MANIFOLD
|
CAS
VALVE ASSEMBLY, flow control
|
| 34. |
413-556
|
[2] |
BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5
|
CAS
hex, 5/16-18 x 3-1/2 Superseded by part number: 86507008
|
| 35. |
496-21034
|
[1] |
WASHER,11/32" x 11/16" x 0.89", HDN
|
CAS
Superseded by part number: 86637953
|
| 36. |
232-5315
|
[2] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
hex flange top lock, 5/16-18 GR/G
|
| 37. |
218-5057
|
[2] |
HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB
|
CAS
(Incl. Ref. 3) Superseded by part number: 76350
|
| 38. |
846717
|
[1] |
FITTING
|
CAS
CONNECTOR straight (Includes: Ref. 4) Superseded by part number: 51200289, 51200289, NLS
|
| 39. |
218-5059
|
[1] |
HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring
|
CAS
Straight (Incl. Ref 5) Superseded by part number: 128818
|
| 40. |
8027427
|
[1] |
GROMMET
|
CAS
|
