凯斯零件查询(RS561) - CASE IH ROUND BALER (1/99-12/00) (09-026) - BALE KICKER KIT (INCLUDES FIGURES 9-28 THRU 9-32) (TO BE ORDERED THRU WHOLEGOODS ONLY) Case Agriculture

作者：广数供应链运营团队

浏览数：

时间：2025-01-26 03:09:29

Parts Contact me WhatsApp

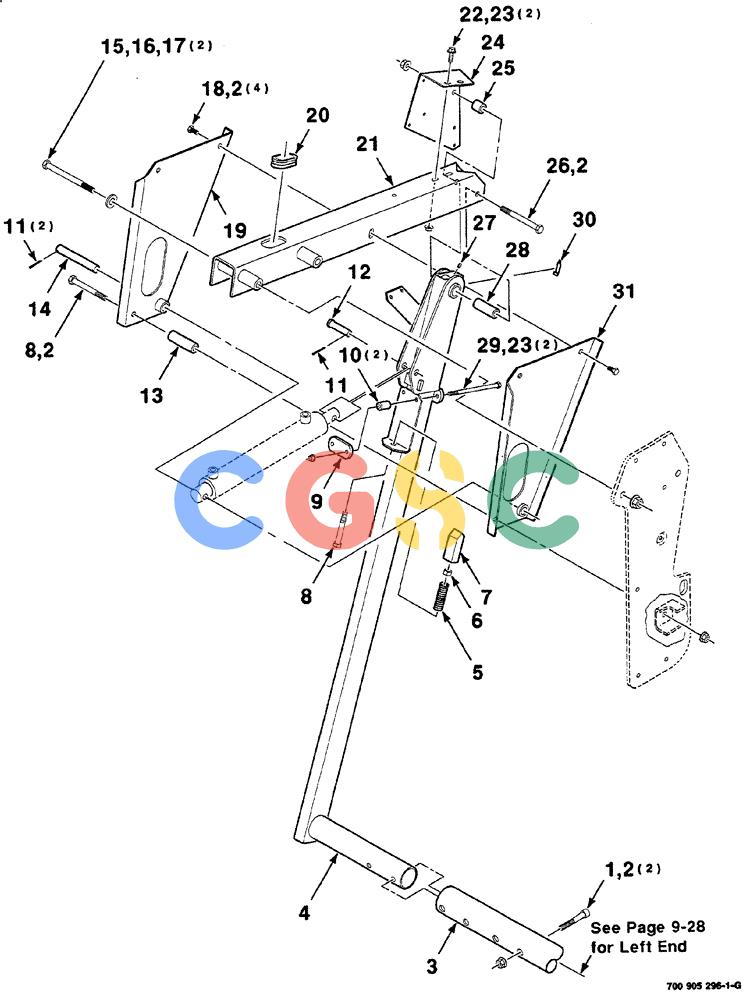

Pos.	Part No	Qty	Parts name	Comments
. .	HK50951	[1]	KIT bale kicker, complete
1.	61-35052	[2]	HEX SOC SCREW,1/2"-13 x 3 1/4"	CAS hex socket head cap, 1/2-13 x 3-1/4 SPL
2.	231-5348	[8]	FLANGE NUT,Flg, 1/2"-13	CAS hex flange top lock, 1/2-13 GR/G Superseded by part number: 86521610
3.	700150216	[1]	TUBE,73.02 mm OD, 1530 mm Length	HFI kicker
4.	700150835	[1]	STRUT	HFI WA right
5.	700716851	[1]	SPRING	CAS compression
6.	425-108	[1]	NUT,1/2" - 13, Gr 5	CAS Superseded by part number: 280431
7.	700135979	[1]	LATCH	HFI
8.	413-872	[2]	BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5	CAS SCREW hex cap, 1/2-13 x 4-1/2 Superseded by part number: 87996
9.	700135976	[1]	PLATE	HFI
10.	700135978	[2]	SPACER	HFI
11.	432-1020	[3]	COTTER PIN,5/32" x 1 1/4"	CAS Superseded by part number: 86523851
12.	700708068	[1]	CLEVIS PIN,15.77mm OD x 68.66mm L	IH 5/8" x 2-1/2 "
13.	HFI140186	[1]	SPACER	HFI
14.	700132165	[1]	PIN	HFI
15.	413-10120	[2]	BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 5	CAS hex, 5/8-11 x 7-1/2 Superseded by part number: 280361
16.	396-21066	[2]	WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk	CAS 5/8" bolt size Superseded by part number: 87613283
17.	232-53110	[2]	FLANGE NUT,Flg, 5/8"-11	CAS Superseded by part number: 84180923
18.	413-816	[4]	BOLT,Hex, 1/2" - 13 x 1", Gr 5	CAS Superseded by part number: 87909, BN50282
19.	700150831	[1]	MOUNTING PARTS	HFI channel WA right
20.	8027427	[1]	GROMMET	CAS
21.	700150217	[1]	CHANNEL	HFI WA right
22.	121-226	[2]	SERRATED BOLT,Hex, 3/8" - 16 x 1"	CAS Superseded by part number: 87034804
23.	232-5316	[4]	FLANGE NUT,Flg, 3/8"-16	CAS hex flange top lock, 3/8-16 GR/G Superseded by part number: 86521609
24.	700136057	[1]	SUPPORT	HFI switch
25.	6181002	[1]	SPACER	CAS
26.	413-880	[1]	BOLT,Hex, 1/2" - 13 x 5", Gr 5	CAS SCREW hex cap, 1/2-13 x 5 Superseded by part number: 87997
27.	219-8	[1]	LUBE NIPPLE,1/4" - 28 NPTF	CAS Superseded by part number: 87414
28.	700132166	[1]	SPACER	HFI
29.	413-696	[2]	BOLT,Hex, 3/8" - 16 x 6", Gr 5	CAS hex, 3/8-16 x 6 Superseded by part number: 280258
30.	7889306	[1]	DECAL	CAS lube
31.	700150829	[1]	MOUNTING PARTS	HFI channel WA left
