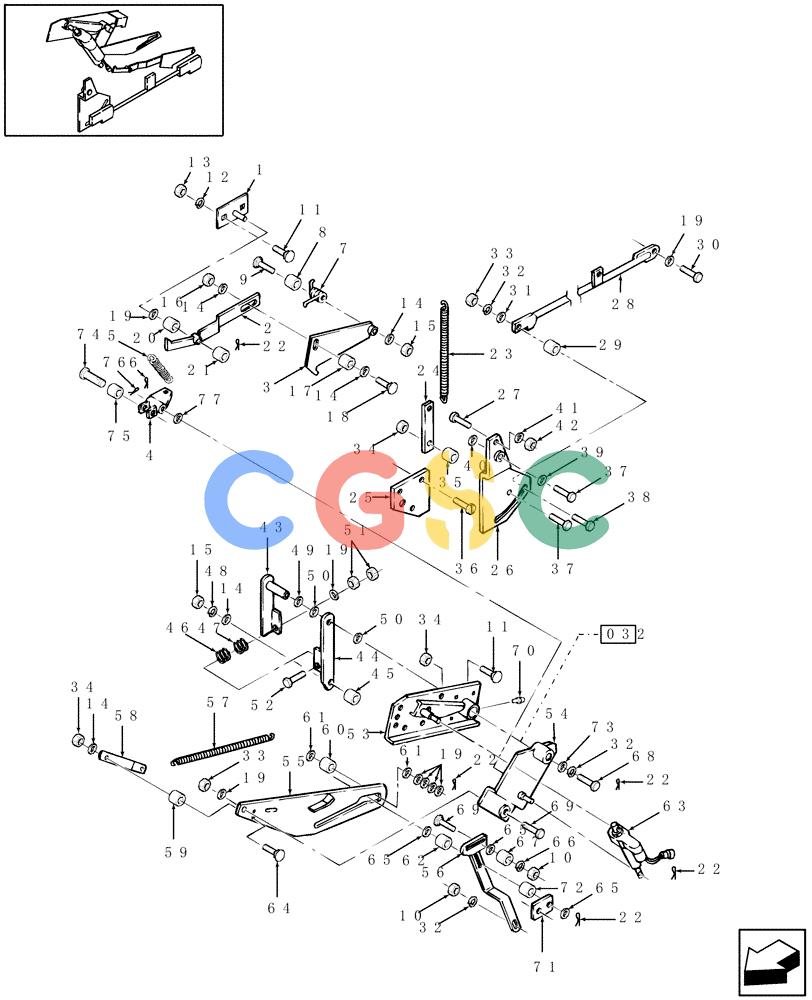

Pos.	Part No	Qty	Parts name	Comments
1.	86637168	[1]	SUPPORT	NH
2.	86637306	[1]	ROD	NH
3.	86636994	[1]	LATCH	NH
4.	86549046	[1]	BRACKET	NH
5.	103803	[1]	SPRING	NH
6.	432-812	[2]	COTTER PIN,3/4" OAL x 1/8" W	CAS Superseded by part number: 80756
7.	86636723	[1]	SPRING	NH LH
8.	86518257	[1]	SPACER	NH
9.	280828	[1]	CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 4", Gr 5	NH
10.	829-1412	[4]	NUT,M12, Cl 10.9	CAS Superseded by part number: 337475
11.	811-10020	[5]	CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8	CAS Superseded by part number: 86512422
12.	140045	[5]	BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk	NH
13.	825-1410	[1]	NUT,M10, Cl 8	CAS Superseded by part number: 100016
14.	495-21044	[1]	WASHER,3/8"	CAS Superseded by part number: 87779090, 80702
15.	232-4146	[2]	NUT,3/8"-16, GC	CAS Superseded by part number: 88902
16.	832-46410	[4]	NUT,M10 x 1.5, Cl 8	CAS Superseded by part number: 100037
17.	698748	[1]	BUSHING,10.3mm ID x 15.88mm OD x 9.53mm L	NH Superseded by part number: 626698
18.	811-10030	[1]	CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8	CAS Superseded by part number: 86512446
19.	495-21056	[1]	WASHER,1/2"	CAS Superseded by part number: 72187265, 80700
20.	626698	[1]	SPACER	NH
21.	35185	[1]	BUSHING	NH
22.	432-820	[5]	COTTER PIN,1/8" x 1 1/4"	CAS Superseded by part number: 87395, 87778232
23.	80067629	[1]	SPRING	NH
24.	67385	[1]	SPACER	NH
25.	86636878	[1]	CAM	NH
26.	86636877	[1]	ARM	NH
27.	133186	[1]	CAM FOLLOWER	NH
28.	86636987	[1]	ROD	NH
29.	9846901	[1]	SPACER	NH
30.	814-12100	[1]	BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8	IH Superseded by part number: 374887
31.	56832	[1]	WASHER,14.29mm ID x 50.8mm OD x 3.43mm Thk	NH 2" OD
32.	140046	[4]	BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk	NH
33.	825-51412	[2]	FLANGE NUT,M12, Flg Ser	CAS Superseded by part number: 43436
34.	825-51410	[6]	FLANGE NUT,M10, Flg Ser	CAS Superseded by part number: 43435
35.	768703	[1]	BUSHING,10.31mm ID x 15.88mm OD x 11.13mm L	NH
36.	905-10035	[3]	BOLT,Hex Flg, M10 x 35mm	CAS Superseded by part number: 274254
37.	614-10030	[3]	BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd	IH Superseded by part number: 43140
38.	614-12040	[1]	BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd	IH Superseded by part number: 86629541
39.	86636726	[1]	WASHER	NH 1-11/32" OD
40.	672	[1]	WASHER	NH 1.63" OD
41.	781316	[1]	WASHER,16.66mm ID x 28.45mm OD x 3.43mm Thk	NH 1-1/8" OD
42.	425-1110	[1]	NUT,5/8"-18, G5	CAS Superseded by part number: 408
43.	86637220	[1]	ARM	NH Top
44.	86628665	[1]	ARM	NH Top
45.	54462	[1]	BUSHING,19.15mm ID x 22.26mm OD x 15.88mm L	NH
46.	681902	[1]	SPRING	NH
47.	38902	[1]	SPRING	NH
48.	492-11038	[1]	LOCK WASHER,3/8"	CAS Superseded by part number: 80680, 72187249
49.	267571	[1]	WASHER	NH 2" OD Superseded by part number: 84075368
50.	58630	[1]	WASHER,.0299" Thk	NH
51.	425-108	[2]	NUT,1/2" - 13, Gr 5	CAS Superseded by part number: 280431
52.	698148	[1]	SCREW	NH HH, Special, G5, 1/2"-13 x 7-1/2", Threaded 3-1/4"
53.	86628087	[1]	ARM	NH Top
54.	86628086	[1]	ARM	NH
55.	86624649	[1]	CAM	NH
56.	86637187	[1]	BRACKET	NH
57.	86559592	[1]	SPRING,Extension, 0.99" OD x 6-1/4" L	NH Extension
58.	86628667	[1]	BAR	NH
59.	646056	[2]	SPACER,13/32” ID x .750” OD x .338” Tk.	NH
60.	12595	[2]	CAM FOLLOWER	NH Follower
61.	86632168	[3]	WASHER	NH
62.	36334	[1]	GUIDE	NH Superseded by part number: 86553579
63.	9843435	[1]	ACTUATOR	NH Refer to Fig. 018
. .	9843435R	[1]	REMAN-ELECTRIC ACTUATOR	NH RBX461 (12/01-12/02)
. .	9843435C	[1]	CORE-ELECTRIC ACTUATOR	NH Return Number
65.	495-11053	[3]	WASHER,1/2", SAE	CAS Superseded by part number: 87364, 72187259
66.	80679	[1]	LOCK WASHER,1/20.507 CST ZND	NH
67.	49309	[1]	BALL BEARING,12.69mm ID x 34.92mm OD x 11.11mm W	NH Idler
68.	814-12050	[1]	BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8	CAS Superseded by part number: 9706702
69.	811-12040	[2]	CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8	CAS Superseded by part number: 328754
70.	219-90	[1]	LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF	CAS Superseded by part number: 87569
71.	86628313	[1]	SUPPORT	NH
72.	131522	[1]	SPACER	NH Split
73.	29684	[1]	WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk	NH 17/32" ID x 2" OD x 3/16" Thk
74.	271270	[1]	PIN	NH 3/8" x 1-3/8" Superseded by part number: 87053026
75.	788783	[1]	SPACER	NH
76.	432-612	[1]	COTTER PIN,3/32" x 3/4"	CAS Superseded by part number: 280250
77.	378245	[1]	WASHER,13mm ID x 28.5mm OD x 2.7mm Thk	NH
