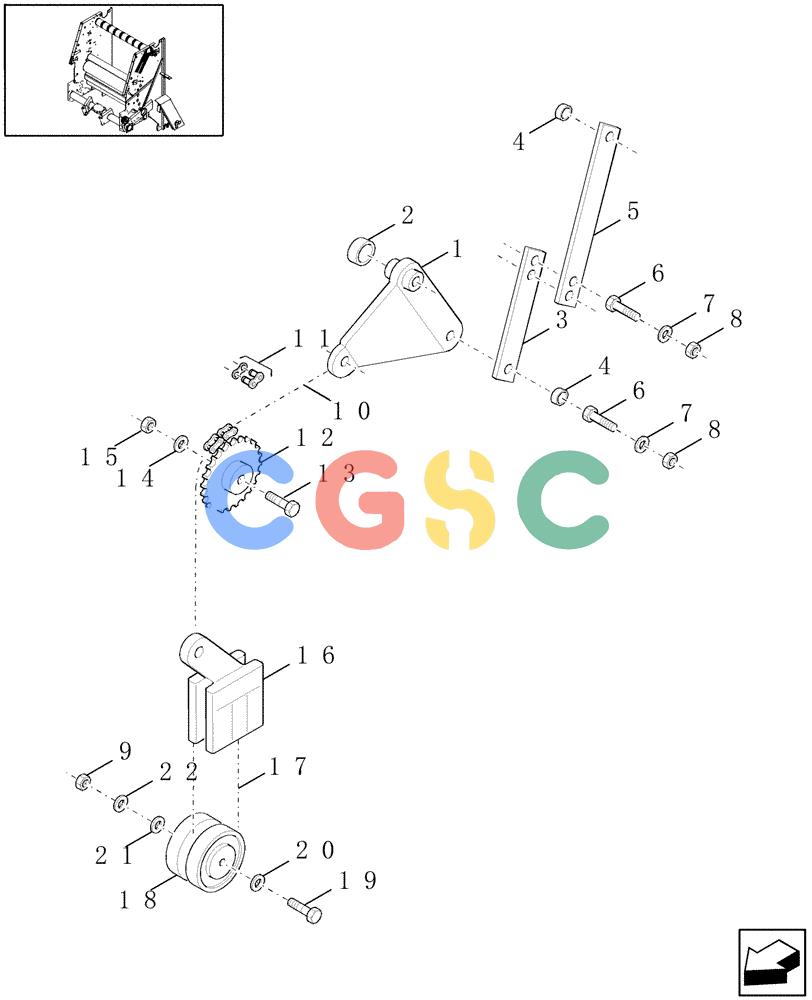

| 1. |
86637016
|
[1] |
LINK CONROD
|
NH
|
| 2. |
9822495
|
[2] |
BUSHING,25.5mm ID x 31.82mm OD x 19.5mm L
|
NH
|
| 3. |
86636886
|
[1] |
BAR
|
NH
|
| 4. |
768703
|
[4] |
BUSHING,10.31mm ID x 15.88mm OD x 11.13mm L
|
NH
|
| 5. |
86636884
|
[1] |
BAR
|
NH
|
| 6. |
811-10030
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 86512446
|
| 7. |
495-21044
|
[2] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 8. |
825-1410
|
[2] |
NUT,M10, Cl 8
|
CAS
Superseded by part number: 100016
|
| 9. |
425-108
|
[1] |
NUT,1/2" - 13, Gr 5
|
CAS
Superseded by part number: 280431
|
| 10. |
9617629
|
[1] |
CHAIN,41 Links x 12.7mm Pitch = 520.7mm L
|
NH
ISO 1275, Riveted-Type, 41 Pitches, Includes: (2) Connector, Includes: Ref. 11, 40 ASA Superseded by part number: 569088R91X, 242-138
|
| 11. |
9828102
|
[1] |
CONNECTING LINK
|
NH
2040 Superseded by part number: 86595261
|
| 12. |
103243
|
[1] |
DRIVEN SPROCKET
|
NH
18 T
|
| 13. |
280667
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 2 1/4", Gr 5
|
NH
|
| 14. |
492-11062
|
[1] |
BEARING WASHER,5/8"
|
CAS
Superseded by part number: 86729275
|
| 15. |
425-1010
|
[1] |
NUT,5/8"-11, G5
|
CAS
Superseded by part number: 280374
|
| 16. |
86636998
|
[1] |
BLOCK
|
NH
|
| 17. |
9803024
|
[1] |
CHAIN
|
NH
Includes: Ref. 11 Superseded by part number: 89803024
|
| 18. |
86636724
|
[1] |
IDLER,101.6mm Idler Dia x 115.49mm OD x 37.31mm W
|
NH
|
| 19. |
280436
|
[1] |
CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 2 1/4", Gr 5
|
NH
|
| 20. |
26312
|
[1] |
WASHER
|
NH
Superseded by part number: 695335
|
| 21. |
495-21056
|
[1] |
WASHER,1/2"
|
CAS
Superseded by part number: 72187265, 80700
|
| 22. |
492-11056
|
[1] |
LOCK WASHER,9/16"
|
CAS
Superseded by part number: 80280248
|
