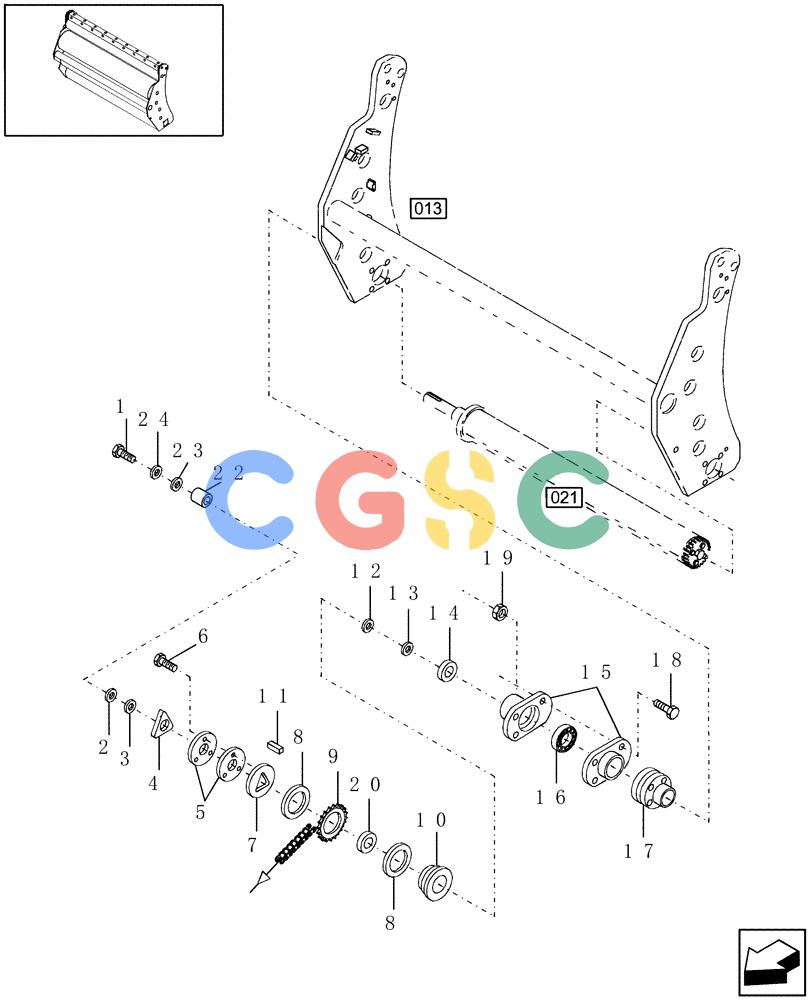

| 1. |
814-12060
|
[1] |
BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8
|
CAS
Superseded by part number: 9706693
|
| 2. |
492-11044
|
[1] |
LOCK WASHER,7/16"
|
CAS
Superseded by part number: 81547
|
| 3. |
694478
|
[1] |
WASHER,13.5mm ID x 57.15mm OD x 4.8mm Thk
|
NH
Hardened, 1/2"
|
| 4. |
86636168
|
[1] |
BRACKET
|
NH
|
| 5. |
121092
|
[2] |
BELLEVILLE WASHER,35mm ID x 117.5mm OD x 3.5mm Thk
|
NH
|
| 6. |
409-7612
|
[3] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
Superseded by part number: 72187187, 255918
|
| 7. |
86627129
|
[1] |
CLUTCH PLATE
|
NH
|
| 8. |
127434
|
[2] |
DISC,77.7mm ID x 146mm OD x 3.56mm Thk
|
NH
Friction
|
| 9. |
86536055
|
[1] |
DRIVEN SPROCKET
|
NH
31T, Includes: Ref. 25
|
| 10. |
86636779
|
[1] |
HUB
|
NH
Clutch
|
| 11. |
126-124
|
[1] |
WOODRUFF KEY,#15, 1/4" x 1", HT
|
CAS
Superseded by part number: 47471
|
| 12. |
86627126
|
[1] |
WASHER,29.18mm ID x 51.56mm OD x 2.03mm Thk
|
NH
2" OD
|
| 13. |
633743
|
[1] |
SPACER
|
NH
|
| 14. |
455112R11
|
[1] |
COLLAR
|
IH
Includes: Set Screw Superseded by part number: 47577185
|
| 15. |
86620027
|
[2] |
FLANGED BEARING,80.02mm ID x 147.6mm OD x 4mm Thk
|
NH
|
| 16. |
664073R92
|
[1] |
BALL BEARING,38.1mm ID x 80mm OD x 21mm W
|
CAS
|
| 17. |
86636673
|
[1] |
HUB
|
NH
RH
|
| 18. |
614-12030
|
[4] |
BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 9706687
|
| 19. |
492-11056
|
[4] |
LOCK WASHER,9/16"
|
CAS
Superseded by part number: 80280248
|
| 22. |
86636900
|
[1] |
SPACER
|
NH
Twine Wrap Only
|
| 23. |
673
|
[1] |
WASHER,29mm ID x 41mm OD x 1.52mm Thk
|
NH
Twine Wrap Only
|
| 25. |
49686
|
[1] |
BUSHING,76mm ID x 82.68mm OD x 7.62mm L
|
NH
|
