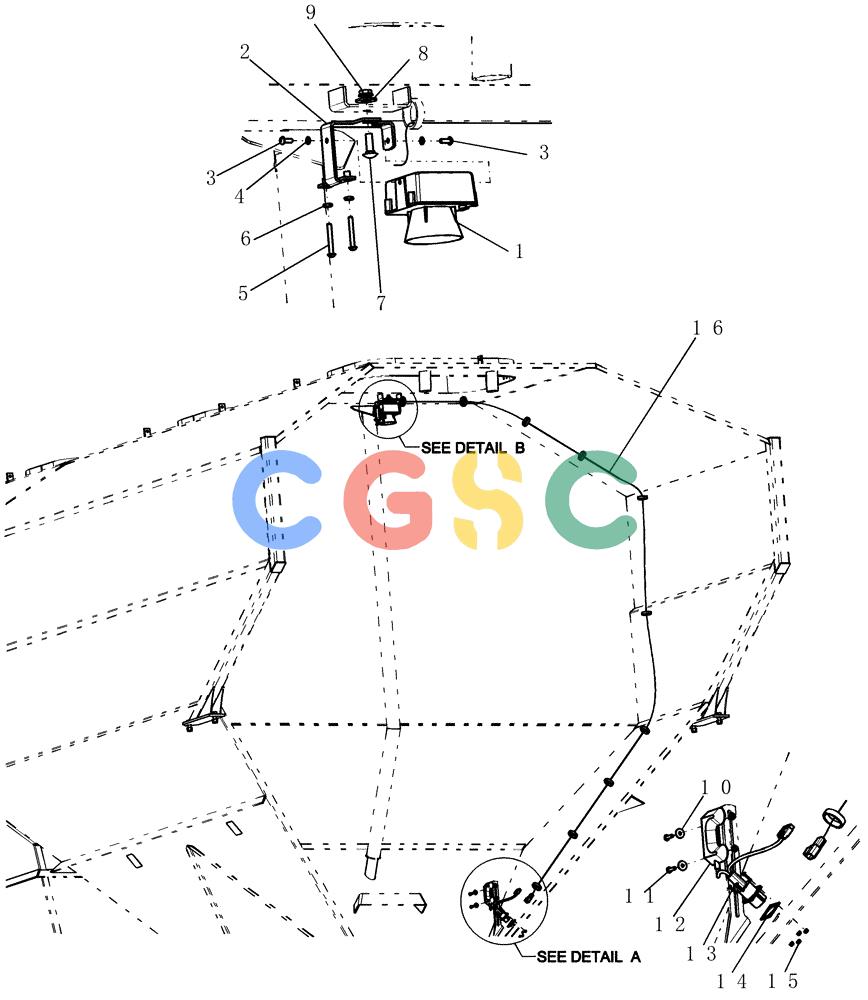

| 1. | 425096A1 | [1] |
SENSOR |
FLXbin level, sonar Superseded by part number: 84529354 |
| 1. | 84529354R | [1] |
REMAN-SENSOR |
SAS3580 PRECISION AIR CART, bin level, sonar (3/10-), Reman for New PN 425096A1 |
| 1. | 84529354C | [1] |
CORE-SENSOR |
SASReturn Number |
| 2. | GL-349 | [1] |
BRACKET |
FLXmount, bin level sensor - ultrasonic |
| 3. | 9528 | [2] |
HEX SOC SCREW,Sl Rnd Hd, #10 - 32 x 0.50", SST |
FLXmachine #10-32 x 1/2" rh skt-slt ss |
| 4. | 9587 | [2] |
LOCK WASHER |
FLX#10 ss |
| 5. | 9588 | [2] |
SCREW,Sl Sq, #10 - 32 x 1.50" |
FLXmch #10-32 x 1 1/2" rh sq-slt ss |
| 6. | 9589 | [2] |
NUT |
FLX#10-32 ss |
| 7. | 88992 | [1] |
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5 |
GI |
| 8. | 8633 | [1] |
WASHER |
FLX7/16" id x 1" od x 5/64" thick, ss |
| 9. | 9586 | [1] |
FLANGE NUT |
FLXflange 5/16" serrated |
| 10. | 9977 | [2] |
WASHER |
FLX1/64" id 5/8" 1/16" ss |
| 11. | 9447 | [2] |
SCREW,Pan Hd, #10 - 24 x 0.75", Sl Sq Drive |
FLXmch #10-24 x 3/4" ph sq-slt ss |
| 12. | 87508154 | [1] |
SENSOR |
SASOptical Bin Level |
| 13. | 9445 | [4] |
SCREW,Pan Hd, #4 - 40 x 5/8", Stainless |
FLXmch #4-40 x 5/8" ph pi ss |
| 14. | 51200017 | [1] |
GASKET,25.4mm ID x 1.6mm Thk |
FLXrubber, 25 mm id X 2.5 mm thick |
| 15. | 412912A1 | [4] |
LOCK NUT |
FLX#4-40, stainless steel |
| 16. | 419966A1 | [1] |
HARNESS |
FLXbin level sensor 2.01 m |
