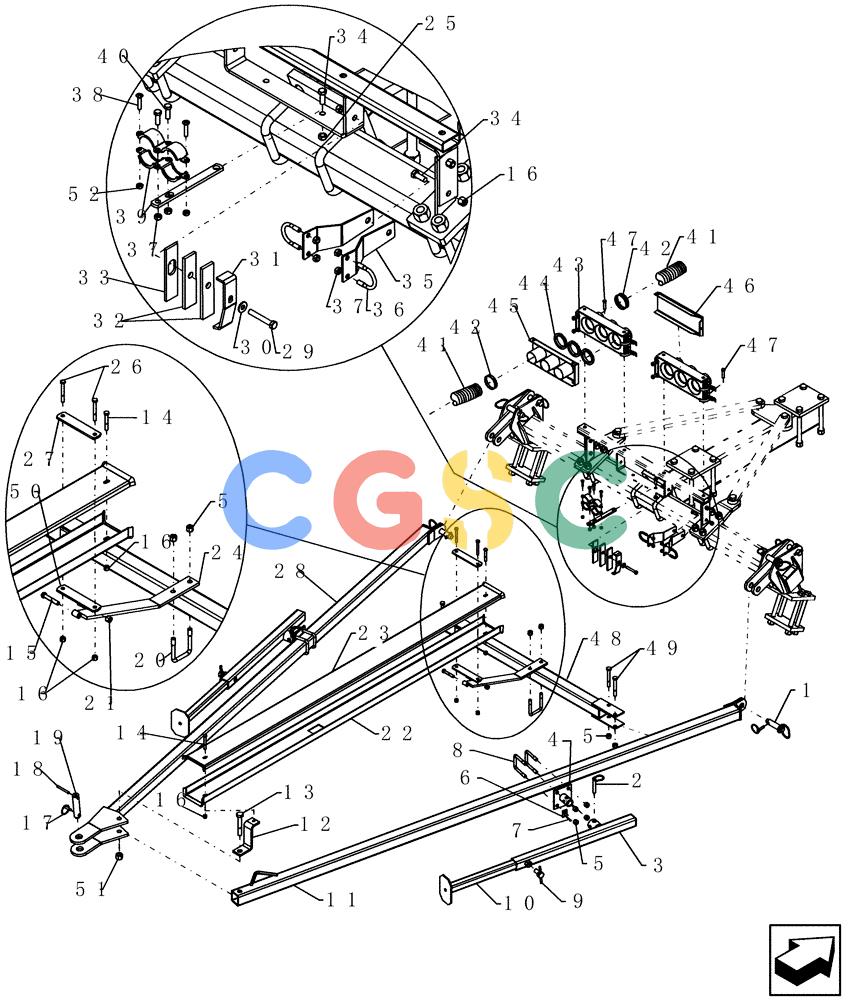

| 1. |
412768A1
|
[2] |
HITCH PIN
|
FLX
1" x 2 3/4" usable
|
| 2. |
412752A1
|
[2] |
PIN
|
FLX
and chain assembly jack mount Superseded by part number: 2047
|
| 3. |
GE-359
|
[2] |
STAND
|
FLX
field hitch - upper
|
| 4. |
GH-528
|
[2] |
MOUNTING PLATE
|
FLX
hitch support
|
| 5. |
87530607
|
[10] |
NUT
|
CAS
1/2"-13, GB
|
| 6. |
GH-530
|
[2] |
BRACKET
|
FLX
mount, fan shield chain
|
| 7. |
80755
|
[2] |
COTTER PIN,1/8" OD x 1" L
|
NH
|
| 8. |
1344524C1
|
[4] |
U-BOLT
|
CAS
us 1/2" x 2 9/18" w x 3 1/2" d 1" thread
|
| 9. |
GE-193A
|
[2] |
HANDLE
|
FLX
height adjustment
|
| 10. |
GE-358
|
[2] |
STAND
|
FLX
field hitch - lower
|
| 11. |
351930A1
|
[1] |
HITCH
|
FLX
rail RH
|
| 12. |
GH-529
|
[1] |
BRACKET
|
FLX
mount, hose tray
|
| 13. |
88421
|
[1] |
BOLT,Hex, 3/4" - 10 x 5", Gr 5
|
WIN
|
| 14. |
87936
|
[2] |
BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5
|
NH
|
| 15. |
88604
|
[1] |
BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5
|
WIN
|
| 16. |
231-1446
|
[5] |
NUT,3/8" - 16, Gr 5
|
CAS
Superseded by part number: 86625064
|
| 17. |
6425
|
[1] |
LINCH PIN
|
FLX
7/16" x 1 3/8" Superseded by part number: 87299410
|
| 18. |
86544809
|
[1] |
LOCK PIN,9.53mm OD x 76.2mm L, Slotted
|
NH
|
| 19. |
GE-293A
|
[1] |
HITCH PIN
|
FLX
draw assembly
|
| 21. |
86637736
|
[1] |
NUT,7/16"-14, GB
|
FAR
|
| 22. |
GH-144
|
[1] |
TRAY
|
FLX
bottom hose field hitch
|
| 23. |
GH-189
|
[1] |
TRAY
|
FLX
hose, top
|
| 24. |
GH-245
|
[1] |
MOUNTING PARTS
|
FLX
crossmember
|
| 25. |
88902
|
[1] |
NUT,3/8"-16
|
NH
|
| 26. |
280161
|
[2] |
BOLT,Hex, 3/8" - 16 x 3", Gr 5
|
NH
|
| 27. |
GH-526
|
[2] |
CLAMP
|
FLX
plate, hose shield
|
| 28. |
351932A1
|
[1] |
HITCH
|
FLX
rail formed LH
|
| 29. |
113-250
|
[1] |
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd
|
CAS
|
| 30. |
1013043
|
[1] |
WASHER
|
CAS
3/8" SAE
|
| 31. |
1026712
|
[1] |
CLAMP
|
CON
5"
|
| 32. |
1026714
|
[2] |
ISOLATOR
|
CON
neoprene 1/4" tk pln
|
| 33. |
1026713
|
[1] |
CLAMP
|
CON
backing
|
| 34. |
88206
|
[2] |
BOLT,Hex, 3/8" - 16 x 1", Gr 5
|
NH
|
| 35. |
GH-601
|
[2] |
COUPLING
|
FLX
hydraulic mount third line
|
| 36. |
7938
|
[2] |
U-BOLT
|
FLX
ur 5/16"-18 x 1 3/8" w x 1 5/8" d
|
| 37. |
281010
|
[6] |
LOCK NUT,7/8"-14, GC
|
BAS
|
| 38. |
3236
|
[2] |
SELF-TAP SCREW
|
FLX
1/4"-20 x 1 1/4" oh pi plt
|
| 39. |
GE-202
|
[1] |
CLAMP
|
FLX
for two 3/4" couplers
|
| 40. |
9635884
|
[2] |
BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5
|
NH
|
| 41. |
86992286
|
[1] |
HOSE,2.50" ID x 100.00'
|
SAS
Spiral PVC Black Order Multiples of 100 Feet
|
| 42. |
214-1444
|
[1] |
HOSE CLAMP,58.6mm - 82.5mm
|
CAS
Superseded by part number: 86050197
|
| 43. |
GD-672A
|
[1] |
HOLDER
|
FLX
quick connect 2 1/2" female
|
| 44. |
6177
|
[1] |
OIL SEAL
|
FLX
quick connect 2 1/2" id
|
| 45. |
GD-673
|
[1] |
FITTING
|
FLX
hose connector 2 1/2"
|
| 46. |
GD-254
|
[1] |
COVER
|
FLX
plate hose connect
|
| 47. |
9706689
|
[1] |
BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5
|
PA
|
| 48. |
351666A1
|
[1] |
BRACKET
|
FLX
SDX hitch
|
| 49. |
86505993
|
[4] |
BOLT,Hex, 1/2" - 13 x 4", Gr 5
|
NH
|
| 50. |
GH-527
|
[1] |
HOSE CLAMP
|
FLX
shield
|
| 51. |
86754
|
[1] |
NUT,3/4"-10, GB
|
WIN
|
| 52. |
280129
|
[2] |
NUT,1/4"-20
|
NH
|
