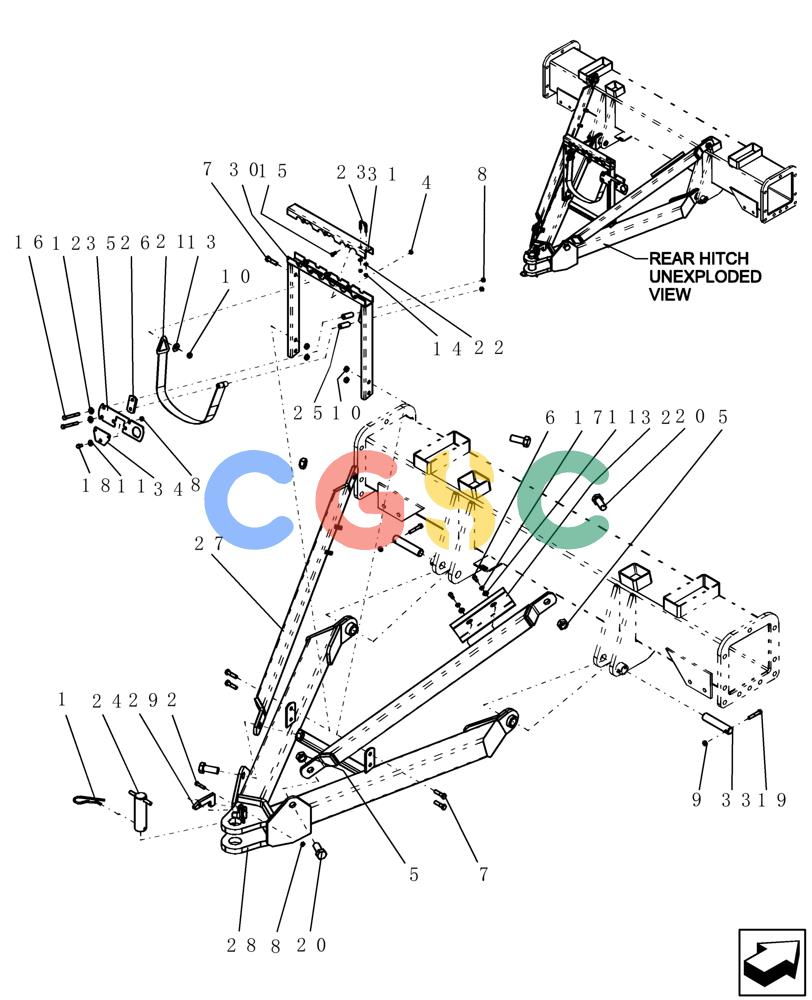

凯斯零件查询(2230) - PRECISION AIR CART (1/02-12/08) (39.100.12) - CART REAR HITCH Case Agriculture

作者：广数供应链运营团队

浏览数：

时间：2025-01-24 22:12:20

Pos.	Part No	Qty	Parts name	Comments
1.	419985A1	[1]	HAIR PIN COTTER	FLX 1/4" x 5"
2.	9706689	[1]	BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5	PA
4.	280736	[3]	NUT,5/16"-18, GC	NH
5.	280286	[4]	NUT,1"-8, GB	NH
6.	88206	[2]	BOLT,Hex, 3/8" - 16 x 1", Gr 5	NH
7.	9706716	[5]	BOLT,Hex, 1/2" - 13 x 2", Gr 5	NH
8.	88902	[3]	NUT,3/8"-16	NH
9.	280980	[2]	NUT,7/16"-14, GC	NH
10.	86992215	[5]	LOCK NUT,1/2"-13, GC	GFD
11.	80664	[2]	WASHER,0.38" ID x 0.88" OD x 0.08" Thk	NH
12.	80702	[2]	WASHER,0.44" ID x 1" OD x 0.08" Thk	NH
13.	80700	[1]	WASHER,0.56" ID x 1.38" OD x 0.11" Thk	NH
14.	280129	[2]	NUT,1/4"-20	NH
15.	87872	[3]	BOLT,Hex, 5/16" - 18 x 3/4", Gr 5	NH
16.	88959	[2]	BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5	NH
17.	80680	[2]	LOCK WASHER,3/8 0.381 CST ZND	NH
18.	86500692	[1]	BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd	IMO
19.	88604	[2]	BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5	WIN
20.	16505	[4]	BOLT,Hex, 1" - 8 x 2 1/2", Gr 5, Full Thd	WIN
21.	412762A1	[1]	STRAP	FLX 2" x 44 1/2"
22.	87361	[2]	WASHER,0.28" ID x 0.62" OD x 0.07" Thk	NH
23.	8597	[1]	U-BOLT	FLX us 1/4"-20 1 1/16" w 1 1/2" d GR2
24.	GD-919	[1]	PIN	FLX draw, rear hitch
25.	GH-119	[2]	SPACER	FLX hose strap
26.	GH-136	[1]	PLATE	FLX bolt
27.	GI-293	[2]	LIFT ARM	FLX rear hitch
28.	GI-294	[1]	HITCH	FLX cart rear
29.	GI-299	[1]	RETAINER	FLX safety, hitch pin
30.	GI-358	[1]	BRACKET	FLX mount, hyd hose
31.	GI-359	[1]	HOLDER	FLX hyd coupler - top
32.	GI-413	[1]	TRAY	FLX cable, short
33.	GL-610	[1]	HITCH PIN	FLX rear
34.	GL-783	[1]	BRACKET	FLX mount, terminator
35.	GL-803	[1]	HITCH BRACKET	FLX mount, rear
100.	51200107	[1]	HYDRAULIC HOSE,0.50" ID x 384.00", SAE 100R2AT, SAE J517, SAE J516, SAE 100R17, ASTM B633 Class 2 Type 2	FLX 1/2" x 384" fl, 1/2" mpt x 1/2" mpt
100.	1994568C1	[1]	COUPLING, QUICK, FEM	CAS 1/2" fpt
100.	412733A1	[1]	PLUG	FLX dust, pioneer coupler 1/2" Superseded by part number: 18-40
100.	435414A1	[1]	QUICK MALE COUPLING,1/2"-14 NPTF	CAS Superseded by part number: 87335428
100.	7214	[1]	HYDRAULIC HOSE	FLX 3/8" x 340" fl, 1/2" mpt x 1/2" mpt
100.	87506420	[1]	HYDRAULIC HOSE	SAS 3/8" x 400" fl
100.	86592083	[1]	DUST CAP	ZED pioneer coupler - 1/2"
100.	51200108	[1]	HYDRAULIC HOSE,0.50" ID x 432.00", SAE 100R2AT, SAE J517, SAE J516, SAE 100R17, ASTM B633 Class 2 Type 2	FLX 1/2" x 432" fl, 1/2" mpt x 1/2" mpt
