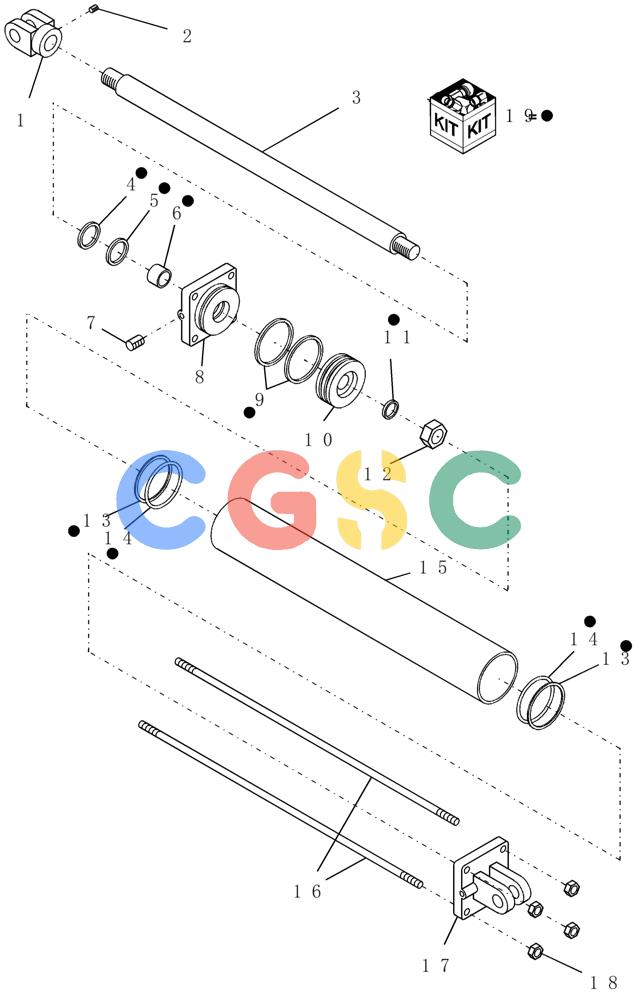

| 0. |
22445
|
[1] |
HYDRAULIC CYLINDER,34.92mm Rod, 254mm Stroke
|
FLX
4" x 10" mon 3000 psi no pins
|
| 1. |
87409387
|
[1] |
CLEVIS,1 -1/4" - 12
|
SAS
cylinder 1" pin 1 1/4"-12 rod Monarch #492652
|
| 2. |
87314803
|
[1] |
SET SCREW,Hex Skt, 3/8" - 16 x 1/2"
|
SAS
|
| 3. |
22607
|
[1] |
SHAFT
|
FLX
cylinder, Monarch 4" x 10" 10" 1 3/8" rod 1 1/8" -12 trd
|
| 2A. |
1029632
|
[1] |
PLUG
|
CON
nylon 5/16" od x 1/4" pln solid
|
| 4. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
WIPER
|
| 7. |
71100209
|
[1] |
PLUG,Hex Soc, 3/4"-16 ORB
|
BHB
Superseded by part number: 86590562
|
| 8. |
8652
|
[1] |
CAP
|
FLX
cylinder rod 4" 1 3/8" dia Monarch #492685
|
| 10. |
9673
|
[1] |
PISTON
|
FLX
4" Monarch psp seal psi (#494735)
|
| 12. |
232-46318
|
[1] |
LOCK NUT,1 1/8"-12, GC
|
CAS
Superseded by part number: 87652886
|
| 15. |
22605
|
[1] |
TUBE
|
FLX
cylinder, for 4" x 10" Monarch 467310
|
| 16. |
22606
|
[4] |
THREADED TIE-ROD
|
FLX
cylinder 4" x 10" Monarch 492340 5/8" x 10"
|
| 17. |
87409432
|
[1] |
HEAD
|
SAS
cylinder base 4" bore, 2, 3/4"-16 orb
|
| 18. |
86643107
|
[8] |
NUT,5/8" - 18, Gr 8
|
SAS
5/8"-18, G8
|
| 19. |
9674V2
|
[1] |
SEAL KIT
|
FLX
cylinder repair 4" Monarch 1 3/4" rod
|
