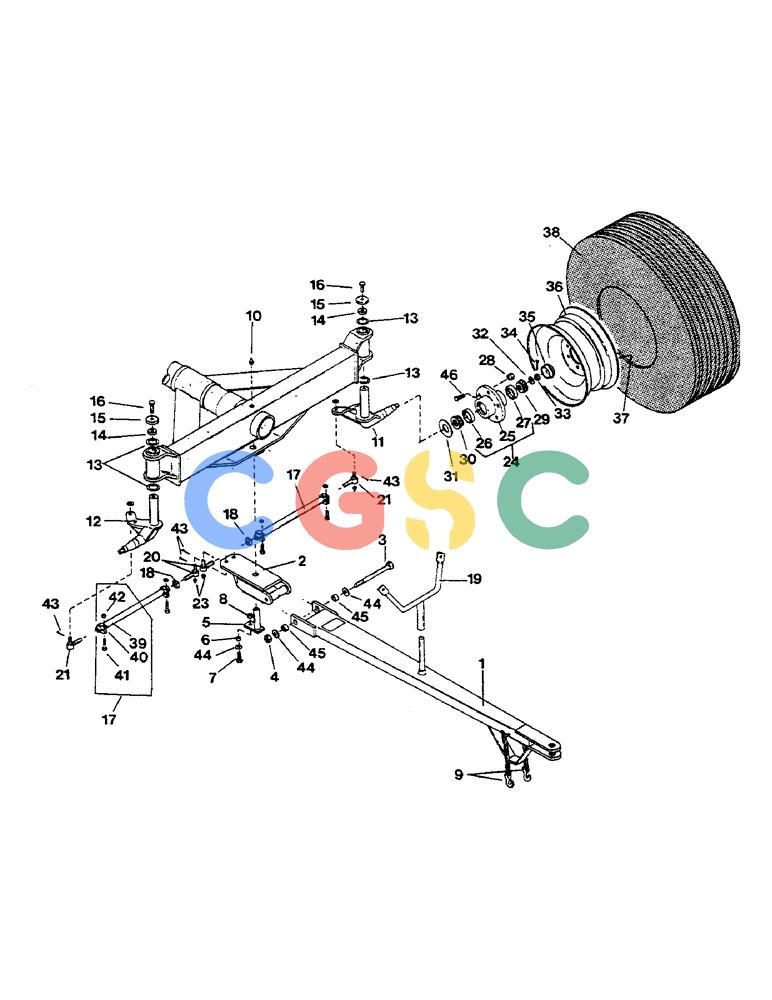

| 1. |
1016309
|
[1] |
POLE
|
CON
DRAWPOLE ASSEMBLY
|
| 2. |
1012459
|
[1] |
YOKE
|
CON
ASSEMBLY
|
| 3. |
1015897
|
[1] |
BOLT
|
CON
BOLT, hex, 1" x 10" Superseded by part number: 86622974
|
| 4. |
232-14416
|
[1] |
NUT,1"-8, GC
|
CAS
LOCKNUT, 1"
|
| 5. |
1012454
|
[1] |
PIN ASSY.
|
CON
PIN ASSEMBLY
|
| 6. |
1015892
|
[1] |
BUSHING
|
CAS
|
| 7. |
1011602
|
[1] |
BOLT
|
CON
BOLT Superseded by part number: 88044
|
| 8. |
232-1446
|
[1] |
NUT,3/8"-16, GC
|
CAS
NUT
|
| 9. |
1015051
|
[2] |
HOOK
|
CON
|
| 10. |
1011747
|
[1] |
FITTING
|
CON
lubrication
|
| 11. |
1016495
|
[1] |
SPINDLE
|
CON
AND ARM ASSEMBLY, LH
|
| 12. |
1016496
|
[1] |
SPINDLE
|
CON
AND ARM ASSEMBLY, RH
|
| 13. |
1012910
|
[4] |
THRUST WASHER
|
CON
|
| 14. |
1013081
|
[2] |
WASHER
|
CON
SPACER
|
| 15. |
1012662
|
[2] |
CAP
|
CON
king pin
|
| 16. |
1011601
|
[2] |
BOLT
|
CON
BOLT Superseded by part number: 88011
|
| 17. |
1014629
|
[2] |
ROD
|
CON
TIE ROD ASSEMBLY (Includes Ref. 39, 40, 41, 42)
|
| 18. |
1013288
|
[2] |
NUT,Sq, Jam, 11/16"-18, LH
|
CON
jam LH
|
| 19. |
1016557
|
[1] |
CRADLE
|
CON
ASSEMBLY Superseded by part number: 1030092
|
| 20. |
1014624
|
[2] |
SOCKET
|
CON
END ASSEMBLY, tie rod, LH
|
| 21. |
1014625
|
[2] |
SOCKET
|
CON
END ASSEMBLY, tie rod, RH
|
| 22. |
1011584
|
[4] |
WASHER
|
CAS
|
| 23. |
1013755
|
[4] |
FITTING, lubrication
|
|
| 24. |
1016175
|
[2] |
HUB
|
L
ASSEMBLY (W/ studs) Superseded by part number: 1023733
|
| 25. |
1016174
|
[1] |
HUB
|
CON
|
| 26. |
1012359
|
[1] |
CUP
|
CAS
Superseded by part number: 86512015
|
| 27. |
1012360
|
[1] |
CUP
|
CAS
- bower #67010 (CT & D #LM67010) Superseded by part number: 47923369
|
| 28. |
1016177
|
[6] |
WHEEL NUT
|
L
|
| 29. |
1012356
|
[1] |
ROLLER BEARING,1.25" ID x 0.625"
|
CAS
CONE Superseded by part number: 84356153
|
| 30. |
1012354
|
[1] |
ROLLER BEARING,1.625" ID x 2.09375" OD x 0.7656"
|
CAS
CONE Superseded by part number: 86512015
|
| 31. |
1013560
|
[1] |
SEAL
|
CAS
Superseded by part number: 62610C1
|
| 32. |
1012377
|
[1] |
WASHER
|
CAS
Superseded by part number: 826271
|
| 33. |
1012376
|
[1] |
SLOTTED NUT,3/4"-16, G5
|
CON
NUT Superseded by part number: 88886
|
| 34. |
1012375
|
[1] |
SPLIT PIN/SAFETY PIN
|
CON
COTTER PIN Superseded by part number: 80754
|
| 35. |
1012374
|
[1] |
HUB
|
CAS
CAP Superseded by part number: 87505175
|
| 36. |
1012382
|
[2] |
RIM
|
CAS
|
| 37. |
1012383
|
[2] |
VALVE STEM
|
CAS
Superseded by part number: 1018564
|
| 38. |
1012379
|
[2] |
TYRE/TIRE
|
CON
TIRE
|
| . . |
1016043
|
[2] |
TYRE/TIRE
|
CAS
TIRE, all weather implement, 16.5L x 16.1 - 6 ply
|
| 39. |
101426
|
[1] |
BUSHING, LARGE
|
A
TIE ROD Superseded by part number: K965258, K965258, NLS
|
| 40. |
1014627
|
[2] |
CLAMP
|
|
| 41. |
1011610
|
[2] |
BOLT
|
CON
BOLT Superseded by part number: 87972
|
| 42. |
1011577
|
[2] |
NUT,1/2"-13, G5
|
CON
Superseded by part number: 280431
|
| 43. |
1011984
|
[4] |
SPLIT PIN/SAFETY PIN
|
CON
COTTER PIN
|
| 44. |
1015896
|
[2] |
WASHER
|
CON
Superseded by part number: 87367
|
| 45. |
1015890
|
[2] |
TUBE
|
CAS
SPACER
|
| 46. |
1016176
|
[6] |
STEP BOLT
|
L
STUD, wheel
|
