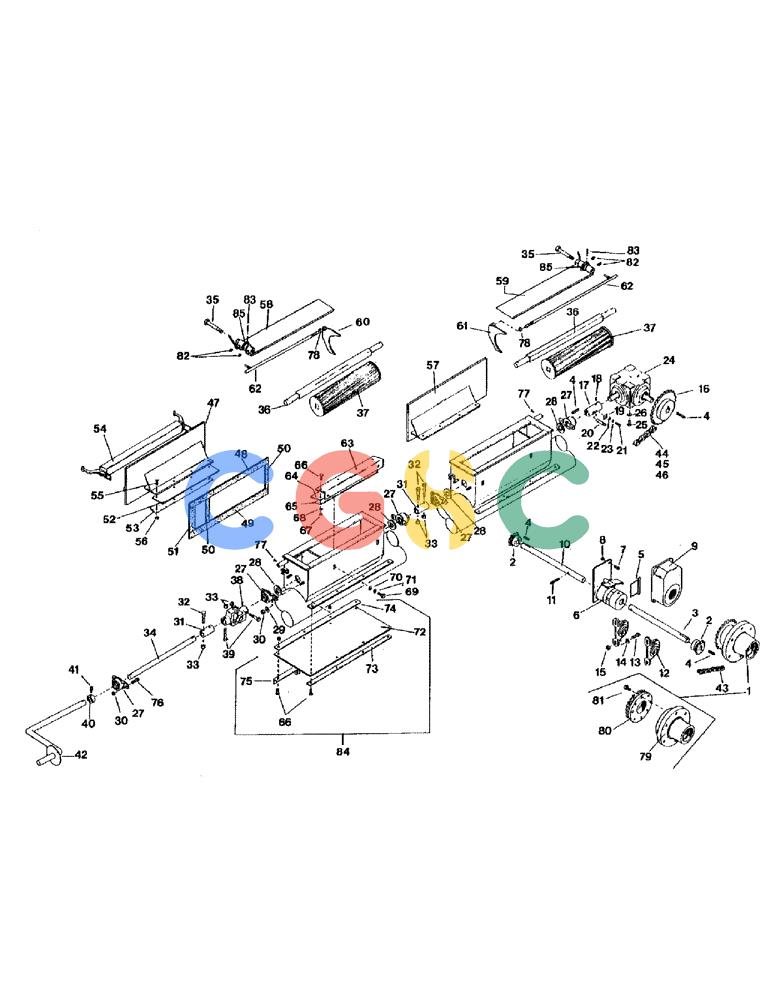

凯斯零件查询(AS1502) - CONCORD AIR SYSTEM (1/81-12/01) (32) - MODEL AS 1002 DRIVE TRAIN Case Agriculture

作者：广数供应链运营团队
浏览数：
时间：2025-01-24 22:00:55
Parts Contact me WhatsApp

工程机械零件图册查询

专业 覆盖挖掘机、装载机、推土机全系配件
立即查询
Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴 Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴
Pos. Part No Qty Parts name Comments
1. 1013712 [1]   HUB ASSY.   CON HUB & SPROCKET ASSEMBLY (Ref. 79,80, 81)
2. 1012976 [2]   DRIVE SPROCKET   L SPROCKET, 10 tooth
3. 1012933 [1]   BAR   CON SHAFT, sprocket drive, 1" dia. x 14 3/8"
4. 1012975 [4]   KEY   CAS 1/4" x 1/4" x 1 1/4" Superseded by part number: 86628576
5. 1013225 [1]   PIN   CAS LYNCH PIN
6. 1015055 [1]   CLUTCH   CON
7. 1013045 [1]   BOLT   CON shoulder 5/16" x 1/2"
8. 1011575 [1]   NUT,5/16"-18, G5   CAS hex, 5/16" Superseded by part number: 9635082
9. 1014236 [1]   DUST COVER, clutch
10. 1013559 [1]   SHAFT, sprocket drive, 1" dia. x 17-13/16"
11. 1012930 [1]   PIN   CAS ROLL PIN Superseded by part number: 87040910
12. 1012559 [4]   HOUSING ASSY.   CON PILLOW BLOCK Superseded by part number: 1021943, 86050277, 50591, 665721R1, 280497
13. 1011600 [8]   BOLT,Hex, 3/8" - 16 x 1", Gr 5   CAS BOLT, hex, 3/8" x 1" Superseded by part number: 88206
14. 1011583 [8]   WASHER   CAS flat, 3/8" Superseded by part number: 80664
15. 280136 [8]   NUT,3/8"-16, G8   WIN
16. 1012977 [1]   SPROCKET ASSY.   CON SPROCKET, gearbox, 26 tooth
17. 1015104 [1]   COUPLING   CON COUPLER, gearbox
18. 1013044 [1]   SET SCREW   CAS 1/4" x 1/4"
19. 1013221 [1]   STRIP   CAS CLIP, shear pin
20. 1013218 [1]   PIN   L Shear
21. 1013243 [1]   BOLT   CON BOLT, hex, 1/4" x 1/2" Superseded by part number: 88542
22. 87361 [1]   WASHER,0.28" ID x 0.62" OD x 0.07" Thk   NH
23. 1013297 [1]   LOCK WASHER   CAS LOCKWASHER, 1/4" Superseded by part number: 80682
24. 1014913 [1]   GEARBOX (See breakdown page 35)
25. 1011599 [4]   BOLT   CON BOLT, hex, 3/8" x 3/4", Gr. 5 Superseded by part number: 86500692
26. 1013043 [4]   WASHER   CAS flat, 3/8"
27. 1012986 [5]   BEARING ASSY,25.4mm ID   L BEARING, flange
28. 1012978 [4]   SEAL   L WASHER, rubber, 1" dia. x 2" O.D.
31. 1012996 [2]   TUBE,1.03" ID, 1.5" OD   CAS COUPLER, cup to shaft
32. 1011725 [4]   BOLT   CON BOLT, hex, 3/8" x 2" Superseded by part number: 88436
33. 231-4246 [6]   LOCK NUT,3/8"-16, GB   CAS NUT, LOCK, 3/8"-16, GB Superseded by part number: 87039402
34. 1015034 [1]   SHAFT, 1" dia. x 20 1/4"
35. 1013092 [2]   BOLT   CAS
36. 1015011 [2]   SHAFT   CON roll drive
37. 1012608 [2]   ROLL   L DRIVE ASSEMBLY
38. 1013301 [1]   JOINT   CAS UNIVERSAL JOINT
39. 1015174 [2]   BOLT   CON BOLT, hex, 3/8" x 2 1/2" Superseded by part number: 87936
40. 1013924 [1]   COLLAR   CON Superseded by part number: 1013418
41. 1013395 [1]   BOLT   CON BOLT, socket head, 5/16" Superseded by part number: 280699
42. 1015030 [1]   CRANK ASSEMBLY
43. 1012555 [1]   CHAIN (AG)   CAS CHAIN, #60 x 32" pitches Superseded by part number: 611362R91X
44. 1015049 [1]   CHAIN (AG)   CON CHAIN, #60 x 79" pitches
45. 1012557 [2]   LINK   CAS CONNECTING LINK #60
46. 1015050 [1]   LINK   CON HALF LINK, #60
47. 1016218 [1]   COVER ASSY   CAS FRONT COVER AND WIPER ASSEMBLY (Ref. 47-53, 55, 56)
. . 1016215 [1]   COVER   CAS FRONT COVER Superseded by part number: 1016218
48. 1016221 [2]   GASKET   CON Superseded by part number: 1018874
49. 1016222 [2]   GASKET   CON
50. 1016223 [4]   GASKET   CON GASKET
51. 1016224 [2]   GASKET   CON
52. 1013129 [2]   WINDSHIELD WIPER   CAS WIPER, rubber Superseded by part number: 1030985
53. 1013126 [2]   ANGLE   CON hold
54. 1016213 [2]   TOGGLE   CAS ASSEMBLY
55. 1013244 [8]   SCREW   CON flat head, #10 Superseded by part number: 1032095
56. 1011588 [8]   NUT,#10-24   CON hex, #10 Superseded by part number: 87304
57. 1016220 [1]   COVER ASSY   CAS REAR COVER & WIPER ASSEMBLY (Ref. 48-53, 55, 56)
. . 1016217 [1]   COVER ASSY   CON REAR COVER Superseded by part number: 1016220
58. 1015082 [1]   DOOR ASSY.   CON FRONT METERING DOOR
59. 1015083 [1]   DOOR ASSY.   CON REAR METERING DOOR Superseded by part number: 1013346, 1027042, 1013092, 438-11622, 88775
60. 1015678 [1]   PLATE   CON FRONT FLOW CONTROL Superseded by part number: 1032088
61. 1015679 [1]   PLATE   CON REAR FLOW CONTROL Superseded by part number: 1032089
62. 1015419 [2]   TIE-ROD   CON ROD ASSEMBLY Superseded by part number: 87305, 1013859
63. 1012955 [2]   DEFLECTOR   CAS PLATE
64. 1013128 [2]   DEFLECTOR   L RUBBER DEFLECTOR
65. 1013127 [2]   STRIP   CAS PLATE
66. 1011595 [24]   BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd   CON BOLT, hex, 1/4" x 3/4", Gr. 5 Superseded by part number: 9707580
67. 1013240 [24]   LOCK NUT,1/4"-20, GB   CON LOCKNUT, hex, 1/4" Superseded by part number: 86625061
70. 1011828 [4]   WASHER   CAS
71. 1011586 [4]   LOCK WASHER   CAS LOCKWASHER, 3/8" Superseded by part number: 80680
72. 1013176 [2]   COVER   L CLEANOUT DOOR
73. 1013177 [2]   SUPPORT   CAS STRIP, narrow
74. 1013178 [2]   STRIP   CAS wide
75. 1013284 [2]   ANGLE   CAS LATCH ANGLE
76. 1011601 [2]   BOLT   CON BOLT, hex, 3/8" x 1 1/4" Superseded by part number: 88011
77. 1013895 [2]   THUMB SCREW   CAS THUMBSCREW
78. 1011591 [2]   NUT,Jam, 1/2"-13, G5   CON hex, 1/2" - jam Superseded by part number: 86632558
79. 1013524 [1]   HUB ASSY.   CON HUB Superseded by part number: 1013465
80. 1013713 [1]   FLANGE ASSY   CON FLANGE AND SPROCKET
82. 86636814 [4]   LUBE NIPPLE,1/4"-28 x .52" lg   GI NIPPLE, LUBE, 1/4"-28 x .52" lg Superseded by part number: 88775
83. 100343 [2]   ROLL PIN
84. 1013283 [2]   DOOR ASSY.   CAS CLEANOUT DOOR ASSEMBLY (Includes 66, 72, 73, 74, 75)
85. 1013346 [2]   PINION   CAS
