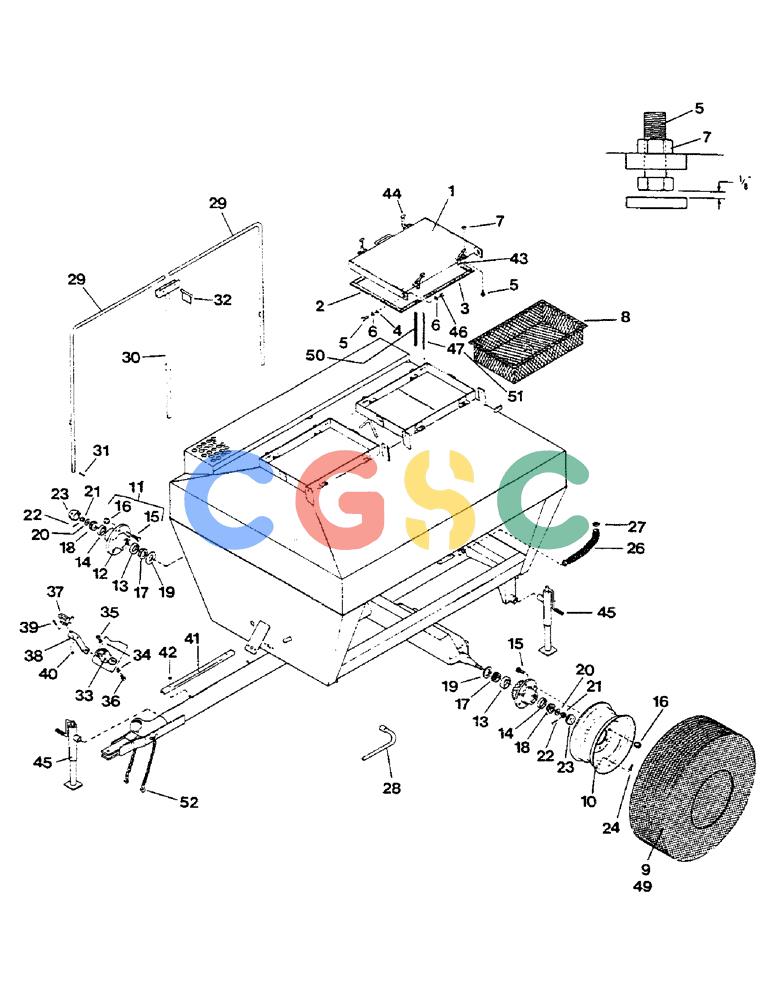

| 1. |
1015904
|
[2] |
COVER ASSEMBLY
|
|
| 2. |
1015906
|
[4] |
GASKET
|
L
cover
|
| 3. |
1015907
|
[4] |
GASKET
|
L
cover
|
| 4. |
1015941
|
[4] |
SPACER, pivot
|
|
| 5. |
1011609
|
[12] |
BOLT
|
CON
BOLT, hex, 1/2" x 1 1/2 Superseded by part number: 9706716
|
| 6. |
1014443
|
[8] |
WASHER
|
CAS
Superseded by part number: 80700
|
| 7. |
1011591
|
[8] |
NUT,Jam, 1/2"-13, G5
|
CON
jam, 1/2" Superseded by part number: 86632558
|
| 8. |
1015067
|
[2] |
GRILLE
|
CON
GRILL ASSEMBLY Superseded by part number: 1026562
|
| 9. |
1013463
|
[2] |
TYRE/TIRE
|
CAS
TIRE, implement, 16.5L x 16.1 - 10 ply (Standard)
|
| 10. |
1013464
|
[2] |
RIM
|
CAS
16.1
|
| 11. |
1013465
|
[1] |
CAP ASSY.
|
CON
HUB ASSEMBLY (Includes 12 - 16)
|
| 12. |
1013466
|
[1] |
HUB
|
|
| 13. |
1013467
|
[2] |
BEARING, CUP,3.54" OD x 0.7283"
|
CON
CUP, inner, JLM 506810 Superseded by part number: 625743C1
|
| 14. |
1012359
|
[2] |
CUP
|
CAS
outer (Timken # LM501310) Superseded by part number: 86512015
|
| 15. |
1013469
|
[16] |
BOLT
|
CON
wheel, 5/8" UNF
|
| 16. |
1013470
|
[16] |
NUT
|
CAS
beveled 5/8" UNF
|
| 17. |
1013468
|
[2] |
BEARING, ROLLER,2.4" ID x 0.9055"
|
CON
CONE, JLM 506849 Superseded by part number: 648861
|
| 18. |
1012354
|
[2] |
ROLLER BEARING,1.625" ID x 2.09375" OD x 0.7656"
|
CAS
CONE, LM501349 Superseded by part number: 86512015
|
| 19. |
1013471
|
[2] |
SEAL
|
CAS
Superseded by part number: A178381
|
| 20. |
1013475
|
[2] |
WASHER
|
CAS
flat, 1-1/16" I.D. x 2 1/8" O.D. x 1/4"
|
| 21. |
425-1316
|
[2] |
NUT,1"-14, G5
|
CAS
NUT, slotted, 1" Superseded by part number: 86020752
|
| 22. |
1013473
|
[2] |
ANGLE BAR
|
CON
COTTER PIN, 3/16" x 2" Superseded by part number: 87400
|
| 23. |
1013474
|
[2] |
CAP
|
CON
HUB CAP Superseded by part number: 51200087
|
| 24. |
1012383
|
[2] |
VALVE STEM
|
CAS
Superseded by part number: 1018564
|
| 26. |
1015045
|
[2] |
HOSE
|
CON
|
| 27. |
1013134
|
[4] |
CLAMP
|
CAS
hose Superseded by part number: 84674
|
| 28. |
1013281
|
[1] |
TOOL
|
CAS
WRENCH
|
| 29. |
1015064
|
[2] |
RAIL
|
|
| 30. |
1013151
|
[1] |
HOUSING
|
CAS
POST, center
|
| 31. |
1012930
|
[3] |
PIN
|
CAS
ROLL PIN Superseded by part number: 87040910
|
| 32. |
1013225
|
[2] |
PIN
|
CAS
LYNCH PIN
|
| 33. |
1012986
|
[1] |
BEARING ASSY,25.4mm ID
|
L
BEARING, flange
|
| 34. |
1011583
|
[2] |
WASHER
|
CAS
flat Superseded by part number: 80664
|
| 35. |
280136
|
[2] |
NUT,3/8"-16, G8
|
WIN
|
| 36. |
1011601
|
[2] |
BOLT
|
CON
BOLT, hex, 3/8" x 1 1/4" Superseded by part number: 88011
|
| 37. |
1012475
|
[1] |
COUNTER
|
CON
acre
|
| 38. |
1013922
|
[1] |
BRACKET
|
CON
counter
|
| 39. |
1013926
|
[2] |
SCREW
|
CON
#5 x 3/8"
|
| 40. |
280597
|
[2] |
NUT,#5-40
|
GI
#5
|
| 41. |
1016181
|
[1] |
ANGLE, wire protector
|
|
| 42. |
1011587
|
[6] |
NUT,1/4"-20, G5
|
CON
hex, 1/4" Superseded by part number: 7770
|
| 43. |
1015196
|
[4] |
U-BOLT
|
L
toggle
|
| 44. |
1013286
|
[4] |
TOGGLE
|
CON
TOGGLE ASSEMBLY
|
| 45. |
1015103
|
[2] |
STAND
|
CAS
JACK ASSEMBLY Superseded by part number: 1016961
|
| 46. |
1011097
|
[4] |
NUT,1/2"-13, G5
|
CAS
hex, 1/2" Superseded by part number: 280431
|
| 47. |
1015928
|
[2] |
CHAIN
|
CARRIER
|
| 49. |
1016042
|
[2] |
TYRE/TIRE
|
CAS
TIRE, all weather implement (Optional)
|
| 50. |
1016490
|
[2] |
HOSE,1.00" ID x 26.75"
|
CON
- Chain 1.00" ID x 26.75"
|
| 51. |
1016491
|
[2] |
CHAIN REPAIR LINK
|
|
| 52. |
1015051
|
[2] |
HOOK
|
CON
|
