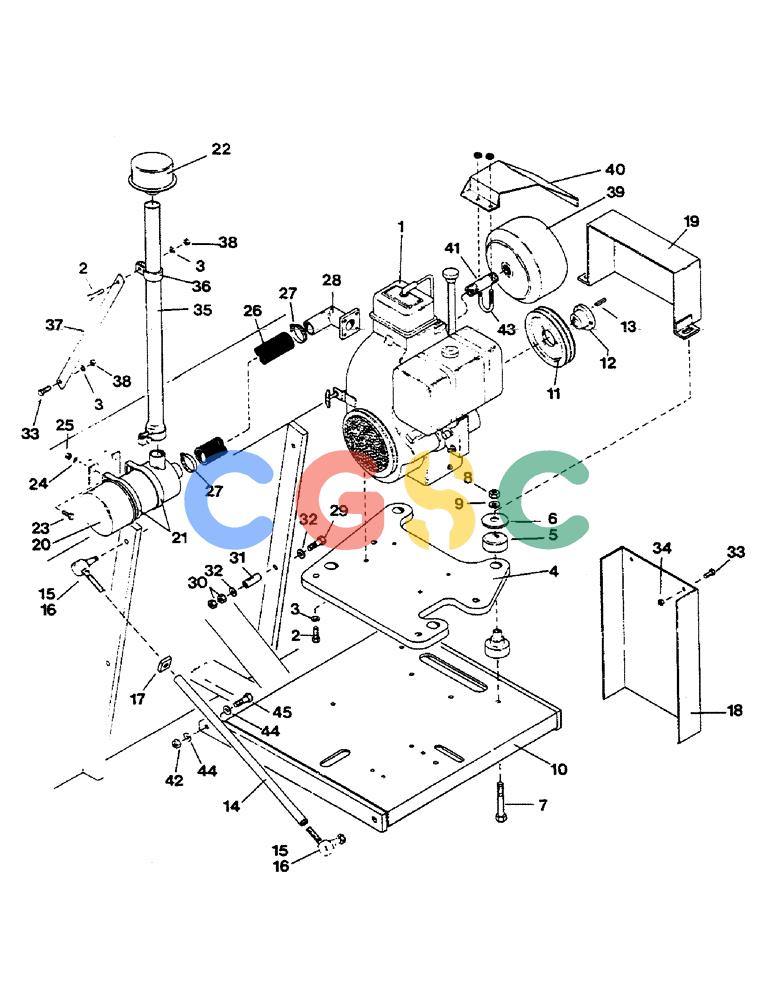

| 1. |
1015113
|
[1] |
ENGINE (Telumselt Model OH180)
|
|
| 2. |
1011602
|
[6] |
BOLT
|
CON
BOLT, hex, 3/8" x 1 1/2" Superseded by part number: 88044
|
| 3. |
1011586
|
[6] |
LOCK WASHER
|
CAS
LOCKWASHER, 3/8" Superseded by part number: 80680
|
| 4. |
1014736
|
[1] |
LARGE PLATE
|
CAS
PLATE, engine mounting
|
| 5. |
1014739
|
[4] |
ISOLATOR
|
CAS
150 lbs.
|
| 6. |
1014741
|
[4] |
WASHER
|
CAS
snubbing
|
| 7. |
1015117
|
[4] |
BOLT, hex, 5/8" x 4"
|
|
| 8. |
1011578
|
[4] |
NUT,5/8"-11, G5
|
CON
hex, 5/8" Superseded by part number: 280374
|
| 9. |
1011813
|
[4] |
LOCK WASHER
|
CON
LOCKWASHER, 5/8" Superseded by part number: 86729275
|
| 10. |
1016354
|
[1] |
PLATFORM
|
CAS
PLATE, platform
|
| 11. |
1015076
|
[1] |
SHEAVE
|
CON
driver, 5.6" O.D.
|
| . . |
1014863
|
[1] |
SHEAVE
|
CAS
driver - 6.90" O.D.
|
| 12. |
1015077
|
[1] |
HUB, taper lock
|
|
| 13. |
1012975
|
[1] |
KEY
|
CAS
1/4" x 1/4" x 1 1/4" Superseded by part number: 86628576
|
| 14. |
1012200
|
[2] |
ROD
|
CON
TIE ROD
|
| 15. |
1012196
|
[2] |
END
|
CAS
TIE ROD END, LH
|
| 16. |
1012197
|
[2] |
END
|
CAS
TIE ROD END, RH
|
| 17. |
CON1013289
|
[2] |
NUT,Sq, Jam, 11/16"-18
|
CON
jam, RH
|
| 18. |
1014879
|
[1] |
BELT
|
CAS
GUARD, belt (lower)
|
| 19. |
1015116
|
[1] |
GUARD, belt (upper)
|
|
| 20. |
1015093
|
[1] |
AIR CLEANER (w/element)
|
|
| . . |
1015664
|
[1] |
FILTER
|
CON
ELEMENT, air
|
| 21. |
1015092
|
[2] |
BAND, mounting
|
|
| 22. |
1015096
|
[1] |
CAP
|
CON
air inlet
|
| 23. |
1011595
|
[4] |
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
|
CON
BOLT, hex, 1/4" x 3/4" Superseded by part number: 9707580
|
| 24. |
100979
|
[4] |
SELECTOR
|
CON
Superseded by part number: 87361, 87361, A100979
|
| 25. |
1011587
|
[4] |
NUT,1/4"-20, G5
|
CON
hex, 1/4" Superseded by part number: 7770
|
| 26. |
1015045
|
[1] |
HOSE
|
CON
1 3/4" I.D. x 18 3/4"
|
| 27. |
1013134
|
[2] |
CLAMP
|
CAS
hose Superseded by part number: 84674
|
| 28. |
1015109
|
[1] |
FLANGE, elbow
|
|
| 29. |
1015995
|
[2] |
BOLT
|
CON
BOLT, hex, 1/2" x 2 1/2" Superseded by part number: 20987
|
| 30. |
231-4248
|
[1] |
NUT,1/2"-13, GB
|
CAS
NUT, hex, 1/2" Superseded by part number: 87333862
|
| 31. |
1015994
|
[1] |
BUSHING
|
CAS
|
| 32. |
1011584
|
[2] |
WASHER
|
CAS
|
| 33. |
1011600
|
[2] |
BOLT,Hex, 3/8" - 16 x 1", Gr 5
|
CAS
BOLT, hex, 3/8" x 1" Superseded by part number: 88206
|
| 34. |
1013428
|
[2] |
NUT, hex, 3/8"
|
|
| 35. |
1015952
|
[1] |
EXTENSION
|
CON
AIR STACK EXTENSION
|
| 36. |
1016190
|
[2] |
CLAMP
|
CON
|
| 37. |
1016192
|
[1] |
STRAP BRACE
|
|
| 38. |
280136
|
[2] |
NUT,3/8"-16, G8
|
WIN
|
| 39. |
1017753
|
[1] |
MUFFLER
|
|
| 40. |
1017745
|
[1] |
HEAT SHIELD ASSEMBLY
|
|
| 41. |
107754
|
[1] |
NIPPLE
|
|
| 42. |
1011620
|
[1] |
NUT,3/4"-10, G5
|
CON
hex, 3/4" Superseded by part number: 280954
|
| 43. |
1017752
|
[1] |
CLAMP
|
CON
|
| 44. |
1012634
|
[2] |
WASHER
|
CAS
Superseded by part number: 87381
|
| 45. |
1016598
|
[1] |
BOLT
|
CAS
hex, 3/4" x 2 1/2" Superseded by part number: 9706701
|
